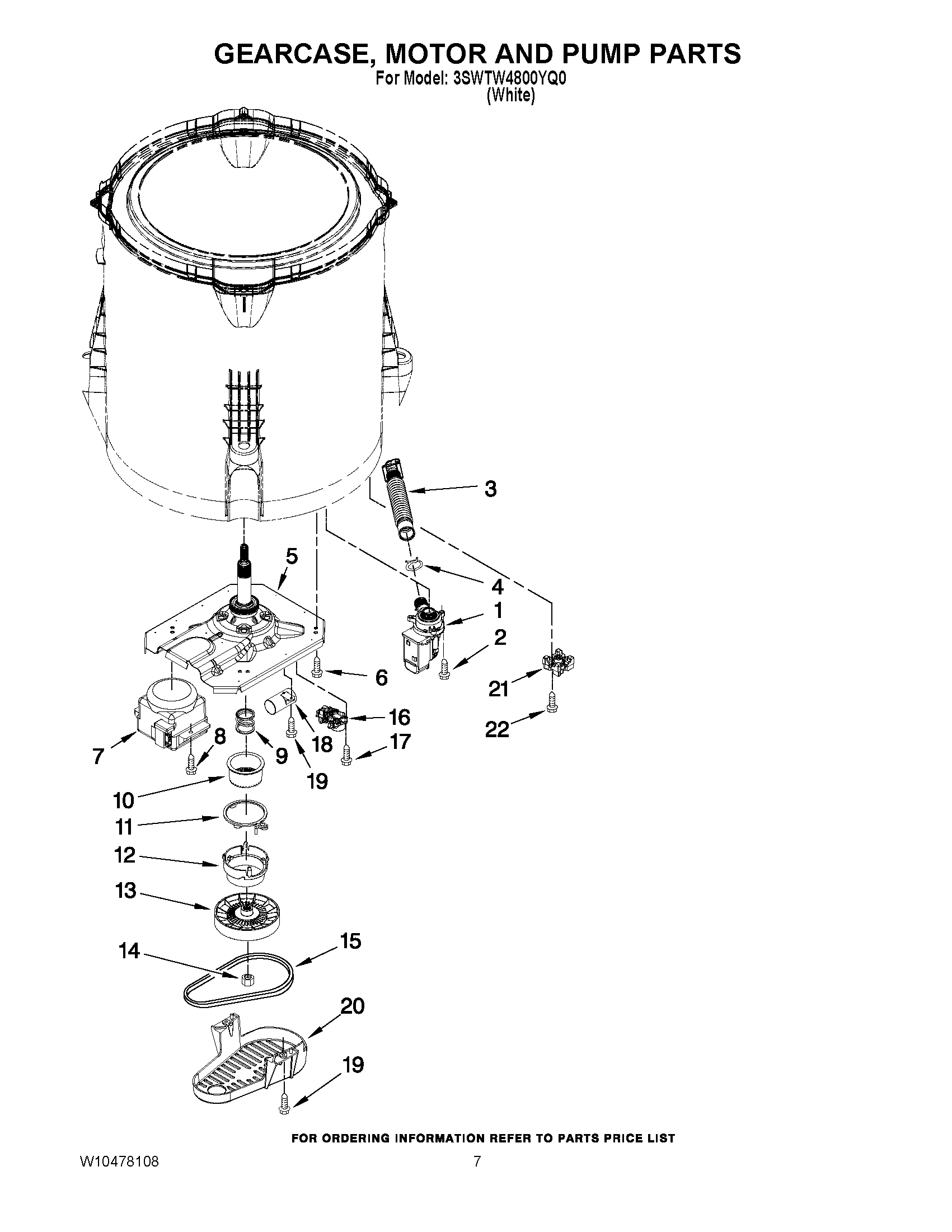

3SWTW4800YQ0 04 – GEARCASE, MOTOR AND PUMP PARTS

Products

Position	Product
1	WPW10292579 Whirlpool Water Pump
2	WPW10004910 Whirlpool Screw
3	W10899966 Whirlpool Hose Assembly
4	WP285655 Whirlpool Hose Clamp
5	GEARCASE (DW1)
6	WPW10249633 Whirlpool Screw
7	W11039788 Whirlpool Motor Drive
8	W11685857 Whirlpool Screw Assembly
9	SPRING, SPLUTCH
10	W10721967 Whirlpool Washer Cam Kit
11	CAM RING, SPLUTCH
12	CAM, SPLUTCH
13	PULLEY
14	W10759923 Whirlpool Washer Pulley Nut
15	WPW10006388 Whirlpool Belt
16	W11336577 Whirlpool Actuator
17	W11596033 Whirlpool Microwave Screw
18	W10804679 Whirlpool Capacitor
19	W11573574 Whirlpool Screw
20	WPW10427633 Whirlpool Belt Shield
21	COUNTER WEIGHT
