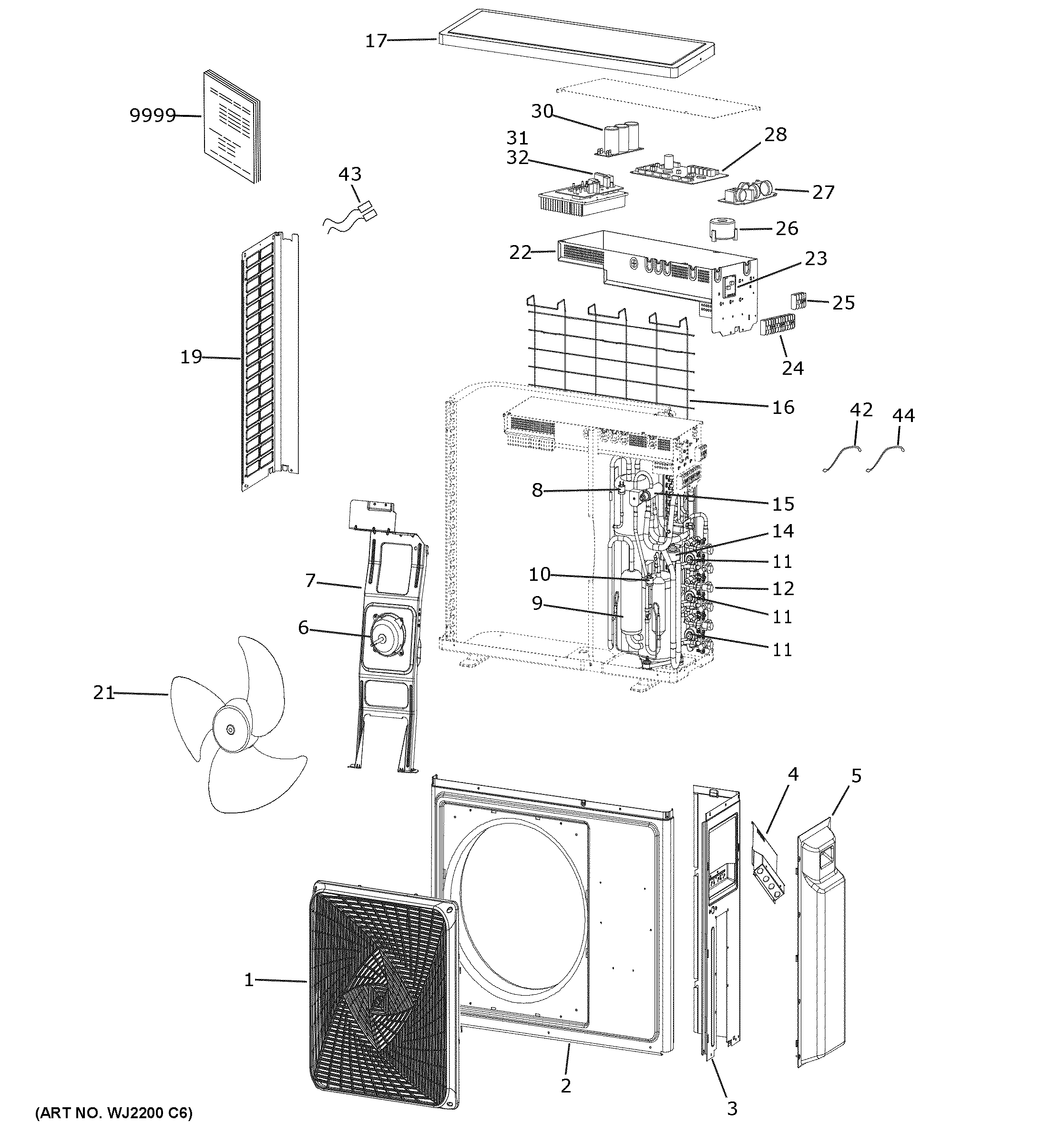

3U24GS1ERE ROOM AIR CONDITIONER

Products

Position	Product
1	OUTLET GRILLE
2	WJ71X25933 GE Front Panel
3	WJ71X23720 GE Right Side Panel
4	TERMINAL BLOCK GUARD
5	WJ76X24365 GE Valve Cover
6	WJ94X23718 GE Outdoor Fan Motor
7	WJ65X23712 GE Outdoor Fan Motor Bracket
8	WJ26X23722 GE Low Pressure Switch
9	WJ98X23731 GE Compressor
10	WJ27X22646 GE High Pressure Switch
11	WJ26X22674 GE Expansion Valve Body
12	WJ26X24364 GE Evaporator Coil
14	WJ53X23724 GE Outdoor EEV Coil Assembly
15	WJ53X23567 GE 4-Way Valve
16	WJ71X23340 GE Grille Rear
17	TOP PANEL
19	LEFT SIDE PANEL
21	WJ73X23728 GE Outdoor Fan Blade
22	WJ26X23726 GE Electrical Box
23	WJ26X23716 GE Service Control Power Board
24	WJ26X23730 GE Indoor Terminal Block
25	WJ26X23729 GE Supply Terminal Block
26	WJ26X23727 GE Reactor
27	WJ26X23717 GE Filter Power Control Board
28	WJ26X23715 GE Outdoor Control Power Board
30	WJ20X23721 GE Power Control Board Capacitor
31	WJ26X23719 GE Inverter Driver Module
32	WJ96X24080 GE Power Board
42	VAPOR PIPE TEMPERATURE SENSOR
43	WJ26X24077 GE Liquid Pipe Sensor
44	WJ26X24078 GE Sensor
9999	PM INSTALL INSTRUCTIONS
