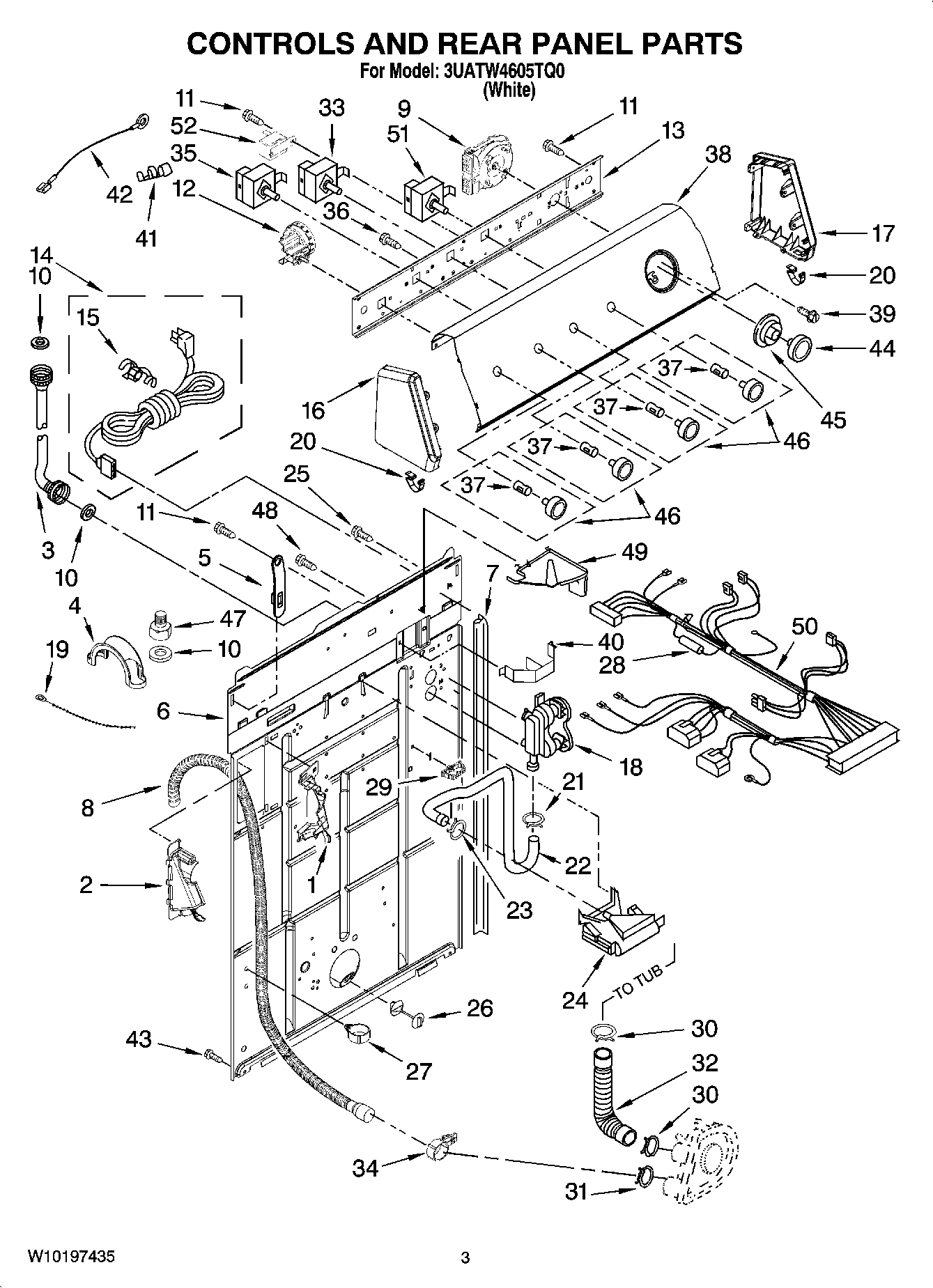

3UATW4605TQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	MAY 8541669
2	MAY 8541658
3	Hose, Water Inlet (Red)
3	Hose, Water Inlet (Blue)
4	U-Bend
5	Strap, Console
6	MAY 8318015
7	MAY 62747
8	Drain Hose Assembly (Includes Items 22, 28 & 32)
9	MAY W10106010
10	ACCESSORY PARTS, WASHER, INLET HOSE
11	SCREW,8-18 X 3/8
12	MAY 8577845
13	MAY 8579677
14	MAY W10111552
15	MAY 8559337
16	MAY 8579686
17	MAY 8579685
18	MAY 3360397
19	MAY 3347868
20	MAY 8312709
21	MAY 301958
22	MAY 8541607
23	MAY 370450
24	Thermister, Inlet
25	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
26	MAY 8519200
27	MAY 8541667
28	Fuse (In Harness)
29	MAY 3352944
30	Clamp, Hose (2)
31	MAY 8317496
32	Hose & Clamp Assembly
33	Switch, Rotary
34	MAY 8541668
35	MAY W10168256
36	SCREW
37	CLIP, SPRING
38	MAY W10115400
39	SCREW
40	Clip, Harness & Pressure Switch
41	MAY 357572
42	MAY 3398893
43	Screw, Mixing Valve Mounting
44	MAY W10110061
45	MAY W10110062
46	Knob, Control (1) (White)
47	Adapter, Water Inlet Hose
48	SCREW
49	MAY 8539874
50	MAY W10111600
51	MAY W10168257
52	MAY 3952439
