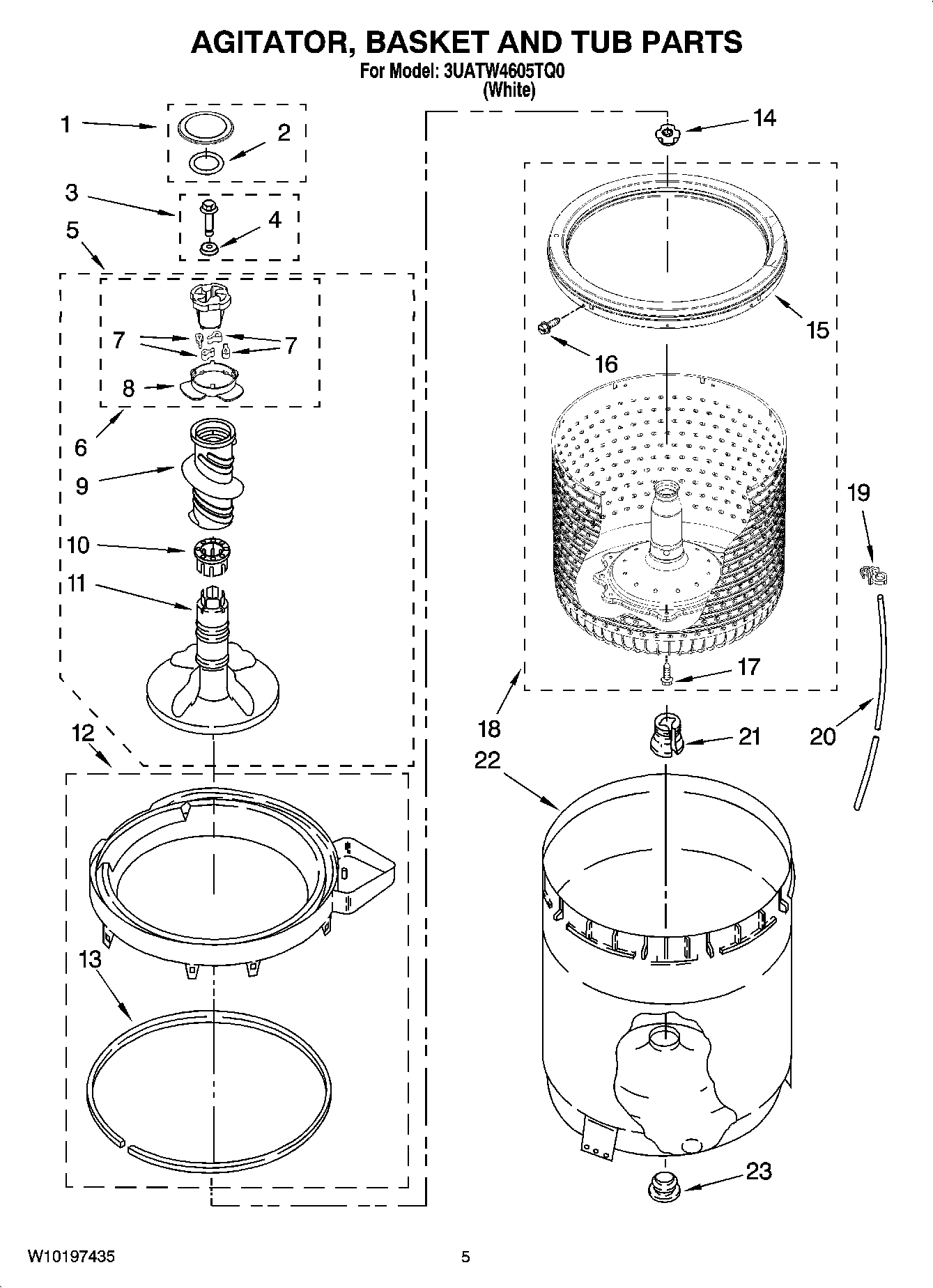

3UATW4605TQ0 03 – AGITATOR, BASKET AND TUB PARTS

3UATW4605TQ0 03 – AGITATOR, BASKET AND TUB PARTS

Written by

in

3UATW4605TQ0 03 – AGITATOR, BASKET AND TUB PARTS

Products

PositionProduct
1MAY 8565983
2MAY 358912
3Screw & Washer
4MAY 3949550
5Agitator(Complete)
6Cam, Driven
7Dog, Agitator (4)
8BEARING, CAM
9MAY 3360824
10SPACER, THRUST
11MAY W10093670
12Tub Ring
13MAY 3976308
14MAY 21366
15MAY W10116946
16MAY W10137113
17MAY W10112537
18MAY W10042080
19Clip, Harness (1)
20MAY 3347780
21Block, Drive
22MAY 63849
23MAY 383727
