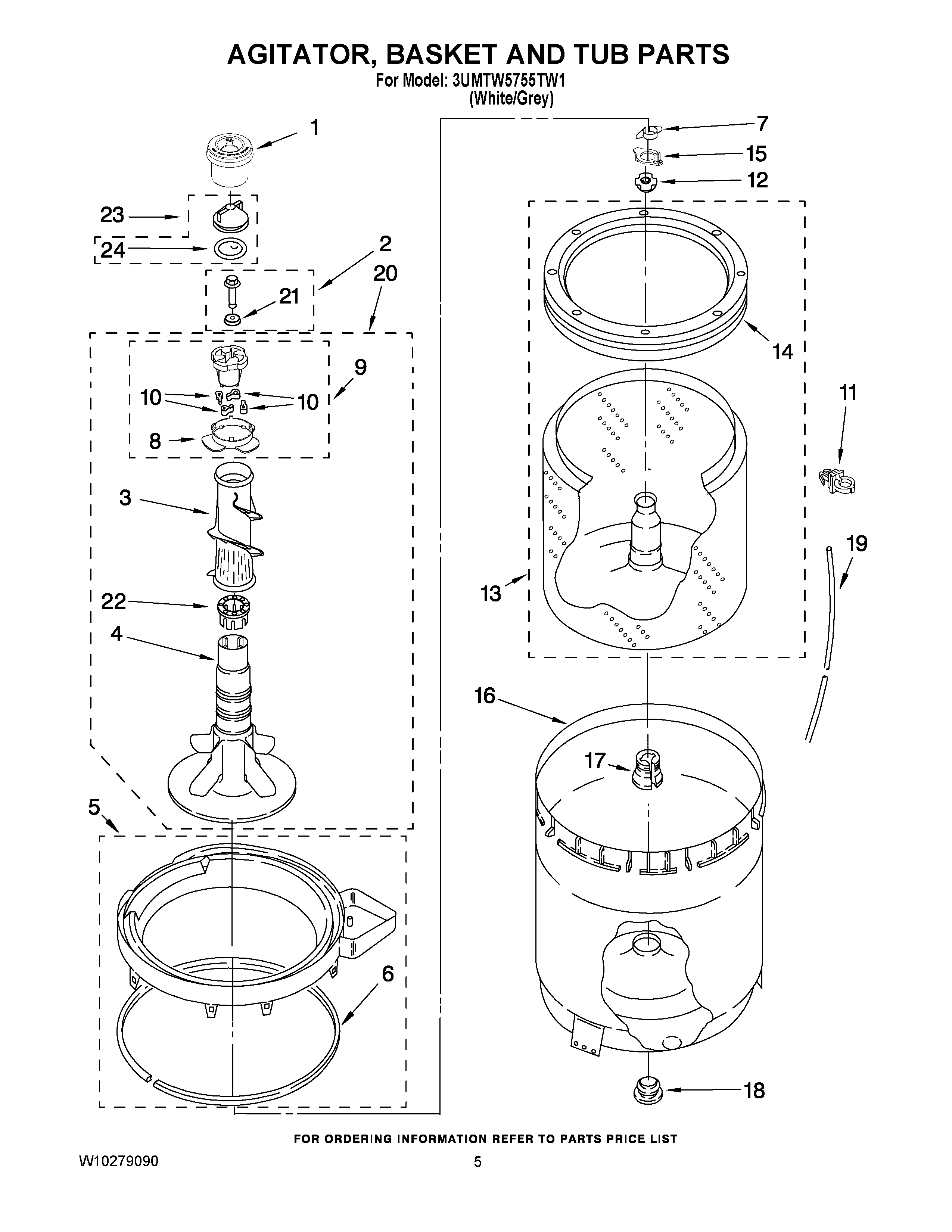

3UMTW5755TW1 03 – AGITATOR, BASKET AND TUB PARTS
Written by
in
3UMTW5755TW1 03 – AGITATOR, BASKET AND TUB PARTS
Products
Position
Product
1
MAY 8565968
2
Screw & Washer
3
MAY 3349019
4
MAY W10110020
5
Tub Ring
6
MAY 3976308
7
MAY 3354845
8
BEARING, CAM
9
MAY 3363663
10
Dog, Agitator (4)
11
Clip, Harness (1)
12
MAY 21366
13
MAY 8526016
14
Ring, Balance
15
MAY 8543666
16
MAY 63849
17
Block, Drive
18
MAY 383727
19
MAY 3347780
20
MAY W10093672
21
MAY 3949550
22
SPACER, THRUST
23
MAY 3354733
24
MAY W10072840
←
