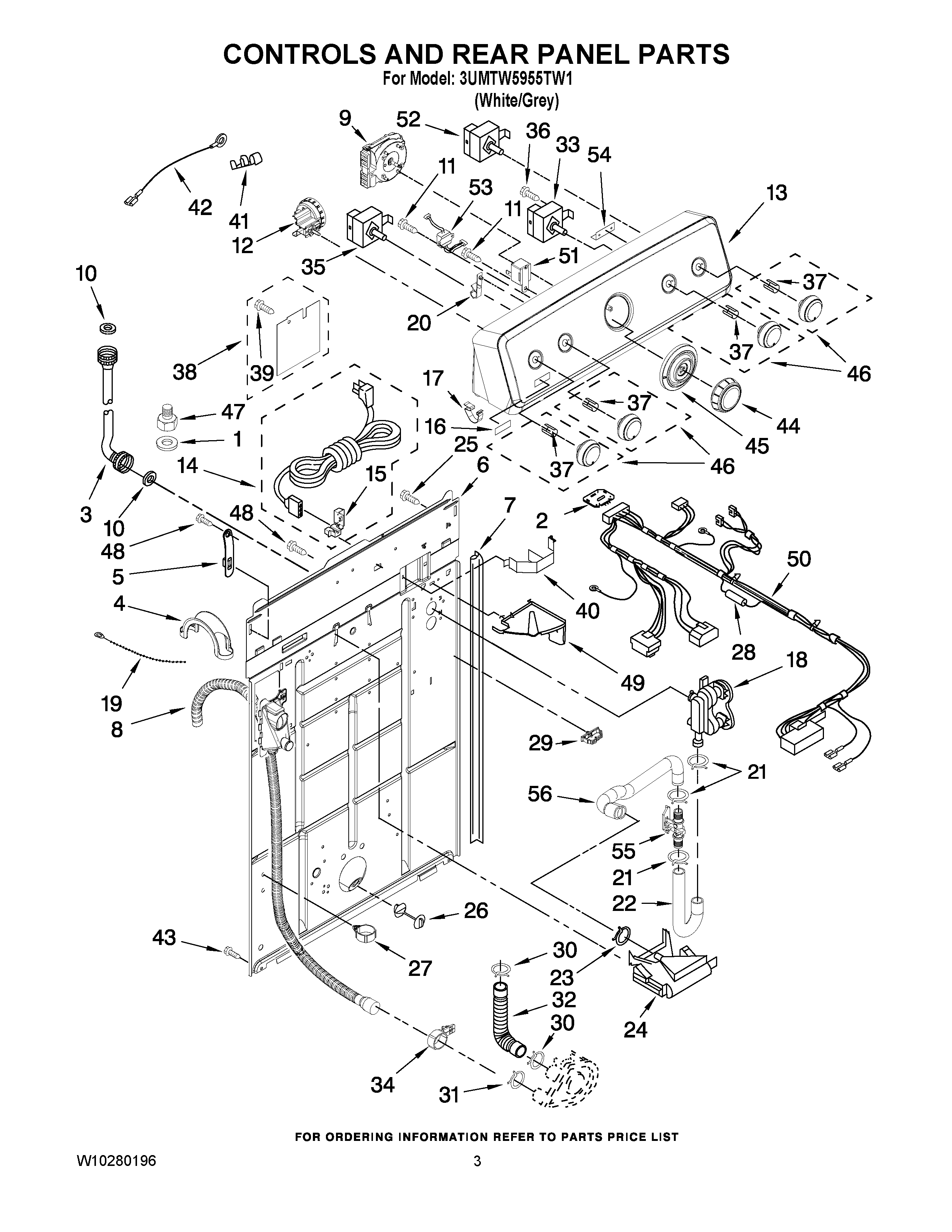

3UMTW5955TW1 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	MISCELLANEOUS PARTS BAG, WASHER, HOSE ADAPTER
2	MAY W10110247
3	Hose, Water Inlet (Red)
3	Hose, Water Inlet (Blue)
4	U-Bend
5	Strap, Console
6	MAY 8318015
7	MAY 62747
8	MAY W10138068
9	MAY W10222221
10	ACCESSORY PARTS, WASHER, HOSE
11	SCREW,8-18 X 3/8
12	MAY 8577842
13	MAY W10115402
14	MAY W10111552
15	MAY 8559337
16	Badge
17	MAY 8312709
18	MAY 3360397
19	MAY 3347868
20	MAY 8317975
21	MAY 370451
22	MAY 3357319
23	MAY 371503
24	Thermister, Inlet
25	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
26	MAY 8519200
27	MAY 8541667
28	Fuse (In Harness)
29	MAY 3352944
30	Clamp, Hose (2)
31	MAY 8317496
32	Hose & Clamp Assembly
33	MAY W10150079
34	MAY 8541668
35	MAY W10168360
36	SCREW
37	CLIP, SPRING
38	MAY W10093726
39	RETAINER, PUSH-IN
40	Clip, Harness & Pressure Switch
41	MAY 357572
42	MAY 3398893
43	Screw, Mixing Valve Mounting
44	Knob, Timer (Washer)
45	Dial, (Washer)
46	Knob, Control (3)
47	Adapter, Water Inlet Hose
48	SCREW
49	MAY 8539874
50	MAY W10183682
51	MAY 3952439
52	MAY W10168264
53	MAY 3407160
54	MAY 8316039
55	MAY 3352282
56	Hose, Sensor (Uppper)
