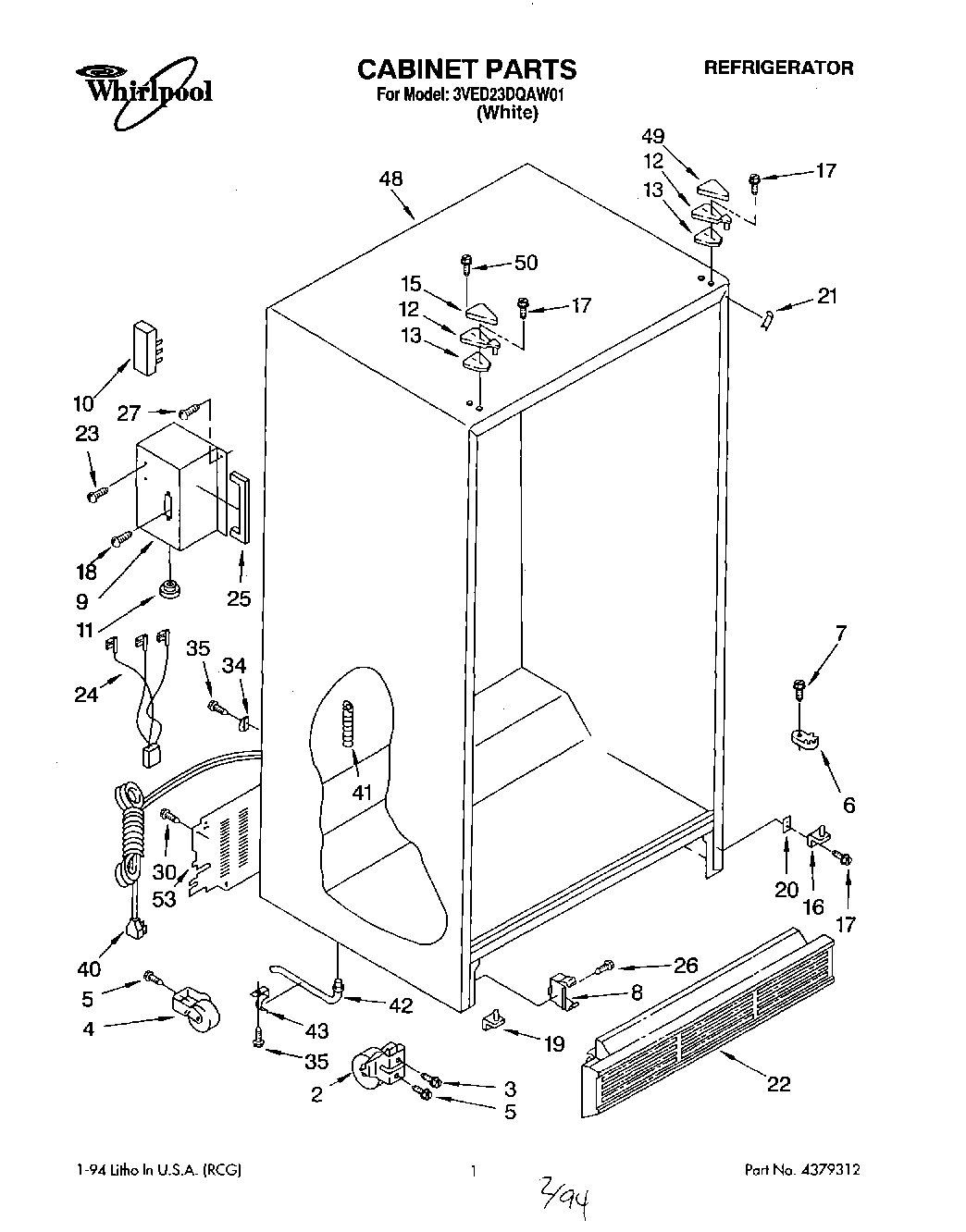

3VED23DQAW01 01 – CABINETadmin2025-04-26T12:26:08+00:003VED23DQAW01 01 – CABINET ProductsPositionProduct2Front Roller (2)3Screw, 5/16-24 x 1-1/44WPW10250570 Whirlpool Refrigerator Cabinet Roller5Screw, 1/4-28 x 1/2 (2)6WPW10329686 Whirlpool Door Cam Black7WP489483 Whirlpool Screw8WP2155013 Whirlpool Refrigerator Clip9Enclosure, Term.10Terminal Block11Bushing12WP2196046 Whirlpool Refrigerator Door Hinge13Shim, Hinge Top15WP1129262 Whirlpool Refrigerator Cover16Hinge Bottom (R.H) (Chrome)17WP999367 Whirlpool Refrigerator Screw18WPW10272364 Whirlpool Refrigerator Screw19Hinge Bottom (L.H) (Chrome)20Shim, Bottom Hinge21Filler, Wrapper (White)22Grille (White)23Screw24Wiring Assembly, Terminal Block25Gasket26WP489478 Whirlpool Refrigerator Screw27WP250830 Whirlpool Refrigerator Screw34489348 Whirlpool Refrigerator Tube Clamp35WP489464 Whirlpool Refrigerator Screw40Service Cord41W11566763 Whirlpool Fitting42WP1108438 Whirlpool Refrigerator Extension43WP1108439 Whirlpool Refrigerator Clip48Cabinet (Not A Serviceable Part)491119787 Whirlpool Refrigerator Hinge Cover50Screw53Cover, Unit
