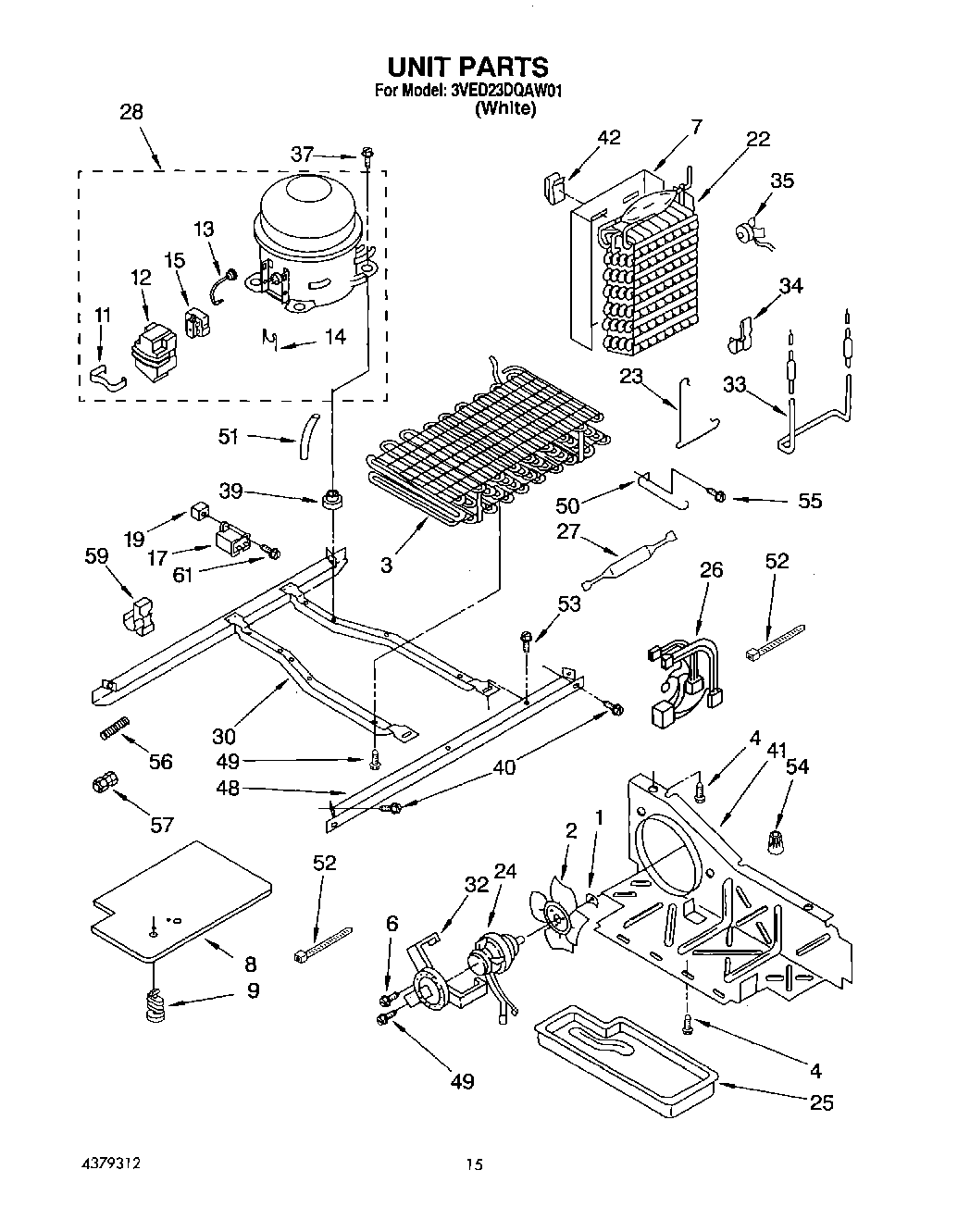

3VED23DQAW01 09 – UNIT

Products

PositionProduct
1WP486692 Whirlpool Refrigerator Nut
2Fan, Blade
3Condenser Assembly
4WP489464 Whirlpool Refrigerator Screw
6681390 Whirlpool Refrigerator Screw
7Heat Shield
8Cover-Unit Btm.
9489396 Whirlpool Refrigerator Clip
11Strap
12Cover
13Overload
14Spring, Overload
15Relay
17Capacitor
19Screw Grommet
22WP2188822 Whirlpool Refrigerator Evaporator
23Clamp
24Fan, Motor
25Tray, Evaporator
26Unit, Harness
27W10843121 Whirlpool Refrigerator Tube
28876765 Whirlpool Primary Mounting Kit Refrigerator
28Compressor (Includes Items 11, (Also Order)
302304903 Whirlpool Refrigerator Frame
32Fan, Motor Bracket
33Heater, Defrost
34Clip
35WPW10225581 Whirlpool Refrigerator Defrost Thermostat
37Screw
39Grommet (Production)
40489340 Whirlpool Refrigerator Screw
41W10896764 Whirlpool Refrigerator Air Baffle
42Clip, Heat Shield
48Unit Mounting Rail
49Screw, 8 x 3/8
501105612 Whirlpool Fan Guard
51SLEEVE
52WPW10339879 Whirlpool Wire Tie
53WP489427 Whirlpool Refrigerator Screw
54Wire Connector
55WP489478 Whirlpool Refrigerator Screw
56Spring-Tube
57WP4211117 Whirlpool Refrigerator Connector
59Clip, Wire
61VALVE, ACCESS (5/8“)
61W11693756 Whirlpool Screw Assembly
61978026 Whirlpool Refrigerator Primary Valve
61978027 Whirlpool Refrigerator Primary Valve
61978030 Whirlpool Refrigerator Valve
61WP978025 Whirlpool Refrigerator Valve
61VALVE, ACCESS (1/2“)
61876764 Whirlpool Refrigerator Primary Valve
