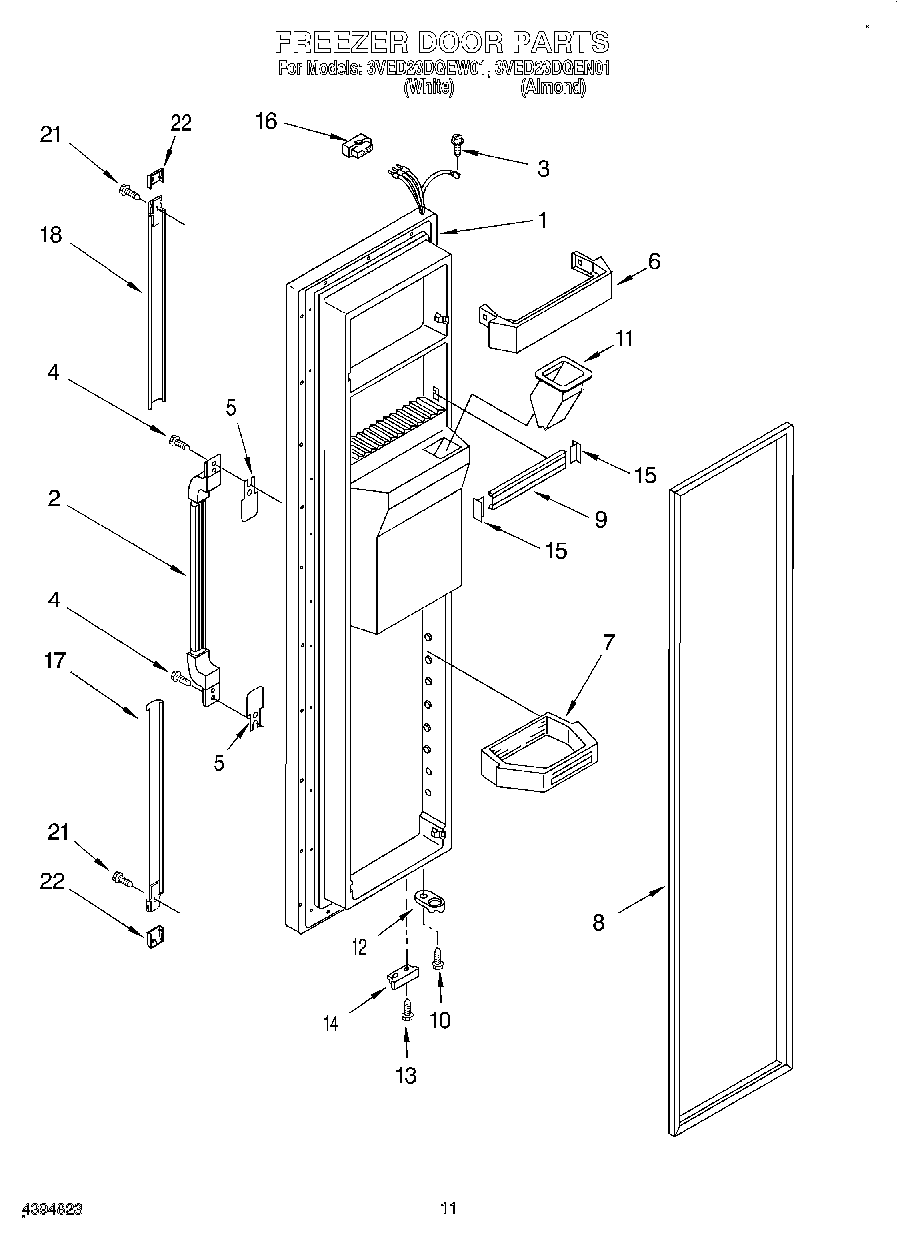

3VED23DQEN01 08 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Includes Item No.8 And Dispenser Front Parts) (Almond)
1	Freezer Door (Includes Item No.8 And Dispenser Front Parts) (White)
2	Handle, Center (White)
2	Handle, Center (Almond)
3	WP489128 Whirlpool Refrigerator Screw
4	WP489463 Whirlpool Refrigerator Screw
5	Shim
6	WP2156021 Whirlpool Refrigerator Door Trim
7	Shelf Bin (2)
8	2159072 Whirlpool Refrigerator FIP Gasket
9	WPW10307490 Whirlpool Door Trim Assembly
10	WP3400012 Whirlpool Refrigerator Screw
11	Chute, Ice
12	4318165 Whirlpool Refrigerator Door Closure Cam Kit
13	WP489483 Whirlpool Screw
14	Bracket, Door Stop (Chrome)
15	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
16	WP2154473 Whirlpool Refrigerator Connector
17	Extension, Bottom (Almond)
17	Extension, Bottom (White)
18	Extension, Top (Almond)
18	Extension, Top (White)
22	Cover, End Cap (Almond)
22	Cover, Endcap (White)
