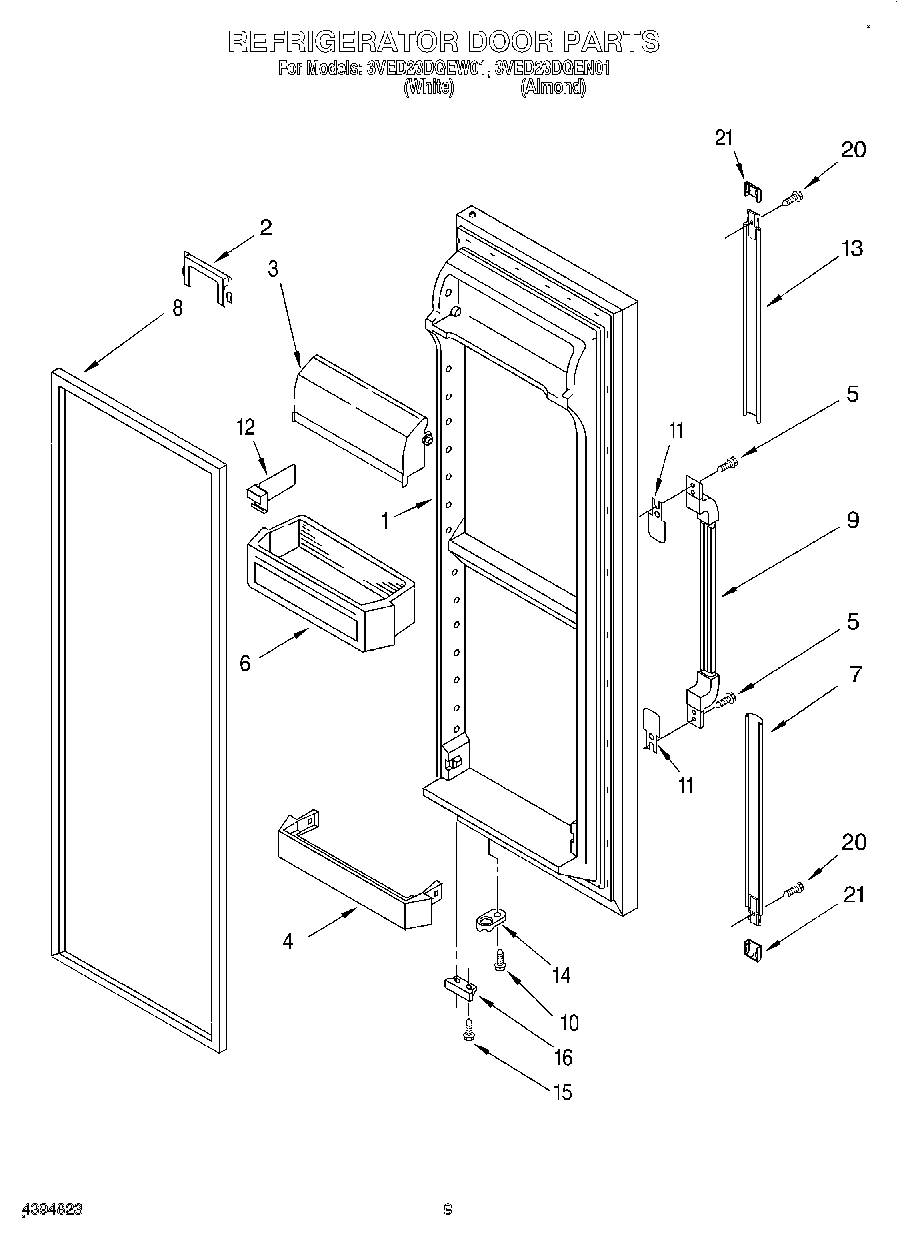

3VED23DQEW01 07 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes Item 6) (White)
1Refrigerator Door (Includes Item 6) (Almond)
2Retainer, Bottle
3WP2256101 Whirlpool Dairy Door
4WP2156022 Whirlpool Refrigerator Door Trim
5WP489463 Whirlpool Refrigerator Screw
6WPW10321304 Whirlpool Refrigerator Door Shelf Bin
7Extension, Bottom (Almond)
7Extension, Bottom (White)
82159073 Whirlpool Refrigerator Door Gasket
9Handle, Center (Almond)
9Handle, Center (White)
10WP3400012 Whirlpool Refrigerator Screw
11Shim
12Divider, Bin
13Extension, Top (Almond)
13Extension, Top (White)
144318165 Whirlpool Refrigerator Door Closure Cam Kit
15WP489483 Whirlpool Screw
16Bracket, Door Stop (Chrome)
21Cover, End Cap (Almond)
21Cover, Endcap (White)
