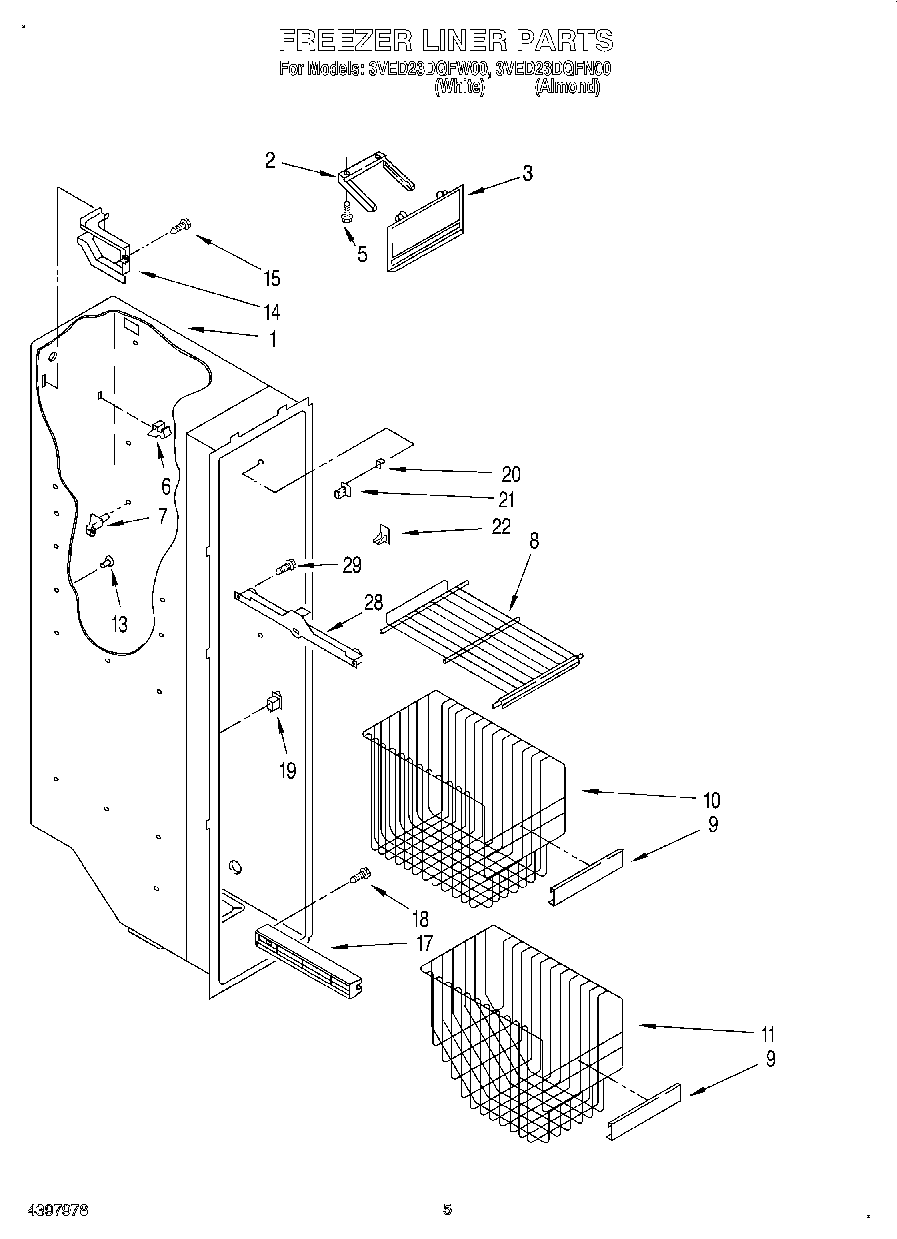

3VED23DQFN00 04 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Slide, Ice Door
3	2171712 Whirlpool Refrigerator Ice Door
5	WP489478 Whirlpool Refrigerator Screw
6	2215823 Whirlpool Refrigerator Clip
7	4388405 Whirlpool Refrigerator Shelf Stud
8	WP2174249K Whirlpool Refrigerator Wire Shelf
9	2195904K Whirlpool Refrigerator Basket Trim
10	Basket, Tall
11	Freezer Bin
13	Grommet
14	Cover, Wiring
15	SCREW
17	Slide, Basket (Right Side (2))
17	Slide, Basket (Left Side (2))
18	W11693756 Whirlpool Screw Assembly
19	W11457217 Whirlpool Refrigerator Rocker Switch Combination
20	Stud, Support
21	Stud, Front R.S.
22	Stud, Rear R.S.
28	W10845585 Whirlpool Refrigerator Track
28	W10845583 Whirlpool Refrigerator Track
29	718257 Whirlpool Dishwasher Screw
