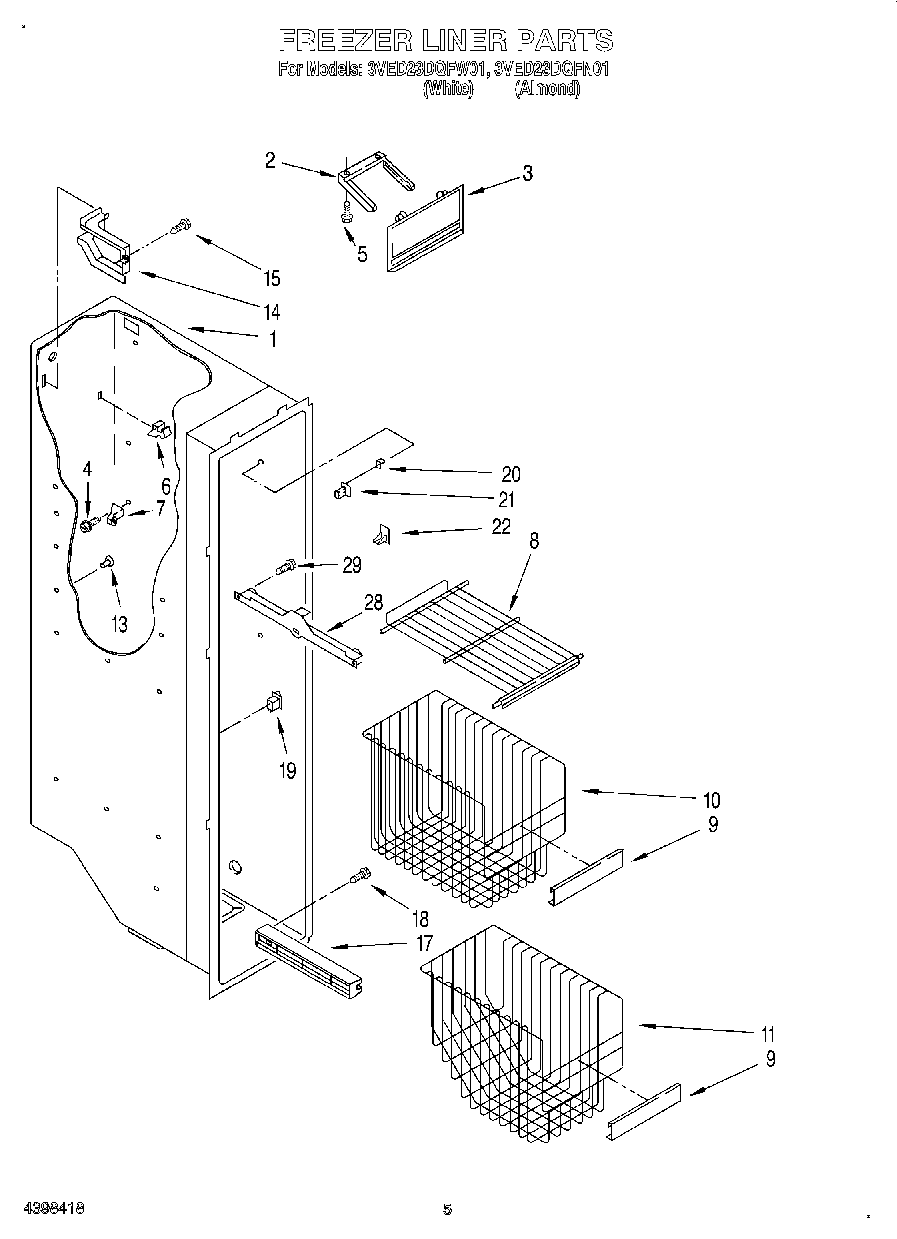

3VED23DQFW01 04 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Slide, Ice Door
3	2171712 Whirlpool Refrigerator Ice Door
4	W10142289 Whirlpool Air Conditioner Screw
5	WP489478 Whirlpool Refrigerator Screw
6	2215823 Whirlpool Refrigerator Clip
7	4388405 Whirlpool Refrigerator Shelf Stud
8	WP2174249K Whirlpool Refrigerator Wire Shelf
9	2195904K Whirlpool Refrigerator Basket Trim
10	Basket, Tall
11	Freezer Bin
13	Grommet
14	Cover, Wiring
15	SCREW
17	Slide, Basket (Right Side (2))
17	Slide, Basket (Left Side (2))
18	W10759522 Whirlpool Screw
19	W11457217 Whirlpool Refrigerator Rocker Switch Combination
20	Stud, Support
21	Stud, Front R.S.
22	Stud, Rear R.S.
28	W10845585 Whirlpool Refrigerator Track
28	W10845583 Whirlpool Refrigerator Track
29	718257 Whirlpool Dishwasher Screw
