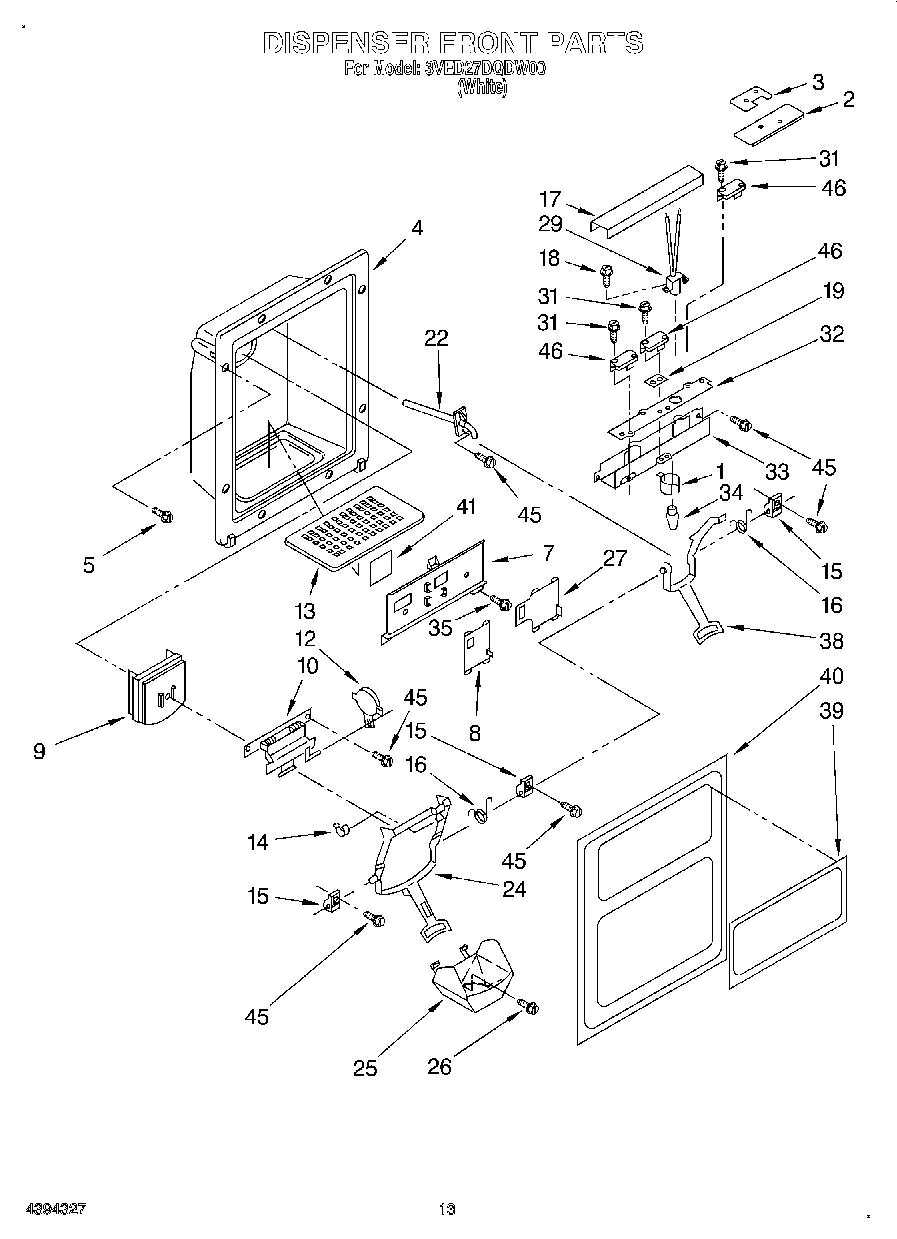

3VED27DQDW00 08 – DISPENSER FRONT

3VED27DQDW00 08 – DISPENSER FRONT

Written by

in

3VED27DQDW00 08 – DISPENSER FRONT

Products

PositionProduct
1Shroud, Bracket
2Guard, Switch
3Guard, Switch
4Housing, Dispenser (Not a Serviceable Part)
5W11693756 Whirlpool Screw Assembly
7Frame, Slides
8Slide, Cube/Crush Switch
9WP2180353 Whirlpool Dispenser Door
10Door Mechanism Assembly
12WP1120581 Whirlpool Refrigerator Mechanism
13Grille, Overflow (White)
14Clip, Bearing (2)
15Bearing, Lever (3)
16Spring, Lever (2)
17Shield, Wiring
18WP489128 Whirlpool Refrigerator Screw
19Spacer, Switch (2)
22WP4388152 Whirlpool Refrigerator Fitting
24Lever, Ice Dispenser (White)
25Guide, Ice
26Screw
27Slide, Light Switch
29Lamp Holder
31Screw, 4-40 x 1
32Insulator, Control Bracket
33Bracket, Control
34Bulb, Light
35WP489069 Whirlpool Compactor Screw
38Lever, Water Dispenser (White)
39Plaque, Front Cover (White)
40WPL 2174310
41Heat Shield, Frame
45WP3400906 Whirlpool Refrigerator Screw
46WP2162361 Whirlpool Switch
