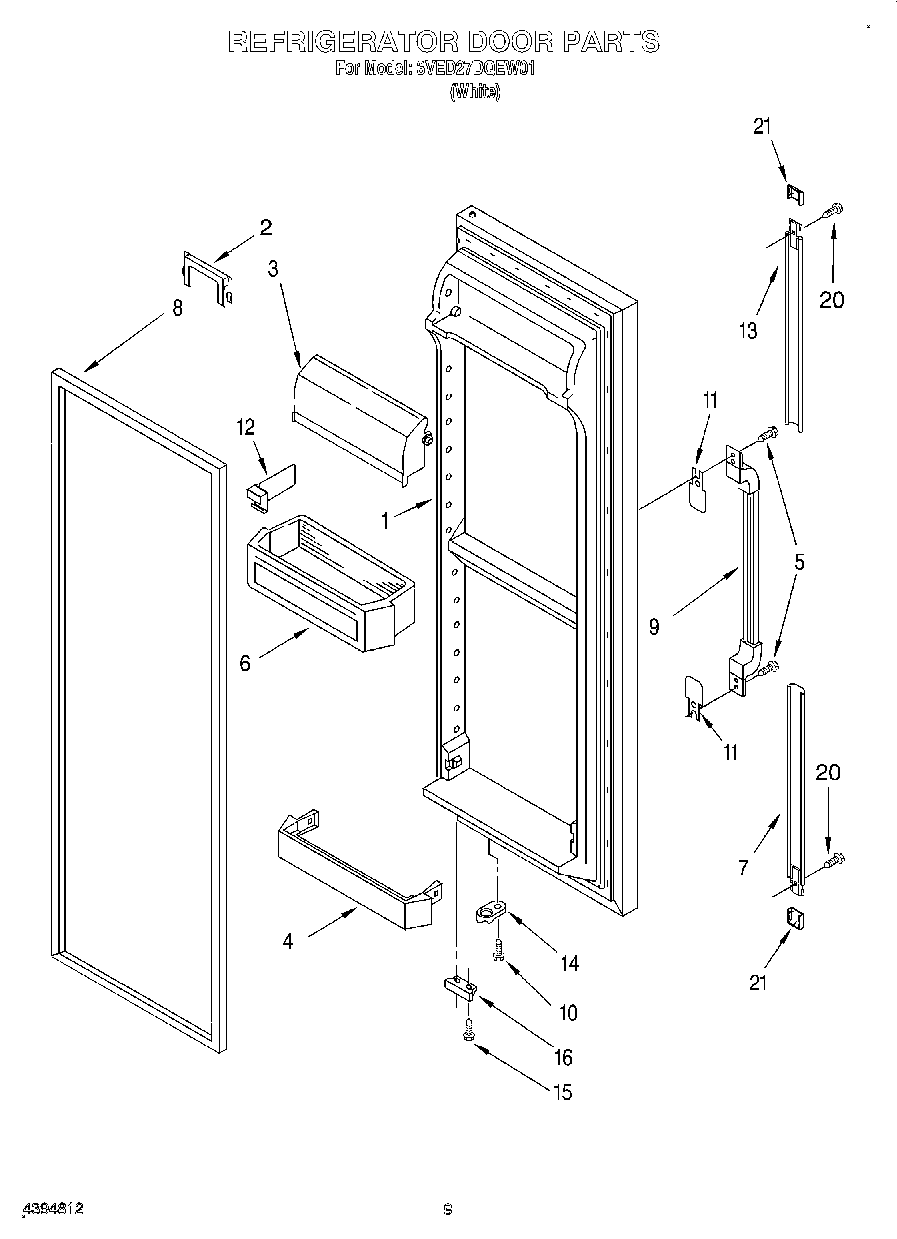

3VED27DQEW01 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item No.8) (White)
2	Retainer, Bottle
3	WP2256101 Whirlpool Dairy Door
4	WP2156022 Whirlpool Refrigerator Door Trim
5	WP489463 Whirlpool Refrigerator Screw
6	WPW10321304 Whirlpool Refrigerator Door Shelf Bin
7	Extension, Bottom (White)
8	2159075 Whirlpool Door Gasket Seal
9	Handle, Center (White)
10	WP3400012 Whirlpool Refrigerator Screw
11	Shim
12	Divider, Bin
13	Extension, Top (White)
14	4318165 Whirlpool Refrigerator Door Closure Cam Kit
15	WP489483 Whirlpool Screw
16	Bracket, Door Stop (Chrome)
21	Cover, Endcap (White)
