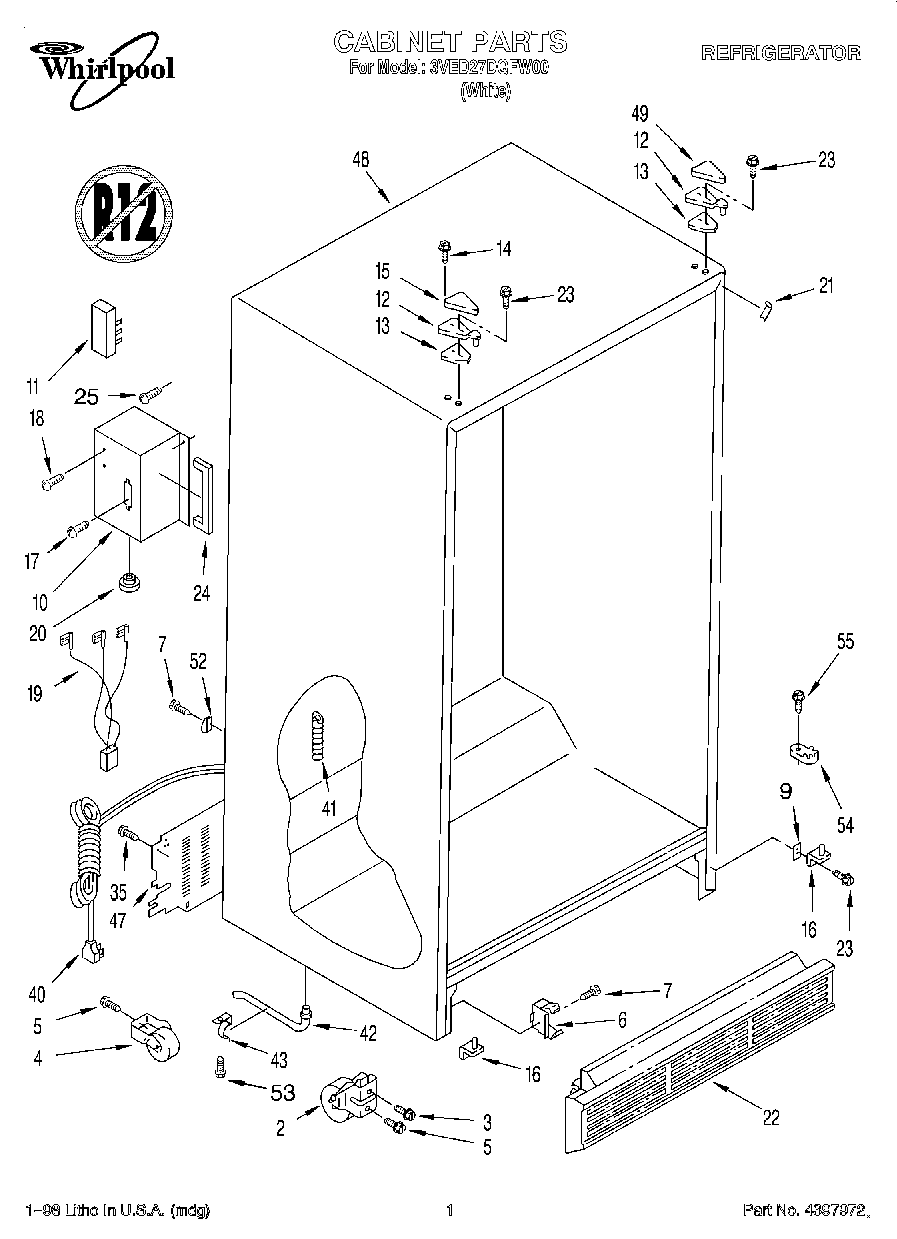

3VED27DQFW00 01 – CABINET

Products

Position	Product
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
9	WP2181911 Whirlpool Refrigerator Shim
10	Enclosure, Term.
11	Terminal Block
12	WP2196046 Whirlpool Refrigerator Door Hinge
13	Shim, Hinge Top
14	Screw
15	WP1129262 Whirlpool Refrigerator Cover
16	8201707 Whirlpool Door Hinge
17	WPW10272364 Whirlpool Refrigerator Screw
18	WP489399 Whirlpool Refrigerator Screw
19	Wiring Assembly, Terminal Block
20	Bushing
21	Filler, Wrapper (White)
22	Grille (White)
23	WP489497 Whirlpool Screw
24	Gasket
25	WP489463 Whirlpool Refrigerator Screw
35	WP489464 Whirlpool Refrigerator Screw
40	Service Cord
41	W11566763 Whirlpool Fitting
42	WP1108438 Whirlpool Refrigerator Extension
43	WP1108439 Whirlpool Refrigerator Clip
47	Cover, Unit
48	Cabinet (Not A Serviceable Part)
49	1119787 Whirlpool Refrigerator Hinge Cover
52	489348 Whirlpool Refrigerator Tube Clamp
54	WPW10329686 Whirlpool Door Cam Black
55	WP489483 Whirlpool Screw
