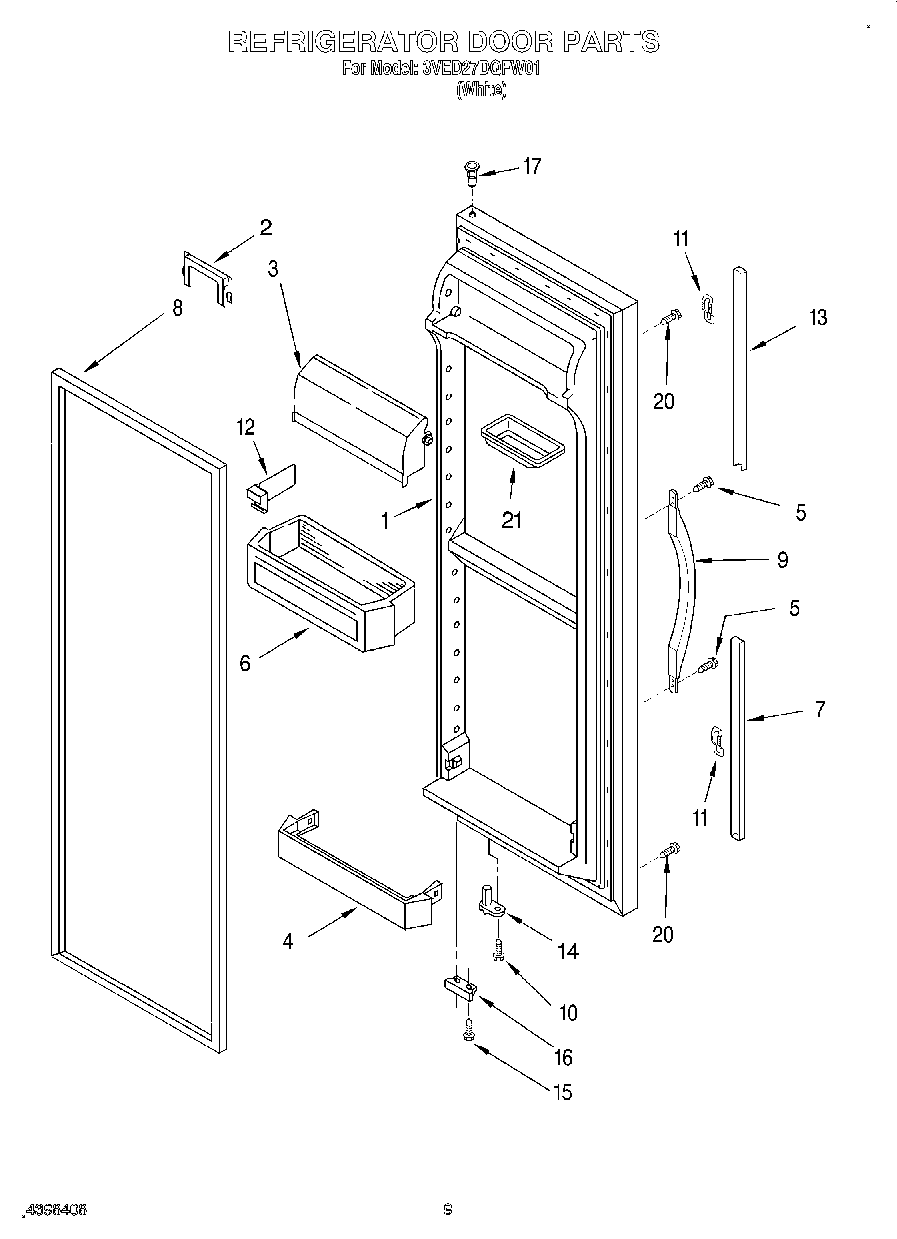

3VED27DQFW01 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item No.8) (White)
2	Retainer, Bottle
3	WP2256101 Whirlpool Dairy Door
4	WP2156022 Whirlpool Refrigerator Door Trim
5	WP489491 Whirlpool Refrigerator Screw
6	WPW10321304 Whirlpool Refrigerator Door Shelf Bin
7	Extension, Bottom (White)
8	2159075 Whirlpool Door Gasket Seal
9	Handle, Center (White)
10	WP3400012 Whirlpool Refrigerator Screw
11	WP2195327 Whirlpool Refrigerator Clip
12	Divider, Bin
13	WP2194973W Whirlpool Door Trim
14	WP2182179 Whirlpool Cam Closer
15	WP489483 Whirlpool Screw
16	Bracket, Door Stop (Chrome)
17	WP2182181 Whirlpool Refrigerator Thimble
20	WP3400852 Whirlpool Refrigerator Screw
21	Butter Tray
