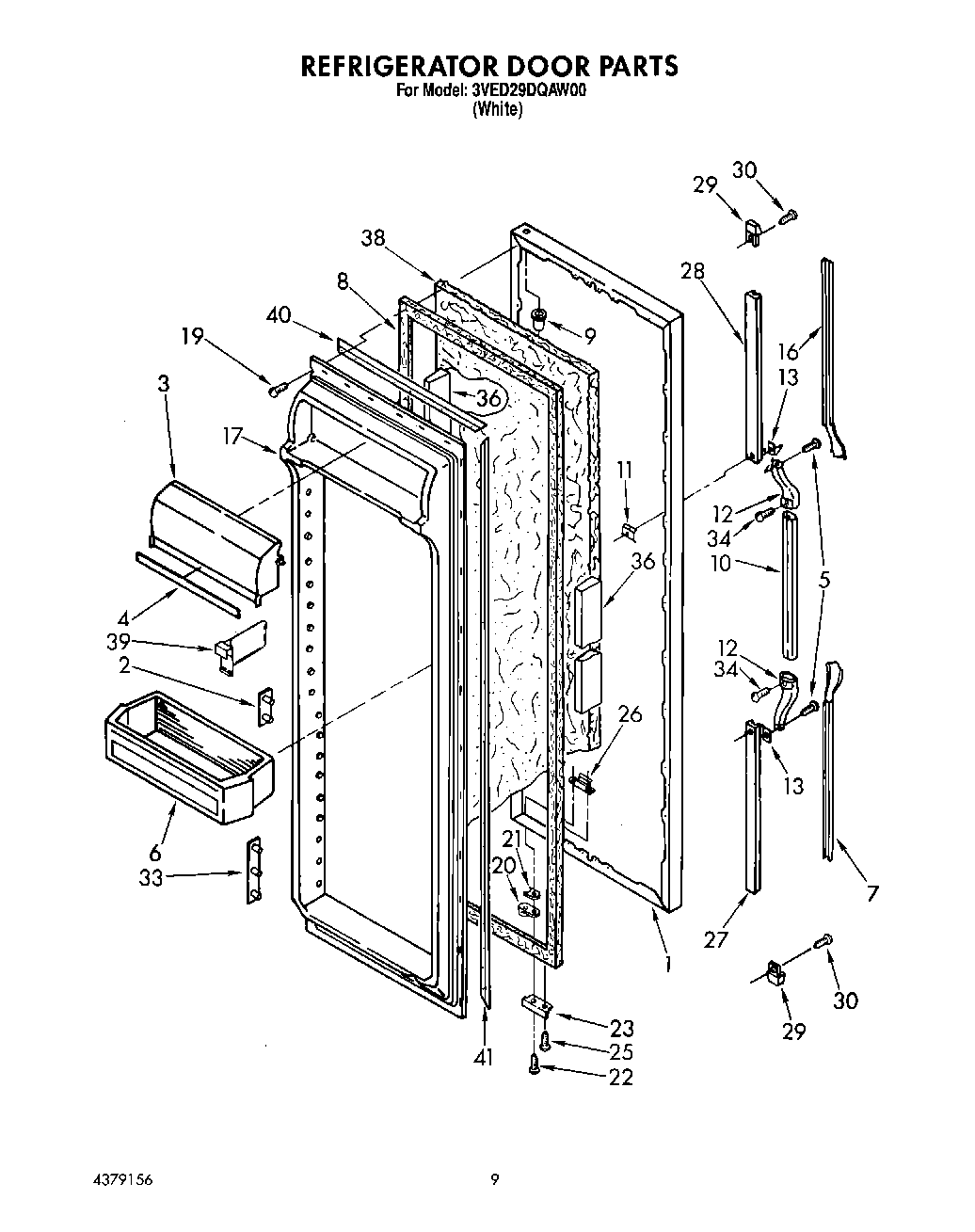

3VED29DQAW00 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (White)
2	Pin Plate (6)
3	Door, Compartment
4	Trim, Compartment Door
6	Shelf Bin (2)
7	Insert, Handle (White)
8	Door Gasket, Magnetic
9	Cap, Hinge Sleeve (2)
10	Handle, Center (White)
11	Screw Anchor (2)
12	End Cap, Center Handle
13	Shim
16	Insert, Handle (White)
17	Panel, Interior Door
20	4318165 Whirlpool Refrigerator Door Closure Cam Kit
21	WP1104787 Whirlpool Refrigerator Shim
23	Bracket, Door Stop (Chrome)
25	WP489069 Whirlpool Compactor Screw
26	Plate, Tap (4)
27	Retainer, Insert (Bottom)
28	Retainer, Insert
29	End Cap (2)
30	Screw
33	Pin Plate (8)
34	Screw
36	Door Dike (2)
38	WPL 876029
39	Divider (3)
40	Gasket Retainer, Top & Bottom
41	Gasket Retainer, Side (2)
41	Black Handle Insert
41	Trimless Black Decor Panel
41	Trim Kit
41	Woodgrain Handle Insert
