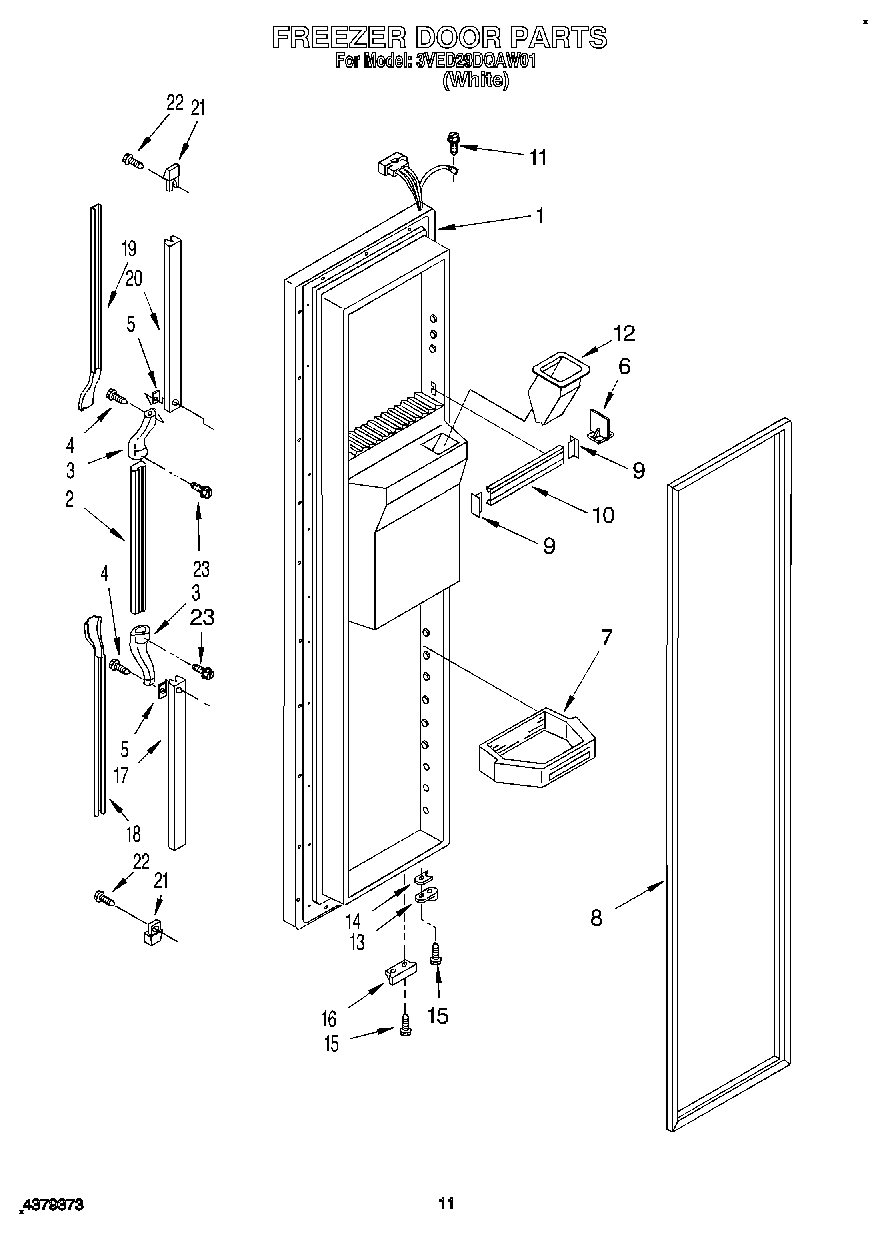

3VED29DQAW01 07 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Includes Item No.10 And Dispenser Front Parts) (White)
2	Handle, Center (White)
3	End Cap, Center Handle
5	Shim
6	Divider-Door
8	2159074 Whirlpool Door Gasket Seal
9	Shelf Bin (4)
9	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
10	Trim, Door Shelf
11	WP488234 Whirlpool Air Conditioner Screw
12	Chute, Ice
13	4318165 Whirlpool Refrigerator Door Closure Cam Kit
14	WP1104787 Whirlpool Refrigerator Shim
15	WP489069 Whirlpool Compactor Screw
16	Bracket, Door Stop (Chrome)
17	Retainer, Insert (Bottom)
18	Insert, Handle (White)
19	Insert, Handle (White)
20	Retainer, Insert
21	End Cap (2)
22	Screw
23	Screw
