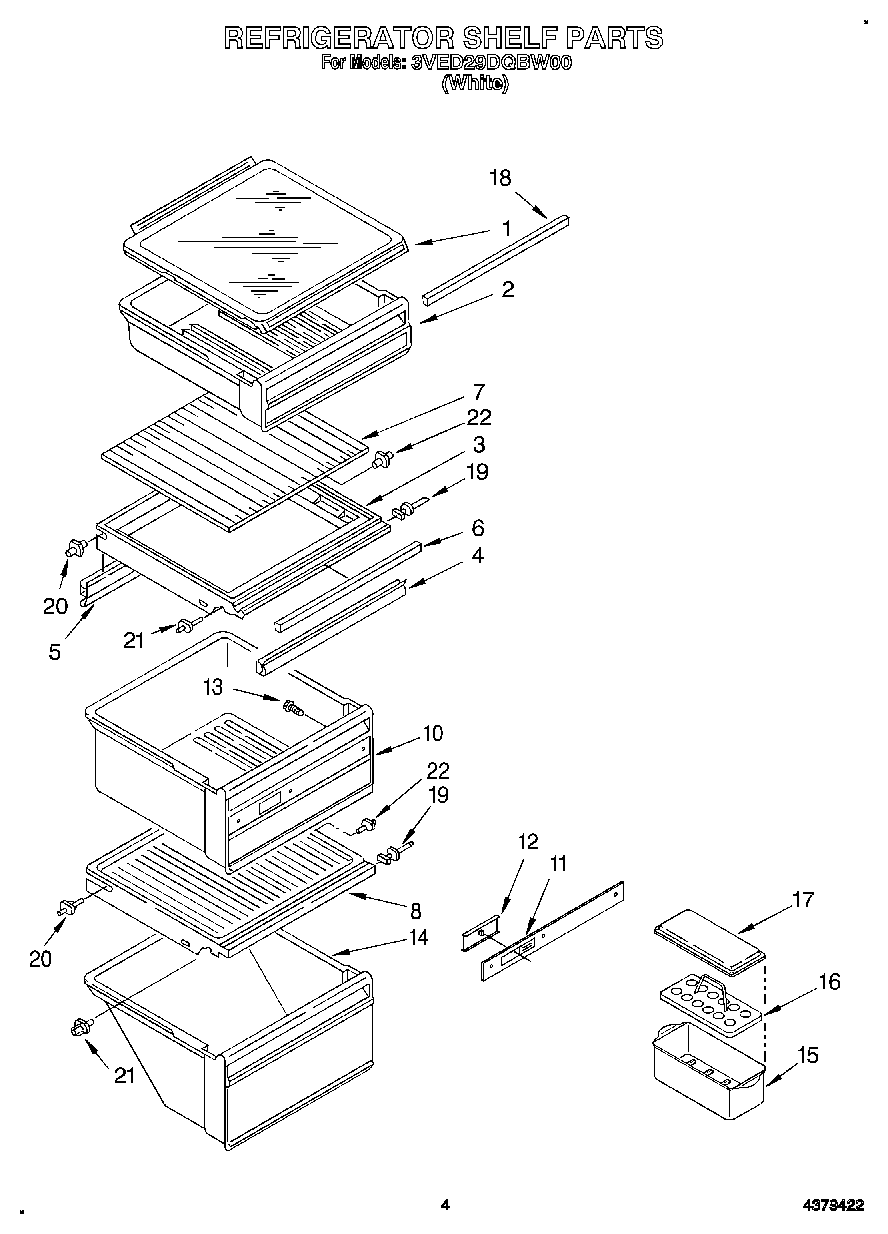

3VED29DQBW00 03 – REFRIGERATOR SHELF

Products

Position	Product
1	Shelf Assembly, Glass Sliding (3)
2	Snack Bin
3	WP1126289 Whirlpool Refrigerator Cover
4	Gasket, Crisper (Front)
5	Gasket, Crisper (Rear)
6	Trim, Crisper Cover
7	Glass, Crisper Cover
8	WP2148298 Whirlpool Refrigerator Deli Drawer Cover Top Pan
10	Pan, Crisper
11	Front, Crisper Pan
12	Slide, Humidity Control
13	Screw (6)
14	Meat Pan
15	W10136387A Whirlpool Refrigerator Egg Container
16	WP2177817 Whirlpool Refrigerator Egg Container
17	Cover
18	Trim
20	Stud (2)
21	WP2149540 Whirlpool Shelf Support
22	4388538 Whirlpool Refrigerator Stud Shelf Kit (White)
