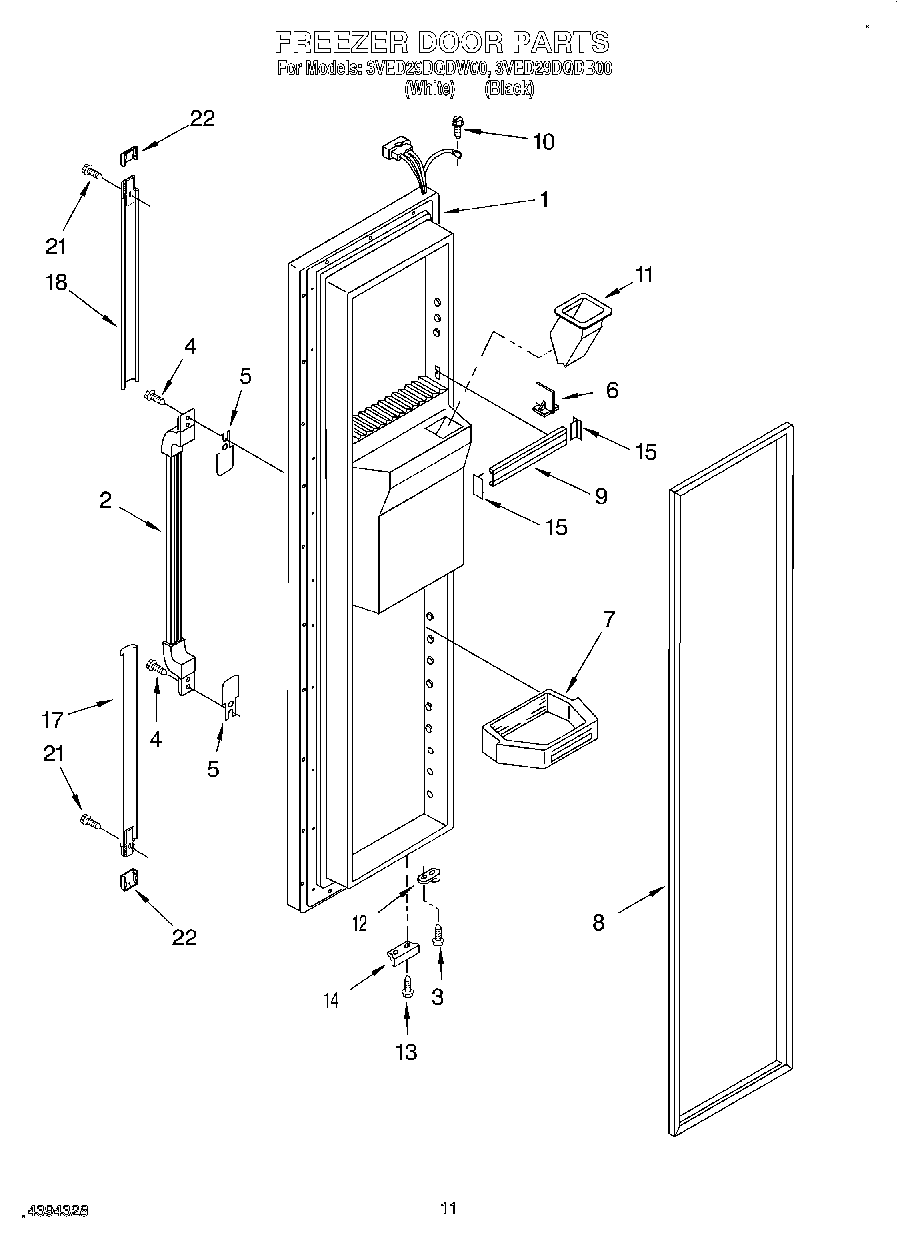

3VED29DQDB00 07 – FREEZER DOORadmin2025-04-26T12:27:01+00:003VED29DQDB00 07 – FREEZER DOOR
Products
| Position | Product |
|---|
| 1 | Freezer Door (Includes Item No.8 And Dispenser Front Parts) (Black) |
| 1 | Freezer Door (Includes Item No.8 And Dispenser Front Parts) (White) |
| 2 | Handle, Center (Black) |
| 2 | Handle, Center (White) |
| 3 | WP3400012 Whirlpool Refrigerator Screw |
| 4 | WP489463 Whirlpool Refrigerator Screw |
| 5 | Shim |
| 6 | Divider-Door |
| 7 | Shelf Bin (4) |
| 8 | 2159074 Whirlpool Door Gasket Seal |
| 8 | 2159082 Whirlpool Freezer Door Gasket Black |
| 9 | WPW10307490 Whirlpool Door Trim Assembly |
| 10 | WP488234 Whirlpool Air Conditioner Screw |
| 11 | Chute, Ice |
| 12 | 4318165 Whirlpool Refrigerator Door Closure Cam Kit |
| 13 | WP489483 Whirlpool Screw |
| 14 | Bracket, Door Stop (Chrome) |
| 15 | WP2156006 Whirlpool Refrigerator Shelf Trim Endcap |
| 17 | Extension, Bottom (White) |
| 17 | Extension, Bottom (Black) |
| 18 | Extension, Top (Black) |
| 18 | Extension, Top (White) |
| 22 | Cover, Endcap (Black) |
| 22 | Cover, Endcap (White) |
