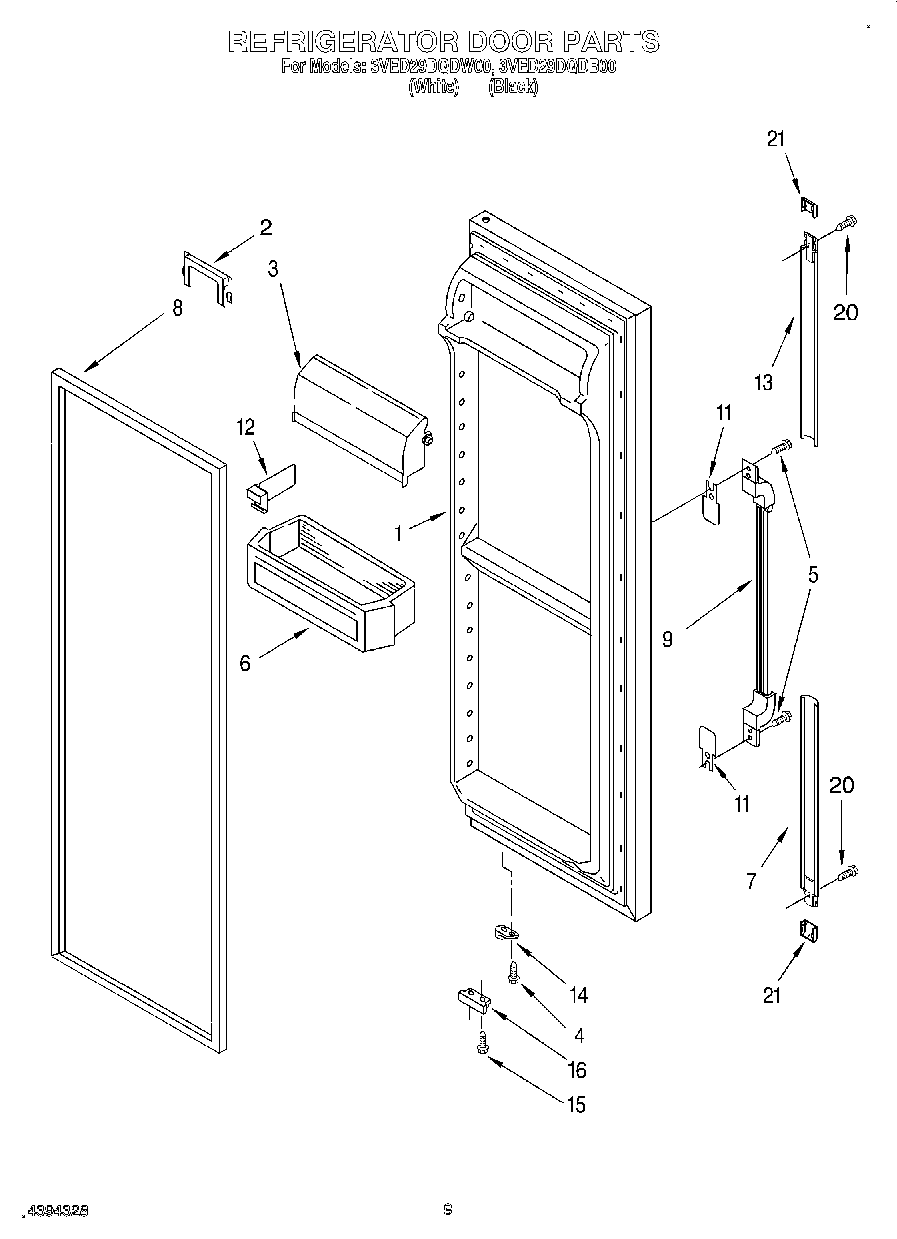

3VED29DQDW00 06 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes Item No.8) (White)
1Refrigerator Door (Includes Item No.8) (Black)
2Retainer, Bottle
3WP2256101 Whirlpool Dairy Door
4WP3400012 Whirlpool Refrigerator Screw
5WP489463 Whirlpool Refrigerator Screw
6WP2203872 Whirlpool Refrigerator Cantilever Bin
7Extension, Bottom (Black)
7Extension, Bottom (White)
82159083 Whirlpool Gasket Door
82159075 Whirlpool Door Gasket Seal
9Handle, Center (White)
9Handle, Center (Black)
11Shim
12WPL 2171284
13Extension, Top (White)
13Extension, Top (Black)
144318165 Whirlpool Refrigerator Door Closure Cam Kit
15WP489483 Whirlpool Screw
16Bracket, Door Stop (Chrome)
21Cover, Endcap (White)
21Cover, Endcap (Black)
