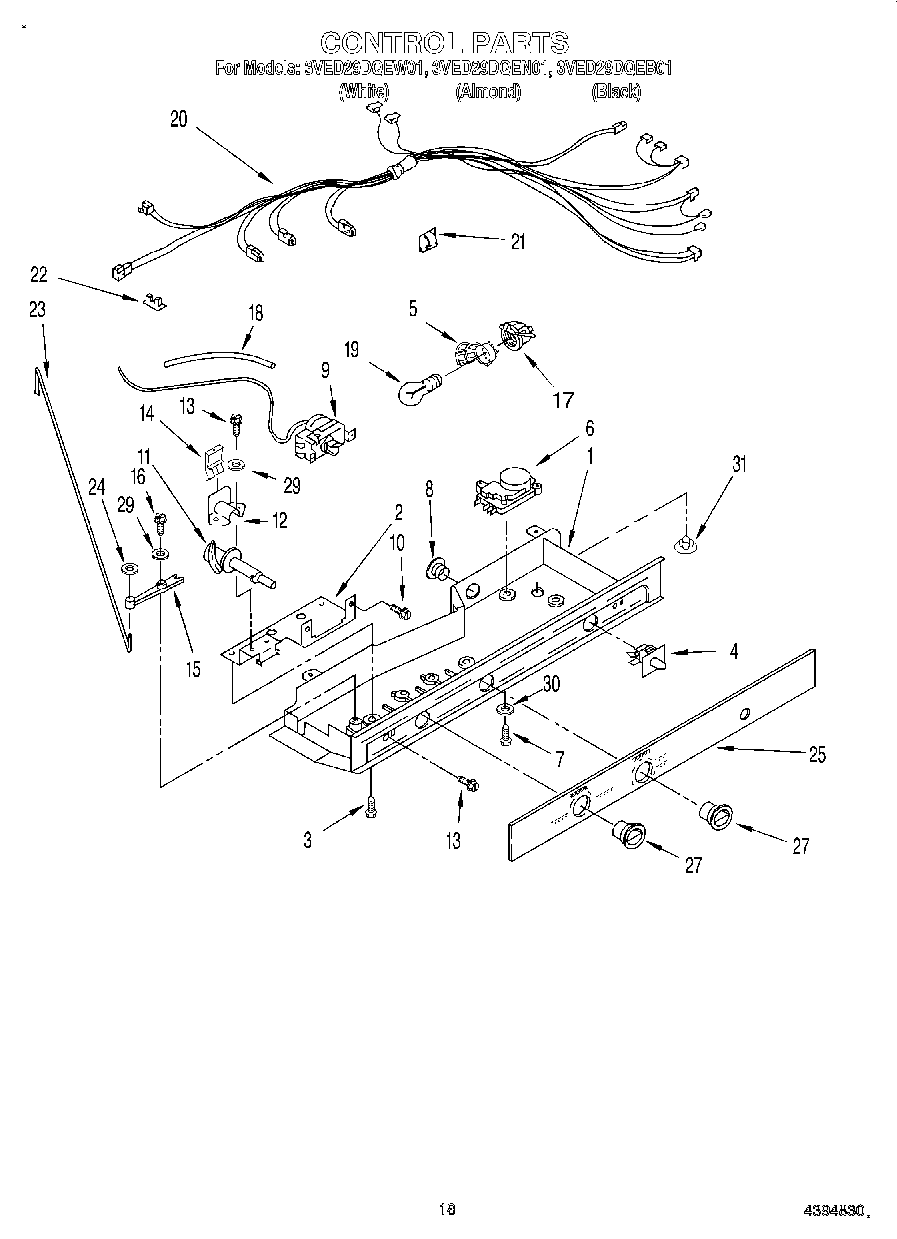

3VED29DQEW01 11 – CONTROL

Products

Position	Product
1	Control Box
2	Mounting Bracket
3	Screw (2)
4	WP2149705 Whirlpool Refrigerator Door Switch
5	WP2175210 Whirlpool Refrigerator Shroud
6	Defrost Timer (10 Hr.)
7	489392 Whirlpool Refrigerator Screw
8	940014 Whirlpool Refrigerator Primary Button Plug
9	WP2198202 Whirlpool Refrigerator Temperature Thermostat
10	WP965173 Whirlpool Dishwasher Screw
11	WP2182195 Whirlpool Refrigerator Cam
12	1110560 Whirlpool Refrigerator Bearing
13	WP489478 Whirlpool Refrigerator Screw
14	WP2196062 Whirlpool Refrigerator Clip
15	Pivot Arm
16	627068 Whirlpool Refrigerator Screw
17	4387478 Whirlpool Refrigerator Light Socket
18	WP2196003 Whirlpool Refrigerator Bar Riser
19	WP67002552 Whirlpool Refrigerator Light Bulb
20	Control Box Harness
21	WP1115374 Whirlpool Refrigerator Clip
22	CLIP, WIRING
23	Connecting Rod
24	Fastener, Push-On
25	Escutcheon, Control Box
27	Knob, Air Control
29	489203 Whirlpool Refrigerator Washer
30	Washer
31	Hole Plug
