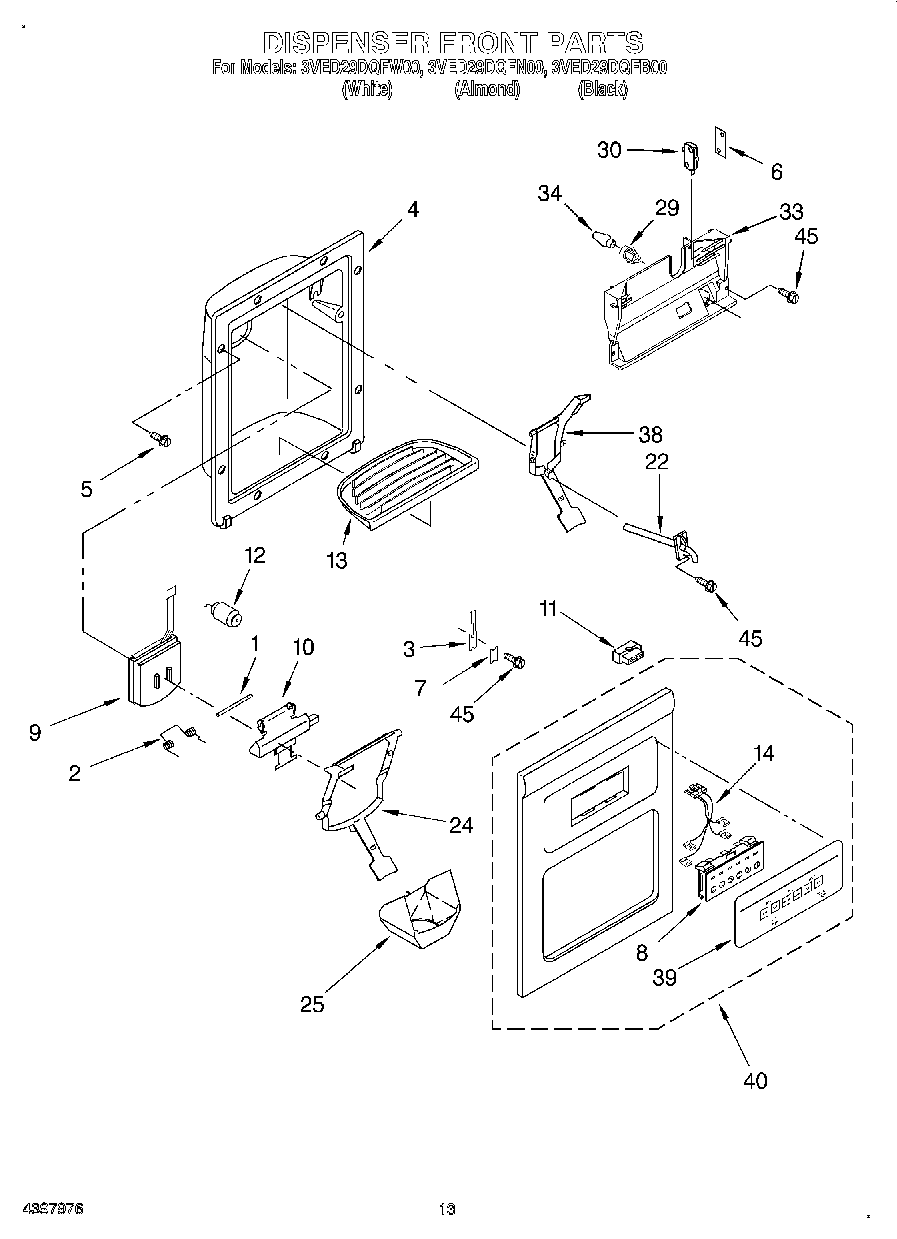

3VED29DQFB00 08 – DISPENSER FRONT

Products

Position	Product
1	WP2196195 Whirlpool Refrigerator Door Pin
2	WPW10224328 Whirlpool Refrigerator Spring
3	WP2194719 Whirlpool Refrigerator Clip
4	Housing, Dispenser (Not a Serviceable Part)
5	WP489069 Whirlpool Compactor Screw
6	Spacer, Switch (2)
7	WP2195051 Whirlpool Refrigerator Clip
8	WP2180236 Whirlpool Refrigerator Switch
9	WP2180353 Whirlpool Dispenser Door
10	Door Mechanism Assembly
11	Connector
12	Delay Mechanism
13	Grille, Overflow (White)
13	Grille, Overflow (Almond)
13	Grille, Overflow (Black)
14	2311650 Whirlpool Refrigerator Wire Harness
22	WP4388152 Whirlpool Refrigerator Fitting
24	Lever, Ice Dispenser (Black (Storm Grey Pad))
24	Lever Assembly, Ice Dispenser
24	Lever, Ice Dispenser (Almond (Almond Shadow Pad))
25	WP2180224 Whirlpool Dispenser Funnel Guide
29	2180200 Whirlpool Refrigerator Socket
30	WP2162361 Whirlpool Switch
33	WP2180226 Whirlpool Ice Dispenser Control Switch Bracket
34	Bulb, Light
38	Lever, Water Dispenser (Almond (Almond Shadow Pad))
38	WPW10152858 Whirlpool Refrigerator Dispenser Arm
39	Overlay, Front Cover (Black)
39	Overlay, Front Cover (White)
39	Overlay, Front Cover (Almond)
40	Front Cover Assembly (Includes Items 18, 19, 20 & 21) (Almond)
40	Front Cover Assembly (Includes Items 18, 19, 20 & 21) (White)
40	Front Cover, Housing (Includes Items 8, 14 & 39) (Black)
45	WP3400906 Whirlpool Refrigerator Screw
