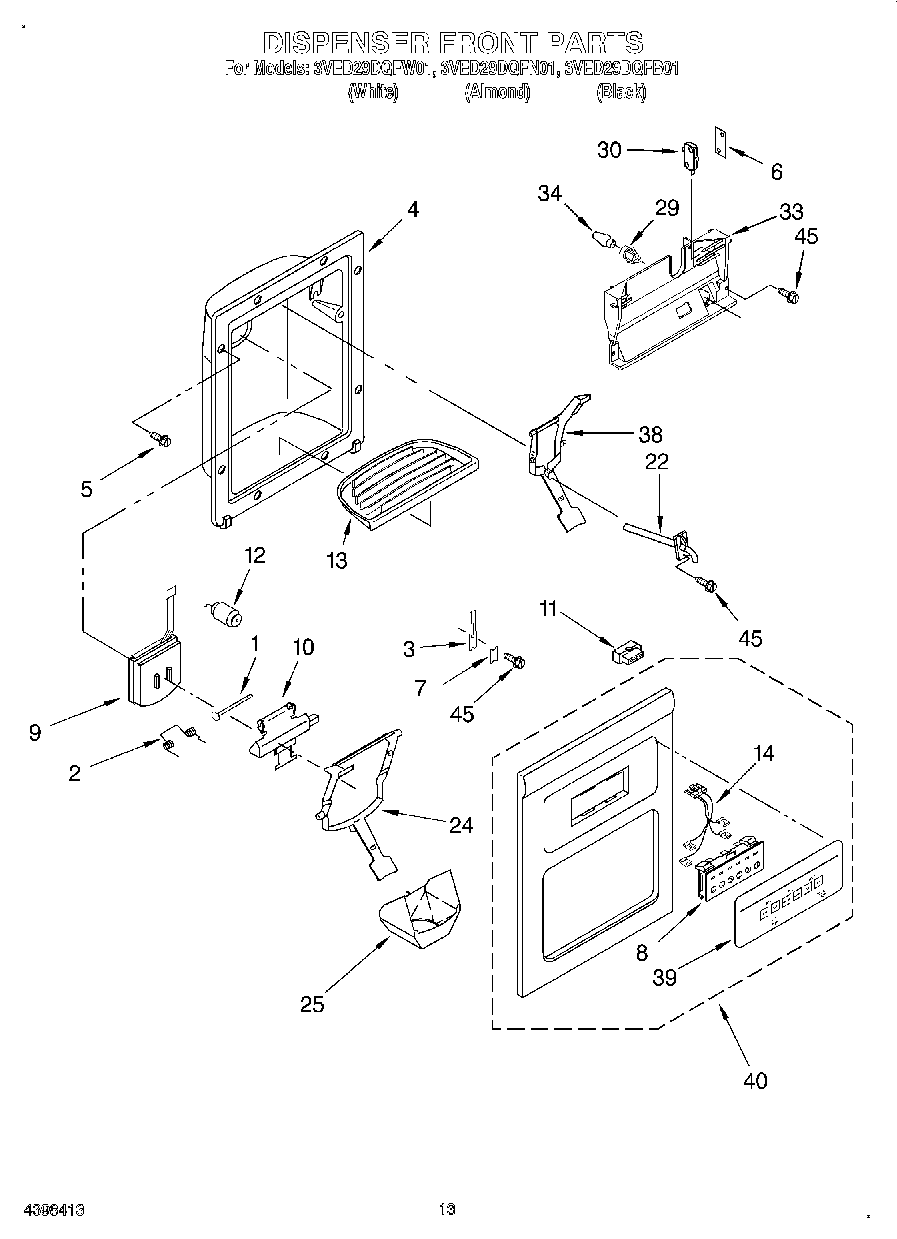

3VED29DQFB01 08 – DISPENSER FRONT

Products

PositionProduct
1WP2196195 Whirlpool Refrigerator Door Pin
2WPW10224328 Whirlpool Refrigerator Spring
3WP2194719 Whirlpool Refrigerator Clip
4Housing, Dispenser (Not a Serviceable Part)
5WP489069 Whirlpool Compactor Screw
6Spacer, Switch (2)
7WP2195051 Whirlpool Refrigerator Clip
8WP2180236 Whirlpool Refrigerator Switch
9WP2180353 Whirlpool Dispenser Door
10Door Mechanism Assembly
11Connector
12Delay Mechanism
13Grille, Overflow (White)
13Grille, Overflow (Almond)
13Grille, Overflow (Black)
142311650 Whirlpool Refrigerator Wire Harness
22WP4388152 Whirlpool Refrigerator Fitting
24Lever Assembly, Ice Dispenser
24Lever, Ice Dispenser (Black (Storm Grey Pad))
24Lever, Ice Dispenser (Almond (Almond Shadow Pad))
25WP2180224 Whirlpool Dispenser Funnel Guide
292180200 Whirlpool Refrigerator Socket
30WP2162361 Whirlpool Switch
33WP2180226 Whirlpool Ice Dispenser Control Switch Bracket
34Bulb, Light
38WPW10152858 Whirlpool Refrigerator Dispenser Arm
38Lever, Water Dispenser (Almond (Almond Shadow Pad))
39Overlay, Front Cover (Almond)
39Overlay, Front Cover (Black)
39Overlay, Front Cover (White)
40Front Cover Assembly (Includes Items 18, 19, 20 & 21) (Almond)
40Front Cover Assembly (Includes Items 18, 19, 20 & 21) (White)
40Front Cover, Housing (Includes Items 8, 14 & 39) (Black)
45WP3400906 Whirlpool Refrigerator Screw
