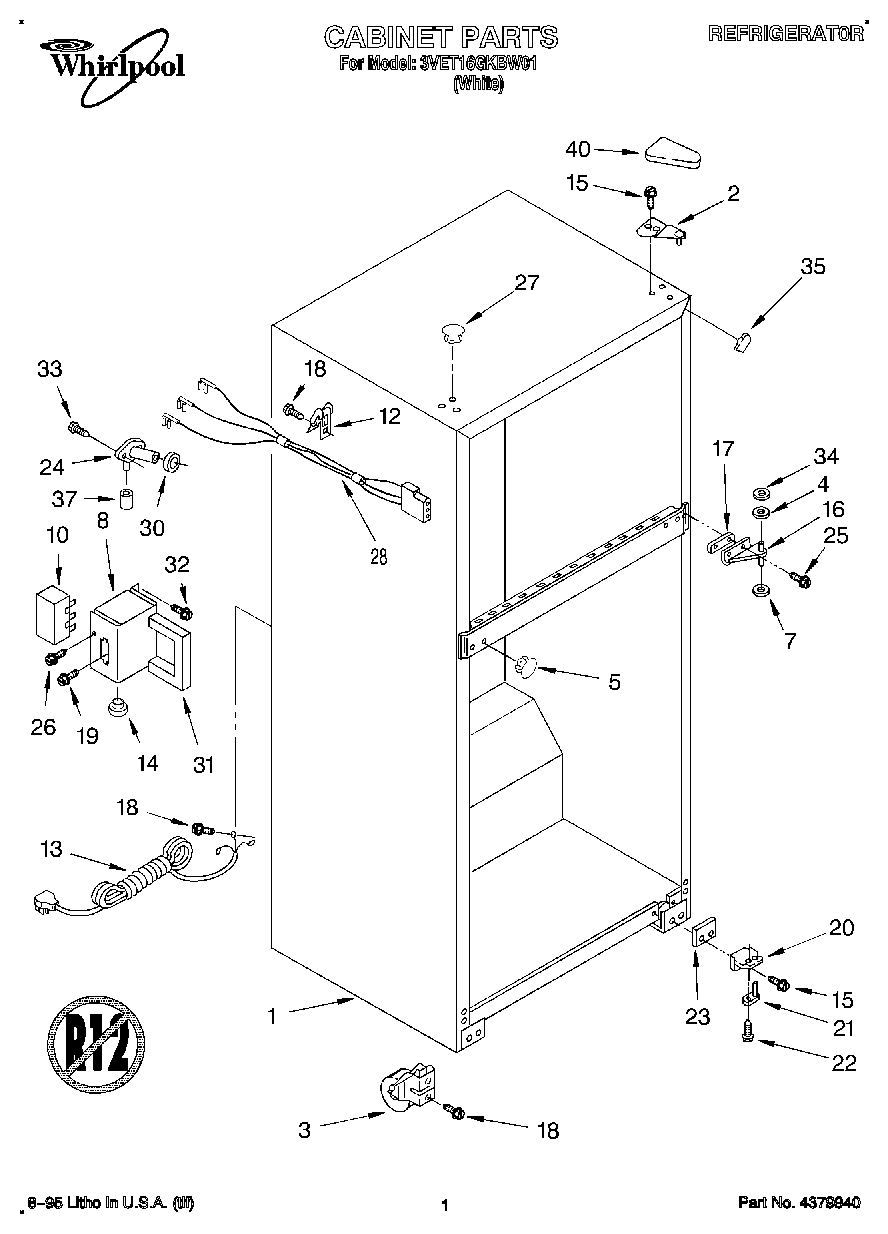

3VET16GKBW01 01 – CABINETadmin2025-04-26T12:24:22+00:003VET16GKBW01 01 – CABINET ProductsPositionProduct1Cabinet (Not A Serviceable Part)2WP2189412 Whirlpool Refrigerator Door Hinge3Roller-Front4WP487576 Whirlpool Washer5Hole Plug (4) (White)7WP487802 Whirlpool Refrigerator Washer8Enclosure, Term.10Terminal Block12489348 Whirlpool Refrigerator Tube Clamp13Service Cord14Bushing16WP2166037 Whirlpool Refrigerator Door Hinge172166043 Whirlpool Refrigerator Shim18WP489478 Whirlpool Refrigerator Screw19WPW10272364 Whirlpool Refrigerator Screw20WP2325482 Whirlpool Bottom Hinge21Hinge-Pin Bott.22Screw 10-32 x 5/1623WP2201567 Whirlpool Hinge Shim24WP2196157 Whirlpool Fill Tube25WP999367 Whirlpool Refrigerator Screw26Screw27WP2151652 Whirlpool Refrigerator Button Plug28Wire Assembly30WP1106508 Whirlpool Refrigerator Gasket31Gasket32WP250830 Whirlpool Refrigerator Screw34WP489200 Whirlpool Refrigerator Washer35W10859322 Whirlpool Refrigerator Filler37WP487996 Whirlpool Refrigerator Cap Tube40WP2213360 Whirlpool Refrigerator Cover
