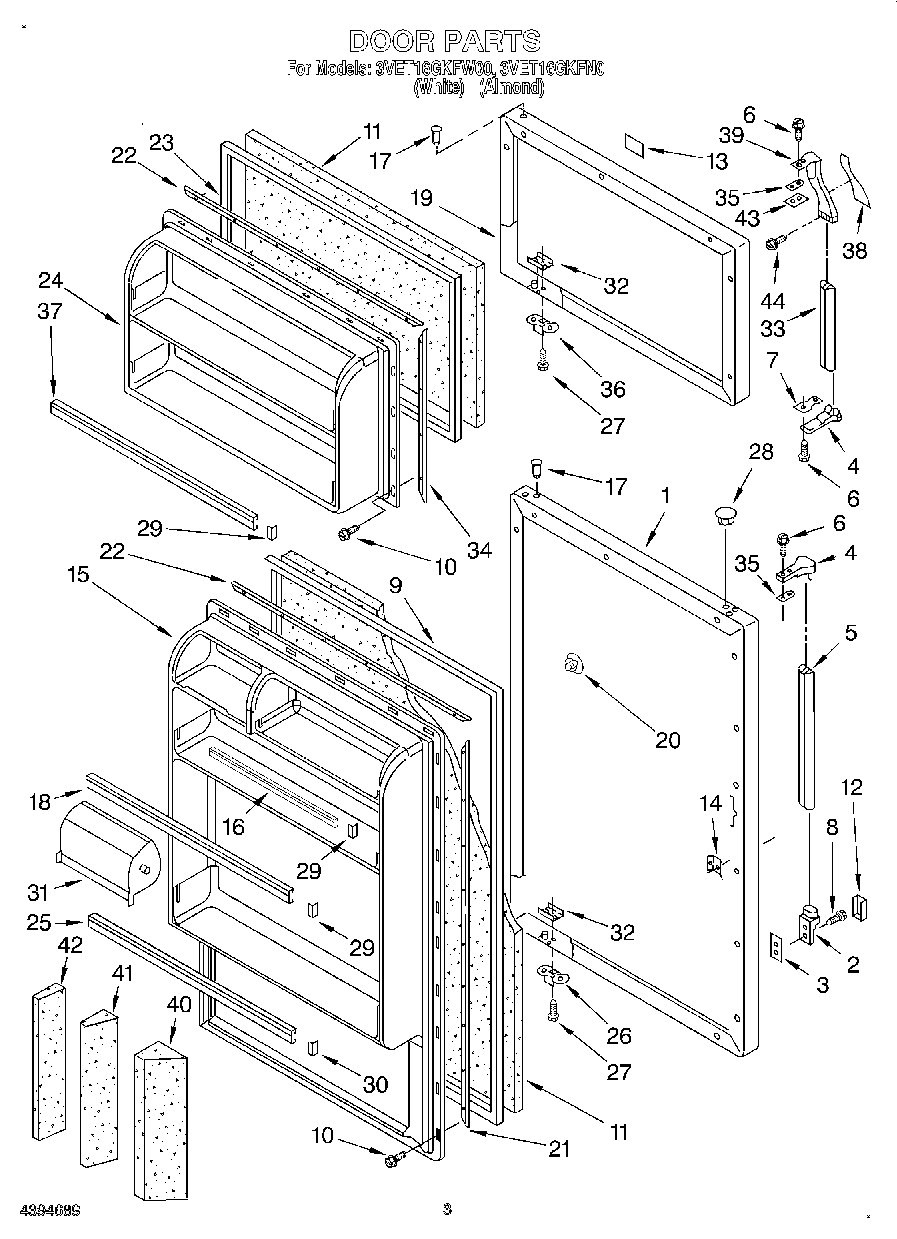

3VET16GKFN00 02 – DOOR

Products

Position	Product
1	Refrigerator Door Panel (Also Order Item 11) (Almond)
1	Refrigerator Door Panel (Also Order Item 11) (White)
2	Handle End,
3	Shim, Handle
4	Handle End
5	Handle, Center (White)
5	Handle, Center (Almond)
6	WP488920 Whirlpool Refrigerator Screw
7	Shim, Handle
8	WP488729 Whirlpool Refrigerator Door Screw
9	2188448A Whirlpool Refrigerator Door Gasket Seal
10	WP489442 Whirlpool Refrigerator Screw
11	WPL 876029
12	Cover, End Cap
13	Nameplate (White)
13	Nameplate (Almond Model)
14	WP939101 Whirlpool Refrigerator Plate
15	Panel, Interior Door (Refrigerator)
17	WP2183003 Whirlpool Thimble
19	Freezer Door Panel (Also Order Item 11) (Almond)
19	Freezer Door Panel (Also Order Item 11) (White)
20	WP2189000 Whirlpool Refrigerator Handle Plug
20	Hole Plug, Handle (Almond)
21	Gasket, Retainer
22	Retainer, Gasket
23	2188462A Whirlpool Freezer Door Gasket
24	Interior Door Panel (Freezer)
25	Trim, Door (Middle)
26	Bracket, Door Stop
27	WP488921 Whirlpool Refrigerator Screw
28	Hole Plug (Almond)
28	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
29	ENDCAP-TRM
30	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31	Compartment Door
32	W10833053 Whirlpool Refrigerator Plate
33	Handle, Center
33	Handle, F.C. (Almond Model)
34	Retainer, Gasket
35	Spa
36	Bracket, Door Stop
37	WP2163629 Whirlpool Refrigerator Door Trim
38	Insert, Handle
38	Insert, Handle (Almond)
39	Handle End, Top
40	Support (Thick)
41	Support (Medium)
42	Support (Thin)
43	Shim, EndCap (Top)
44	Screw
