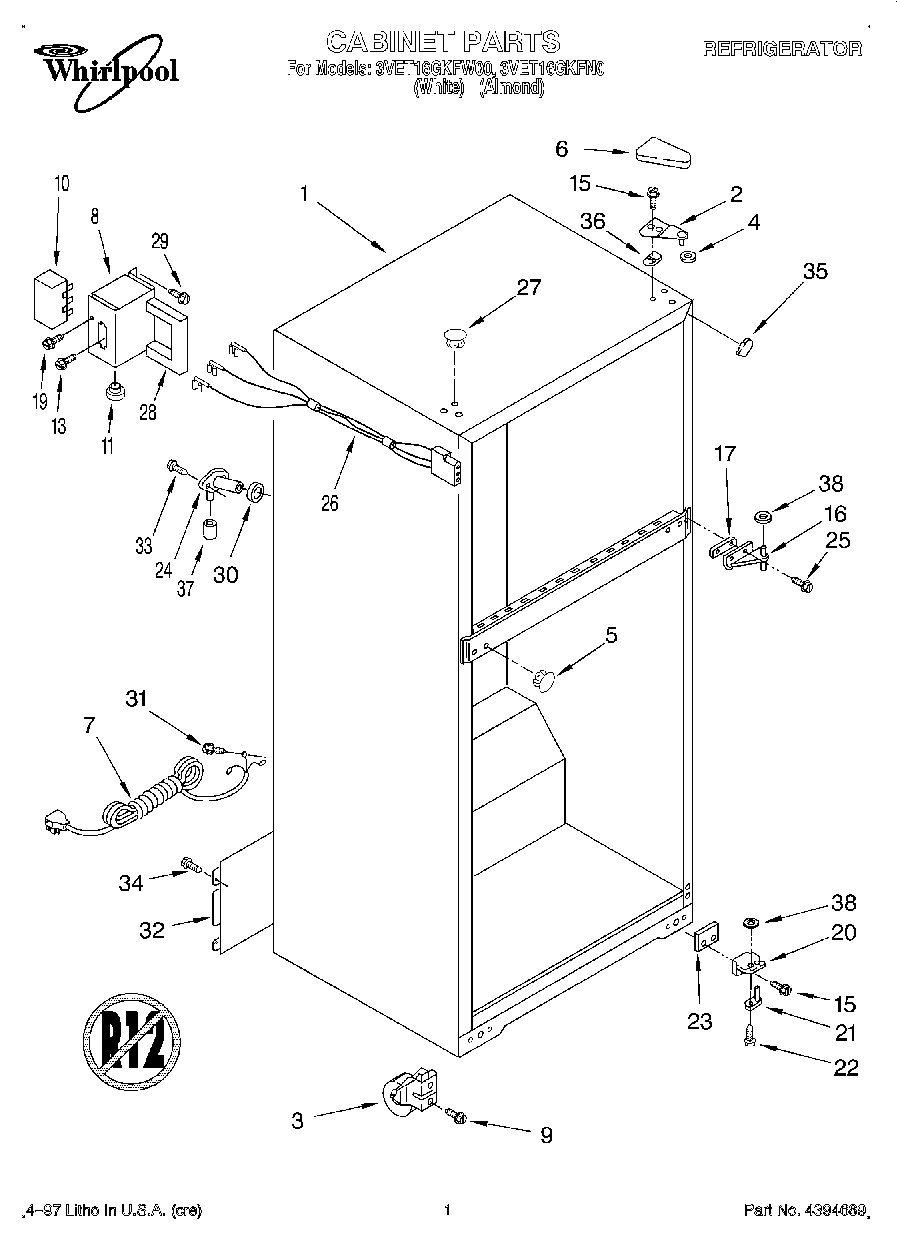

3VET16GKFW00 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	WP2189412 Whirlpool Refrigerator Door Hinge
3	Roller-Front
4	WP487576 Whirlpool Washer
5	Hole Plug (4) (White)
6	Cover, Hinge (Almond)
6	WP2213360 Whirlpool Refrigerator Cover
7	Service Cord
8	Enclosure, Term.
9	Screw
10	Terminal Block
11	Bushing
13	WPW10272364 Whirlpool Refrigerator Screw
16	WP2166037 Whirlpool Refrigerator Door Hinge
17	2166043 Whirlpool Refrigerator Shim
18	WP489478 Whirlpool Refrigerator Screw
19	WP489399 Whirlpool Refrigerator Screw
20	WP2325482 Whirlpool Bottom Hinge
21	Hinge-Pin Bott.
22	Screw 10-32 x 5/16
23	WP2201567 Whirlpool Hinge Shim
24	WP2196157 Whirlpool Fill Tube
25	WP999367 Whirlpool Refrigerator Screw
26	Wire Assembly
27	Hole Plug (6) (Almond)
27	WP2151652 Whirlpool Refrigerator Button Plug
28	Gasket
30	WP1106508 Whirlpool Refrigerator Gasket
31	WP489442 Whirlpool Refrigerator Screw
32	2213762 Whirlpool Refrigerator Unit Cover
34	WP250830 Whirlpool Refrigerator Screw
35	Corner Filler (Almond)
35	W10859322 Whirlpool Refrigerator Filler
36	Shim, Hinge Top
37	WP487996 Whirlpool Refrigerator Cap Tube
38	WP487802 Whirlpool Refrigerator Washer
