3VET16GKFW01 03 – LINER, LIT/OPTIONAL

3VET16GKFW01 03 – LINER, LIT/OPTIONAL

Written by

in

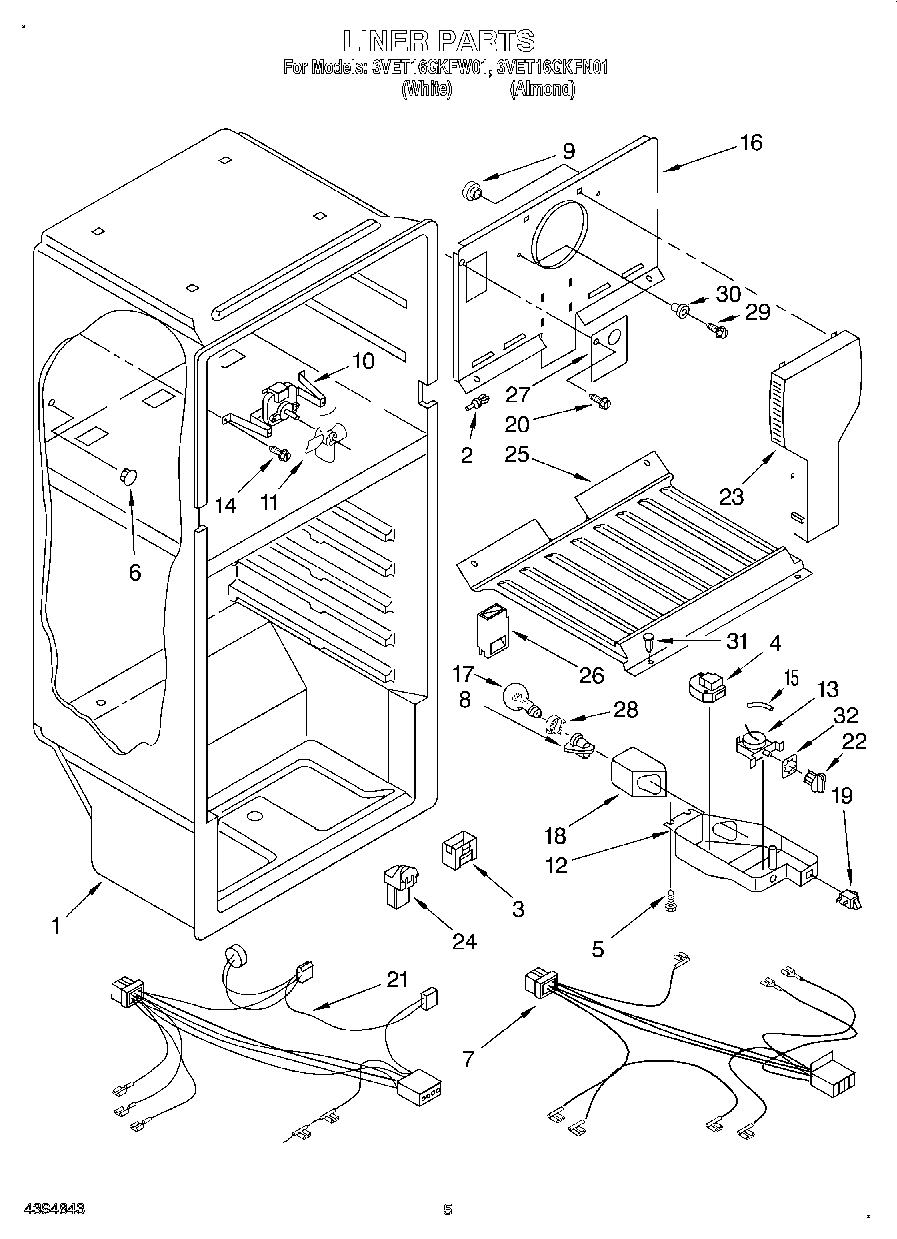

3VET16GKFW01 03 – LINER, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2197115
	W11729596 Whirlpool Ice Maker Field Install Kit
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	WPL LIT677971
	Torx Key
	WPL LIT2176934
1	Liner (Not A Serviceable Part)
2	939962 Whirlpool Refrigerator Rivet
3	Cover, Air Diffuser
4	WP2166867 Whirlpool Refrigerator Defrost Timer
5	WP489174 Whirlpool Refrigerator Screw
6	WP941839 Whirlpool Refrigerator Button Plug
7	2176927 Whirlpool Refrigerator Wire Harness
8	4387478 Whirlpool Refrigerator Light Socket
9	Grommet
10	Fan Motor & Bracket Assy.
11	Fan Blade
12	2215213 Whirlpool Refrigerator Control Box
13	WPW10567140 Whirlpool Refrigerator Thermostat
15	WP2196003 Whirlpool Refrigerator Bar Riser
16	Cover-Evaporator
17	WP67002552 Whirlpool Refrigerator Light Bulb
18	W11034434 Whirlpool Refrigerator Light Lens
19	W11384469 Whirlpool Door Switch
20	WP489442 Whirlpool Refrigerator Screw
21	Wiring, Freezer
22	WP2202885 Whirlpool Refrigerator Thermal Knob
23	Air Tower
24	Hood & Foil Assembly
25	Freezer Floor
26	Air Diffuser
27	WP2217784 Whirlpool Refrigerator Cover
28	WP2175210 Whirlpool Refrigerator Shroud
29	WP489474 Whirlpool Refrigerator Screw
30	Sleeve
31	WP489115 Whirlpool Refrigerator Rivet
32	Door Reversal Instructions
32	WP72107 Whirlpool Touchup
32	799344 Whirlpool Refrigerator Paint
32	72017 Whirlpool Appliance Touch-Up Paint White
32	350930 Whirlpool White Spray Paint
32	350956 Whirlpool Spray Assembly
32	Retainer
32	Almond (Uncut)
32	212643 Whirlpool Refrigerator Permagum Sealer
32	350942 Whirlpool Spray Paint
32	WPL 876029
32	WP505587 Whirlpool Refrigerator Sealer
32	WP503695 Whirlpool Refrigerator Sealer
32	876370 Whirlpool Refrigerator Insulation
32	285006 Whirlpool Spray
32	72032 Whirlpool Touch Up Paint Black
32	833938 Whirlpool Refrigerator Terminal
32	WPL 799832
32	WPL 799833
32	606755 Whirlpool Refrigerator Bag
32	511873 Whirlpool Refrigerator Paint
32	CEMENT, ALUMILASTIC (1 1/4 OZ.)
32	WP542638 Whirlpool Refrigerator Grease
32	TAPE, VINYL (3/4 X 108“)
