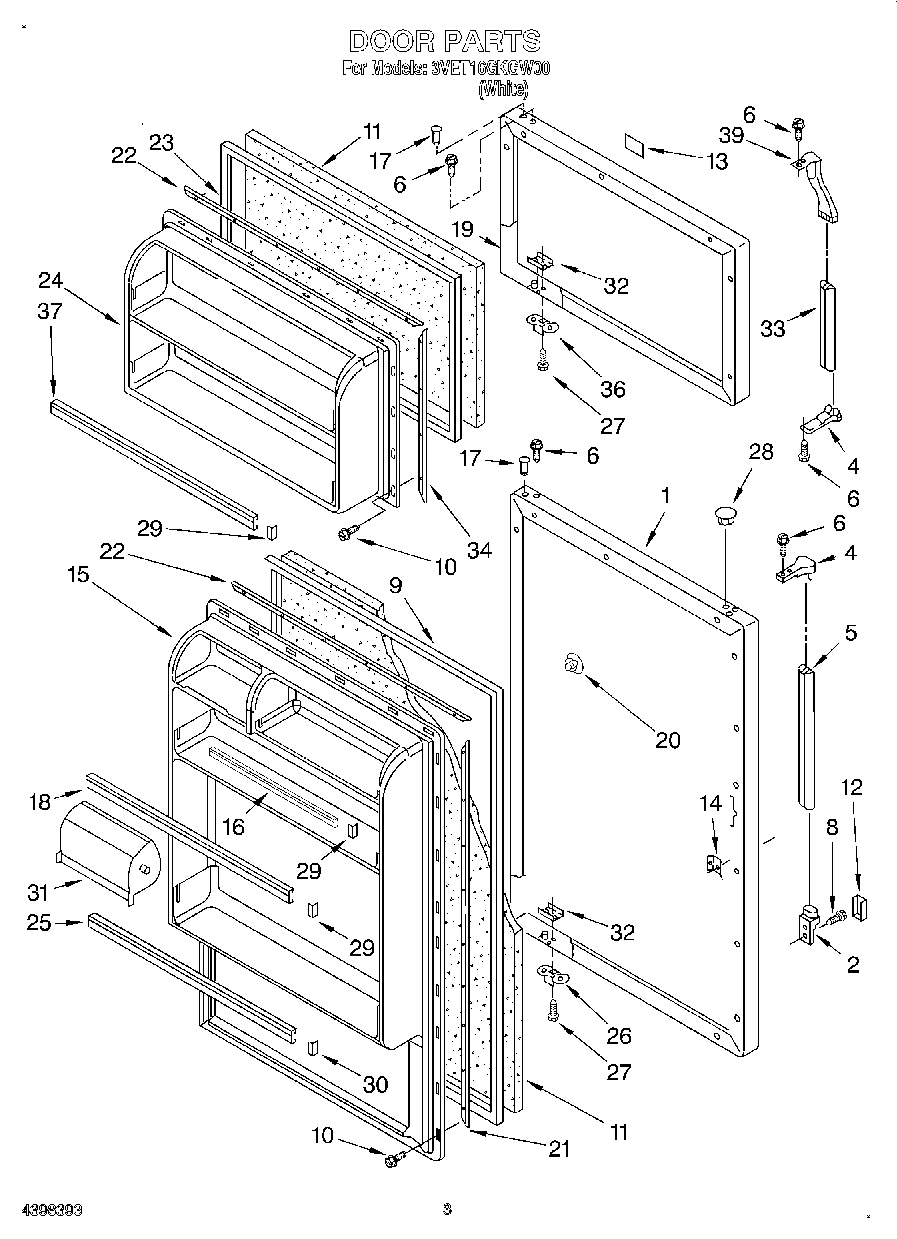

3VET16GKGW00 02 – DOOR

Products

Position	Product
1	Refrigerator Door Panel (Also Order Item 11) (White)
2	819342 Whirlpool Refrigerator Endcap Kit
5	WP2162555 Whirlpool Refrigerator White Door Handle
6	WP8281206 Whirlpool Refrigerator Screw
8	WP488729 Whirlpool Refrigerator Door Screw
9	2188448A Whirlpool Refrigerator Door Gasket Seal
10	WP489442 Whirlpool Refrigerator Screw
11	WPL 876029
12	Cover, Screw (White)
13	Nameplate (White)
14	WP939101 Whirlpool Refrigerator Plate
15	Panel, Interior Door (Refrigerator)
16	Trim, Door Shelf (Upper)
17	WP2183003 Whirlpool Thimble
18	Trim, Door (Middle)
19	Freezer Door Panel (Also Order Item 11) (White)
20	WP2189000 Whirlpool Refrigerator Handle Plug
21	Gasket, Retainer
22	Retainer, Gasket
23	2188462A Whirlpool Freezer Door Gasket
24	Interior Door Panel (Freezer)
25	WP2266738 Whirlpool Refrigerator Door Trim
26	Bracket, Door Stop
27	WP488921 Whirlpool Refrigerator Screw
28	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
29	ENDCAP-TRM
30	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31	Compartment Door
32	W10833053 Whirlpool Refrigerator Plate
34	Retainer, Gasket
36	Bracket, Door Stop
37	WP2266727 Whirlpool Refrigerator Door Trim
