3VET16GKGW00 03 – LINER, OPTIONAL

3VET16GKGW00 03 – LINER, OPTIONAL

Written by

in

3VET16GKGW00 03 – LINER, OPTIONAL

Products

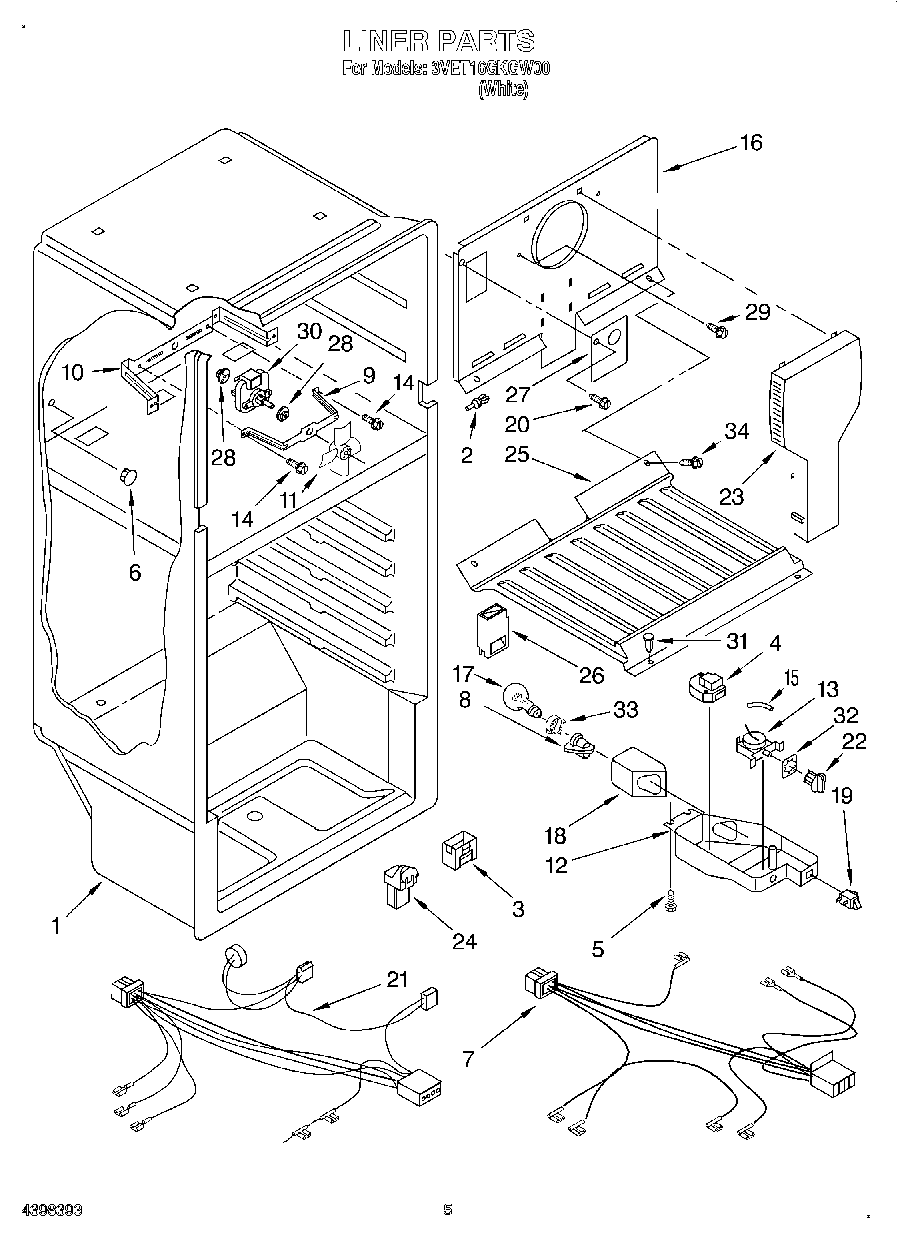

Position	Product
1	Liner (Not A Serviceable Part)
2	939962 Whirlpool Refrigerator Rivet
3	Cover, Air Diffuser
4	WP2166867 Whirlpool Refrigerator Defrost Timer
5	WP489174 Whirlpool Refrigerator Screw
6	WP941839 Whirlpool Refrigerator Button Plug
7	2176927 Whirlpool Refrigerator Wire Harness
8	4387478 Whirlpool Refrigerator Light Socket
9	WPW10180172 Whirlpool Refrigerator Bracket
10	Fan Mounting Bracket
11	Fan Blade
12	2215213 Whirlpool Refrigerator Control Box
13	WPW10567140 Whirlpool Refrigerator Thermostat
14	303776 Whirlpool Dishwasher Screw
15	WP2196003 Whirlpool Refrigerator Bar Riser
16	Cover, Evaporator
17	WP67002552 Whirlpool Refrigerator Light Bulb
18	W11034434 Whirlpool Refrigerator Light Lens
19	W11384469 Whirlpool Door Switch
20	WP489442 Whirlpool Refrigerator Screw
21	Wiring, Freezer
22	WP2202885 Whirlpool Refrigerator Thermal Knob
23	Air Tower
24	Hood And Foil Assembly
25	Freezer Floor
26	Air Diffuser
27	WP2217784 Whirlpool Refrigerator Cover
28	WP2264462 Whirlpool Refrigerator Grommet
29	WP489478 Whirlpool Refrigerator Screw
30	WP2201215 Whirlpool Refrigerator Evaporator Motor
31	WP489115 Whirlpool Refrigerator Rivet
32	Retainer
33	WP2175210 Whirlpool Refrigerator Shroud
34	212643 Whirlpool Refrigerator Permagum Sealer
34	TAPE, VINYL (3/4 X 108“)
34	Almond (Uncut)
34	WP72107 Whirlpool Touchup
34	350930 Whirlpool White Spray Paint
34	799344 Whirlpool Refrigerator Paint
34	72017 Whirlpool Appliance Touch-Up Paint White
34	350942 Whirlpool Spray Paint
34	511873 Whirlpool Refrigerator Paint
34	606755 Whirlpool Refrigerator Bag
34	WPL 799832
34	WPL 799833
34	WPL 876029
34	W11729596 Whirlpool Ice Maker Field Install Kit
34	Torx Key
34	WP542638 Whirlpool Refrigerator Grease
34	WP505587 Whirlpool Refrigerator Sealer
34	285006 Whirlpool Spray
34	72032 Whirlpool Touch Up Paint Black
34	WP503695 Whirlpool Refrigerator Sealer
34	CEMENT, ALUMILASTIC (1 1/4 OZ.)
34	876370 Whirlpool Refrigerator Insulation
34	833938 Whirlpool Refrigerator Terminal
34	WP489474 Whirlpool Refrigerator Screw
34	350956 Whirlpool Spray Assembly
