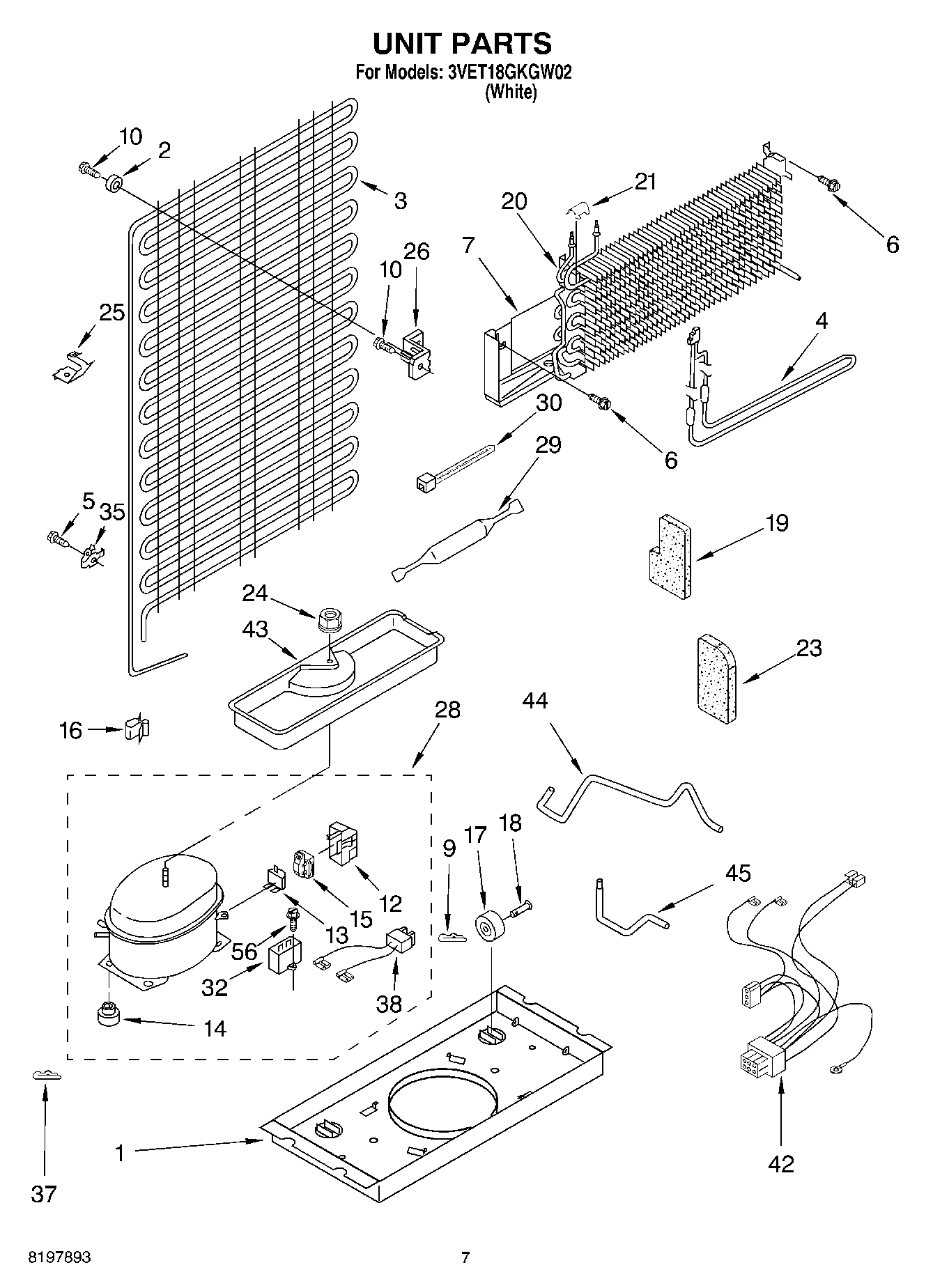

3VET18GKGW02 04 – UNIT

3VET18GKGW02 04 – UNIT

Written by

in

3VET18GKGW02 04 – UNIT

Products

PositionProduct
1WPW10222451 Whirlpool Refrigerator Support
2Bumper
3WP2252730 Whirlpool Refrigerator Condenser
4WP2167357 Whirlpool Refrigerator Heater
5WP965173 Whirlpool Dishwasher Screw
6WP489442 Whirlpool Refrigerator Screw
7Heat Shield
9WP2174706 Whirlpool Refrigerator Pin Hitch
10WP488163 Whirlpool Refrigerator Screw
12WP2162358 Whirlpool Refrigerator Terminal Cover
13Overload
14WP2163786 Whirlpool Refrigerator Grommet
14WP4387558 Whirlpool Refrigerator Compressor Grommet
15WP2262184 Whirlpool Refrigerator Start Relay
16W10812038 Whirlpool Refrigerator Clip
17WPW10475495 Whirlpool Roller Assembly
18W11594405 Whirlpool Axle
198201619 Whirlpool Refrigerator Support Assembly
20WP2263920 Whirlpool Refrigerator Evaporator
219791833 Whirlpool Refrigerator Clip
24285002 Whirlpool Nut
254386951 Whirlpool Refrigerator Clip
26Bracket, Condenser
284387782 Whirlpool Compressor
28876765 Whirlpool Primary Mounting Kit Refrigerator
28Installation Kit
29W10843121 Whirlpool Refrigerator Tube
30WPW10339879 Whirlpool Wire Tie
32WP2201147 Whirlpool Refrigerator Capacitor
35Clip, Tube
37Clip, Compressor
38Wire Assembly
42Wire Assy. Unit
43Tray, Evaporator
44Tube, Discharge
45W11661102 Whirlpool Tube
56VALVE, ACCESS (1/2“)
56VALVE, ACCESS (5/8“)
56876764 Whirlpool Refrigerator Primary Valve
56978027 Whirlpool Refrigerator Primary Valve
56WP978025 Whirlpool Refrigerator Valve
56WP489128 Whirlpool Refrigerator Screw
56978030 Whirlpool Refrigerator Valve
56978026 Whirlpool Refrigerator Primary Valve
