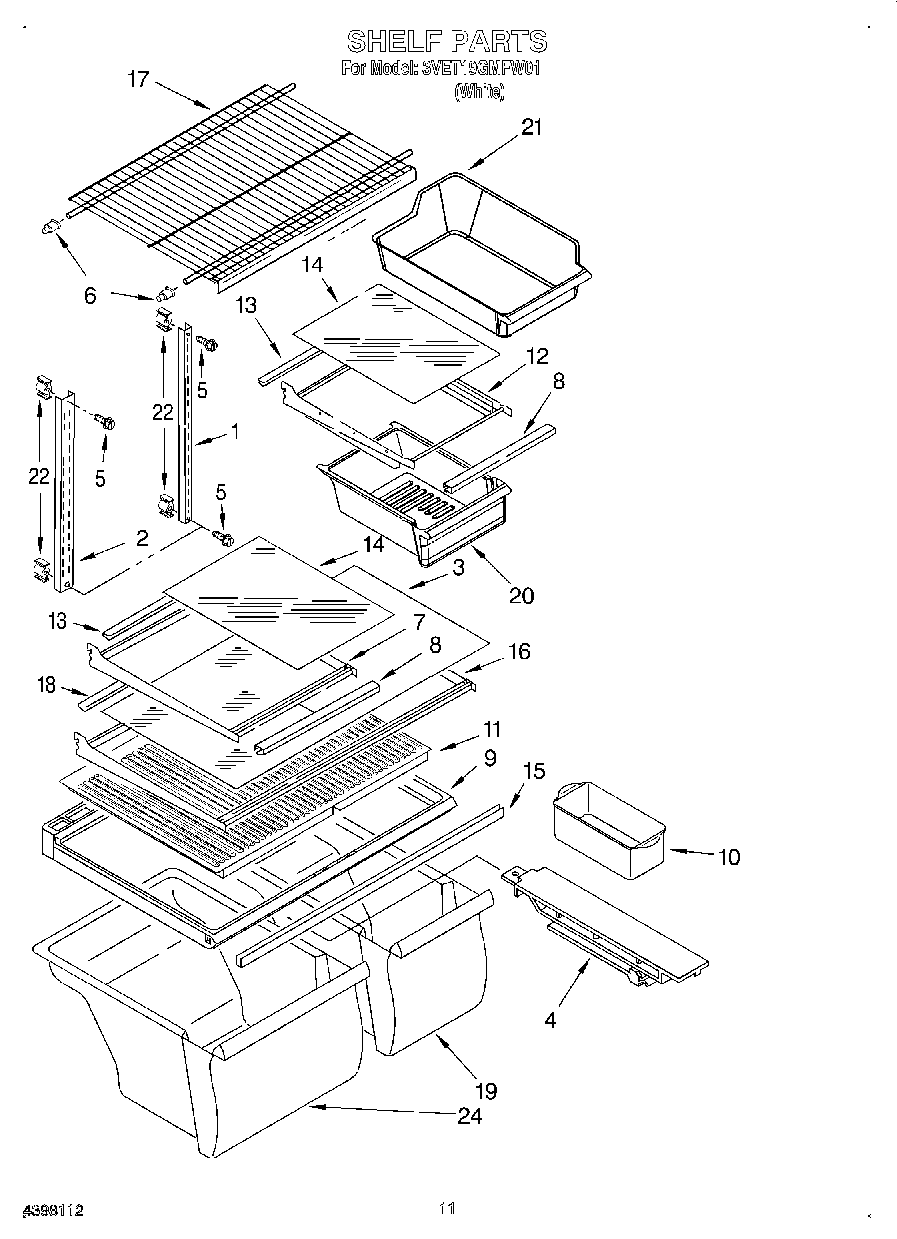

3VET19GMFW01 06 – SHELF, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2195465
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	Torx Key
	WPL LIT677971
	WPL LIT2198830
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	Glass, Full Shelf
4	WP2163835 Whirlpool Track Assembly
5	520965 Whirlpool Refrigerator Support
6	2163762 Whirlpool Refrigerator Cup Assembly
7	Shelf, Cantilever
8	Trim, Shelf
9	WP2314548 Whirlpool Refrigerator Cover
10	W10136387A Whirlpool Refrigerator Egg Container
11	Insert, Crisper Cover
12	Pan Shelf, Cantilever
13	Retainer, Glass
14	Glass, Meat Cover
15	WP2172748 Whirlpool Drawer Support
16	Shelf, Full Cantilever
17	WP2176275 Whirlpool Refrigerator Wire Shelf
18	Trim, Shelf Rear
19	W10856580 Whirlpool Crisper Pan
20	Pan, Meat
21	2254352A Whirlpool Refrigerator Ice Container
22	Support, Screw
24	W10854037 Whirlpool Refrigerator Crisper Pan
100	Door Reversal Instructions
100	Almond (Uncut)
100	WP72107 Whirlpool Touchup
100	799344 Whirlpool Refrigerator Paint
100	72017 Whirlpool Appliance Touch-Up Paint White
100	350930 Whirlpool White Spray Paint
100	Interior Kit, (Includes 1-7)
100	350956 Whirlpool Spray Assembly
100	212643 Whirlpool Refrigerator Permagum Sealer
100	350942 Whirlpool Spray Paint
100	511873 Whirlpool Refrigerator Paint
100	WPL 799832
100	CEMENT, ALUMILASTIC (1 1/4 OZ.)
100	TAPE, VINYL (3/4 X 108“)
100	WP542638 Whirlpool Refrigerator Grease
100	WP505587 Whirlpool Refrigerator Sealer
100	285006 Whirlpool Spray
100	72032 Whirlpool Touch Up Paint Black
100	WPL 876029
100	WP503695 Whirlpool Refrigerator Sealer
100	876370 Whirlpool Refrigerator Insulation
100	833938 Whirlpool Refrigerator Terminal
100	606755 Whirlpool Refrigerator Bag
100	WPL 799833
