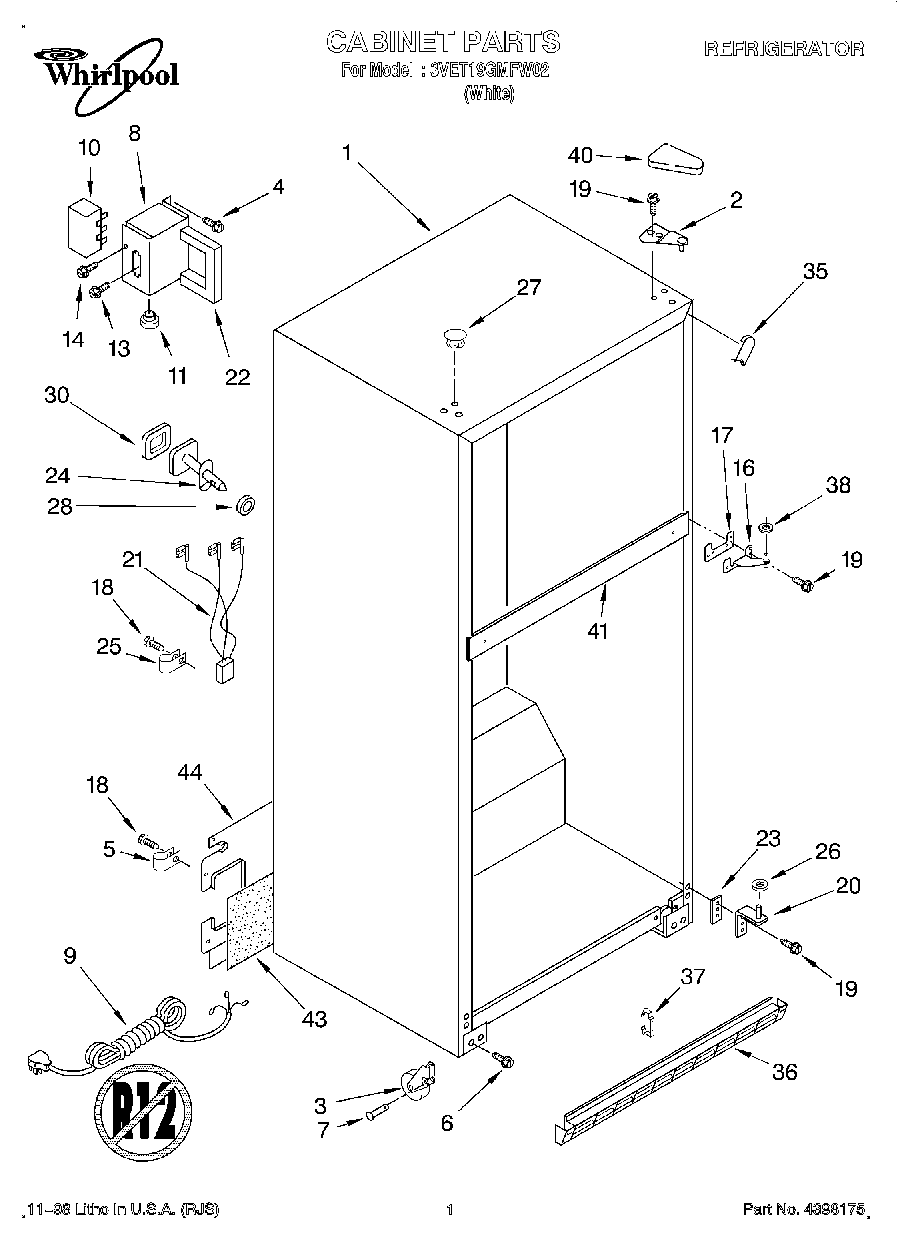

3VET19GMFW02 01 – CABINETadmin2025-04-26T12:24:26+00:003VET19GMFW02 01 – CABINET ProductsPositionProduct1Cabinet (Not A Serviceable Part)2WP2261963 Whirlpool Refrigerator Door Hinge3WP2166108 Whirlpool Refrigerator Cabinet Roller4WP250830 Whirlpool Refrigerator Screw5WP488366 Whirlpool Refrigerator Clamp6Screw7W11594405 Whirlpool Axle8Enclosure, Terminal Block9Service Cord10Terminal Block11Bushing13WPW10272364 Whirlpool Refrigerator Screw14WP489399 Whirlpool Refrigerator Screw16WP2254618 Whirlpool Center Door Hinge17WP2183854 Whirlpool Refrigerator Shim18WP489464 Whirlpool Refrigerator Screw19WP489497 Whirlpool Screw20WP2254473 Whirlpool Refrigerator Door Hinge21Wire Assembly22Gasket23Shim, Bottom Hinge24Fitting, Water Tube (Not Serviced)25489348 Whirlpool Refrigerator Tube Clamp26WP489467 Whirlpool Hinge Shim27WP2151652 Whirlpool Refrigerator Button Plug28Seal, Front (Not Serviced)30Seal, Rear (Not Serviced)35WPW10283959 Whirlpool Refrigerator Filler36WP2254386 Whirlpool Refrigerator Grille37CLIP, GRILLE38WP487576 Whirlpool Washer40WP2213360 Whirlpool Refrigerator Cover41Rail Center (Not Serviced)43Insulation44WP2189475 Whirlpool Refrigerator Unit Cover
