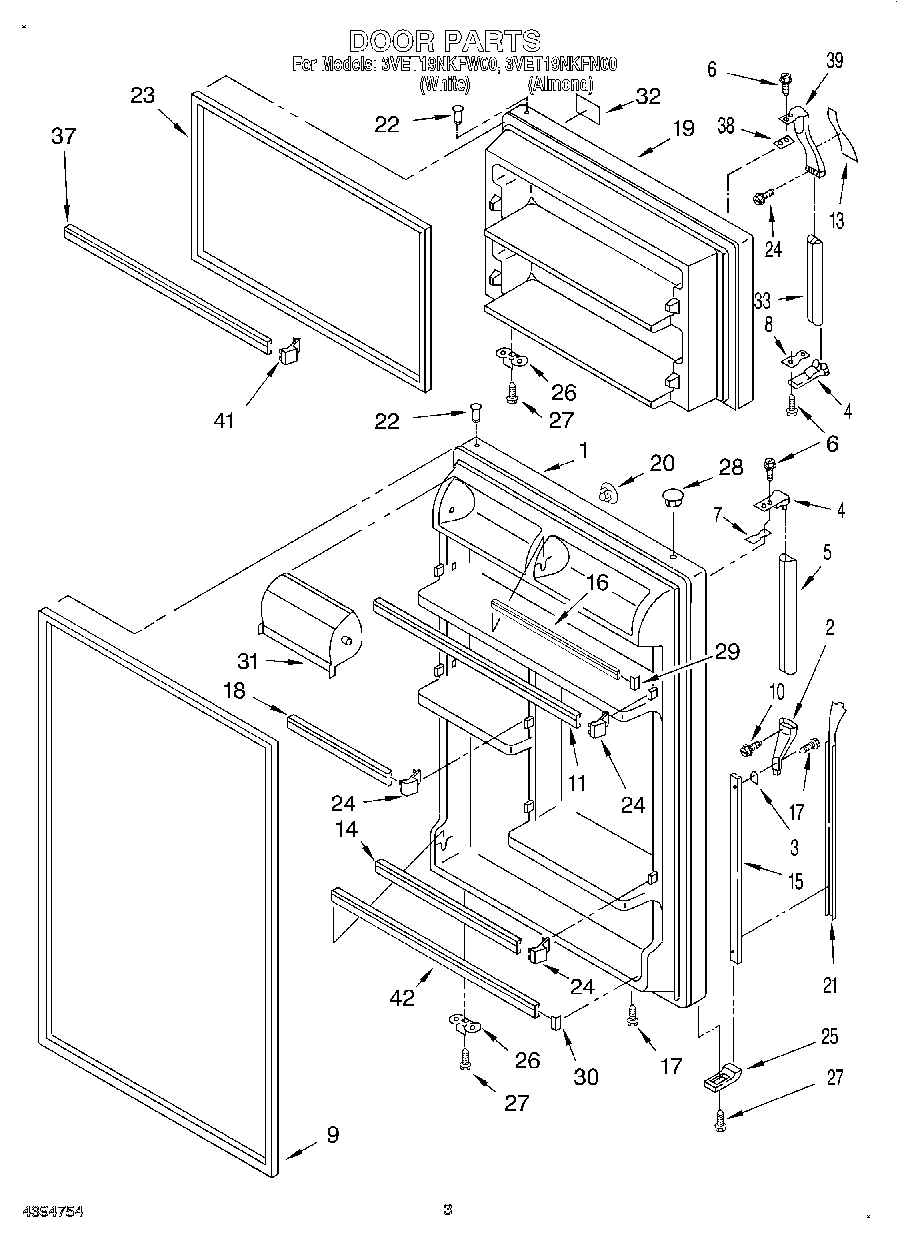

3VET19NKFN00 02 – DOOR

Products

Position	Product
1	Refrigerator Door (Includes No.9 & No.22) (Almond)
1	Refrigerator Door (Includes No.9 & No.22) (White)
2	Handle End, Side
3	Shim
4	Handle End
5	Handle, Center
5	Handle Center (Almond)
6	WP488920 Whirlpool Refrigerator Screw
7	Spa
8	Shim, EndCap (Top)
9	2159057 Whirlpool Refrigerator Fresh Food Door Gasket
10	Screw
11	Trim, Door Shelf
13	Insert, Handle (Almond)
13	Insert, Handle
14	WP2195943 Whirlpool Shelf Retainer Bar
15	Retainer
16	TRIM-DOOR
17	WP488729 Whirlpool Refrigerator Door Screw
18	Trim, Door Shelf
19	Freezer Door (Includes Illus. 4, 17 & 18) (White)
19	Freezer Door (Includes No.22 & No.23) (Almond)
20	Hole Plug (Almond)
20	WP2189000 Whirlpool Refrigerator Handle Plug
21	Insert, Handle (Almond)
21	Insert, Handle (White)
22	WP2183003 Whirlpool Thimble
23	2159327 Whirlpool Refrigerator Door Gasket
24	WP2195915 Whirlpool Door Shelf Support
25	WPL 1105804
26	W11745278 Whirlpool Bracket
27	WP488921 Whirlpool Refrigerator Screw
28	Hole Plug (Almond)
28	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
29	ENDCAP-TRM
30	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31	WP2218113 Whirlpool Dairy Door
32	Nameplate (White)
32	Nameplate (Almond Model)
33	Handle, Center (White)
33	Handle, Center (Almond)
37	Trim, Door Shelf (2)
38	Shim, Handle
39	Handle End, Top
41	ENDCAP
42	WPW10421484 Whirlpool Refrigerator Door Trim
100	FeaturePak (Includes 12,20) Also See Ref. & Frz. Dr. Pgs.
