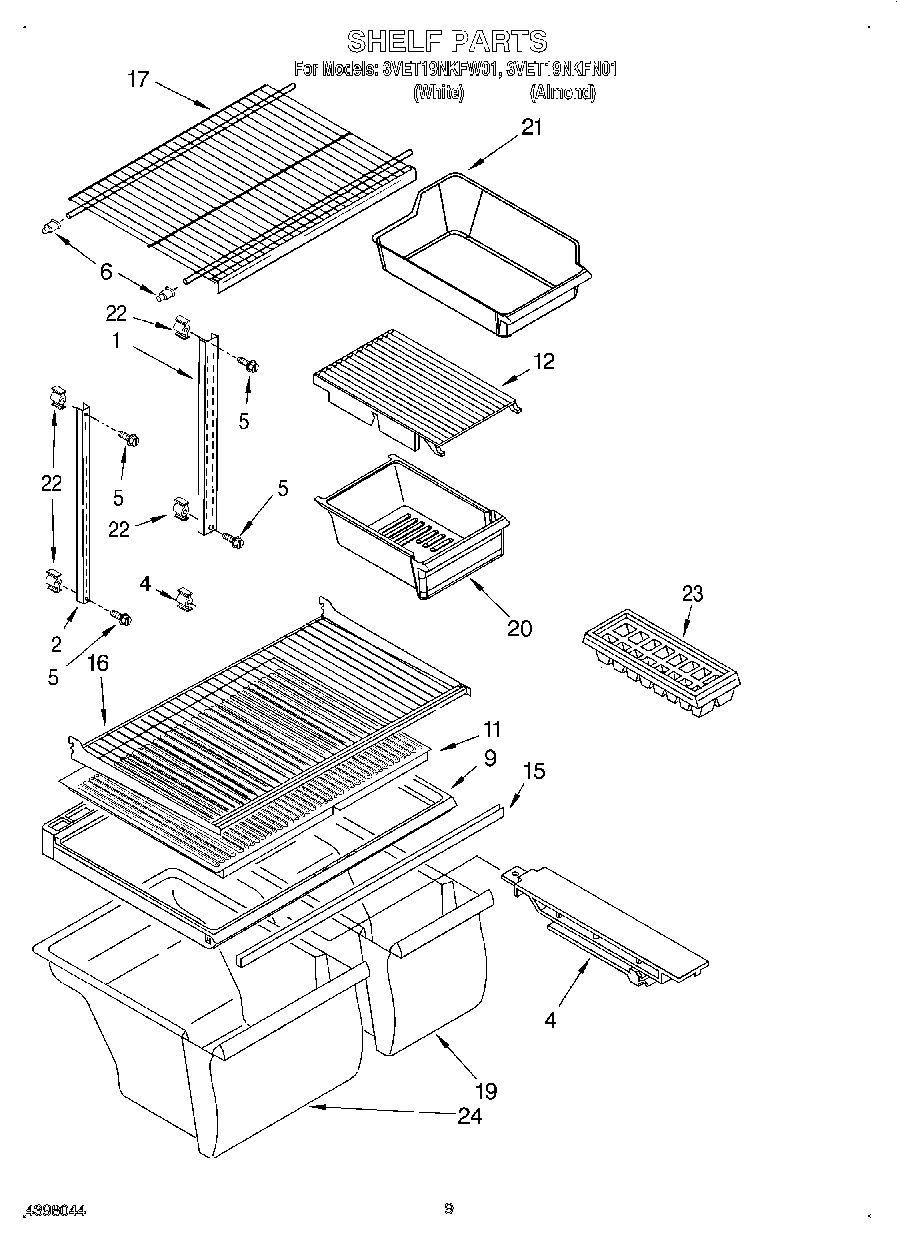

3VET19NKFW01 05 – SHELF, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2195465
	WPL LIT2198830
	WPL LIT677971
	Literature Parts (Do-It-Yourself Manual Ref./Frz.)
	Torx Key
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
4	WP2163835 Whirlpool Track Assembly
5	W11544659 Whirlpool Refrigerator Screw
6	2163762 Whirlpool Refrigerator Cup Assembly
9	WP2314548 Whirlpool Refrigerator Cover
11	Insert, Crisper Cover
12	Cover, Meat Pan
15	WP2172748 Whirlpool Drawer Support
16	Shelf, Full Cantilever
17	WP2176275 Whirlpool Refrigerator Wire Shelf
19	W10856580 Whirlpool Crisper Pan
20	Pan, Meat
21	2254352A Whirlpool Refrigerator Ice Container
22	Support, Screw
23	WP841180A Whirlpool Microwave Glass Turntable Tray
24	W10854037 Whirlpool Refrigerator Crisper Pan
100	833938 Whirlpool Refrigerator Terminal
100	350930 Whirlpool White Spray Paint
100	876370 Whirlpool Refrigerator Insulation
100	799344 Whirlpool Refrigerator Paint
100	72017 Whirlpool Appliance Touch-Up Paint White
100	350956 Whirlpool Spray Assembly
100	606755 Whirlpool Refrigerator Bag
100	Almond (Uncut)
100	FeaturePak (Includes 12,20) Also See Ref. & Frz. Dr. Pgs.
100	Door Reversal Instructions
100	WP542638 Whirlpool Refrigerator Grease
100	72032 Whirlpool Touch Up Paint Black
100	350942 Whirlpool Spray Paint
100	TAPE, VINYL (3/4 X 108“)
100	WPL 799832
100	WPL 799833
100	WPL 876029
100	212643 Whirlpool Refrigerator Permagum Sealer
100	WP72107 Whirlpool Touchup
100	WP505587 Whirlpool Refrigerator Sealer
100	WP503695 Whirlpool Refrigerator Sealer
100	CEMENT, ALUMILASTIC (1 1/4 OZ.)
100	285006 Whirlpool Spray
100	511873 Whirlpool Refrigerator Paint
