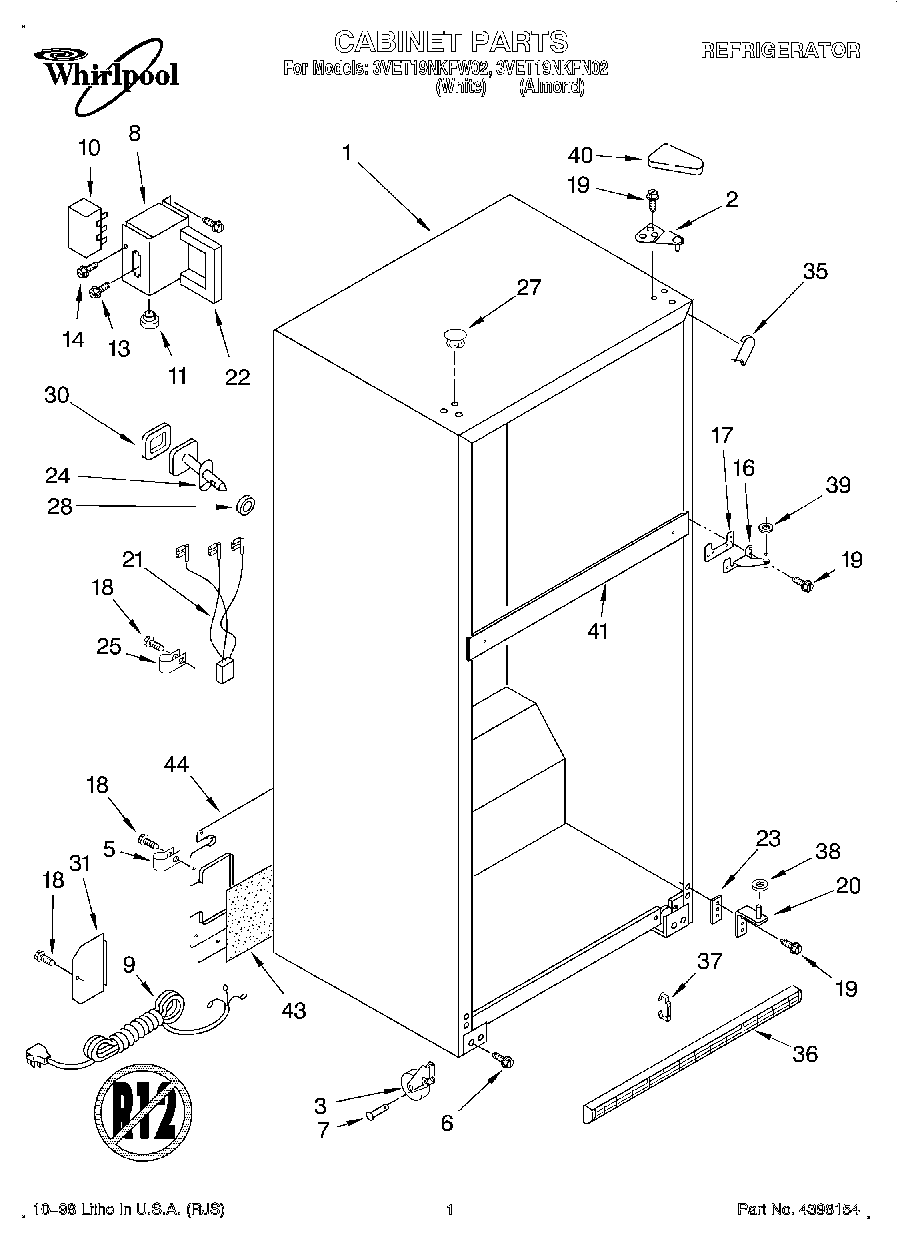

3VET19NKFW02 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
5	WP488366 Whirlpool Refrigerator Clamp
6	Screw
7	W11594405 Whirlpool Axle
8	Enclosure, Terminal Block
9	Service Cord
10	Terminal Block
11	Bushing
13	WPW10272364 Whirlpool Refrigerator Screw
14	WP489399 Whirlpool Refrigerator Screw
16	WP2254618 Whirlpool Center Door Hinge
17	WP2183854 Whirlpool Refrigerator Shim
18	WP489464 Whirlpool Refrigerator Screw
19	WP489497 Whirlpool Screw
20	WP2254473 Whirlpool Refrigerator Door Hinge
21	Wire Assembly
22	Gasket
23	Shim, Bottom Hinge
24	Fitting, Water Tube (Not Serviced)
25	489348 Whirlpool Refrigerator Tube Clamp
27	WP2151652 Whirlpool Refrigerator Button Plug
27	Hole Plug (6) (Almond)
28	Seal, Front (Not Serviced)
30	Seal, Rear (Not Serviced)
31	Cover, Water Valve
35	WPW10283959 Whirlpool Refrigerator Filler
35	Corner Filler (2) (Almond)
36	Grille (Almond)
36	WP2254386 Whirlpool Refrigerator Grille
37	CLIP, GRILLE
38	WP487576 Whirlpool Washer
39	WP489467 Whirlpool Hinge Shim
40	Cover, Hinge (Almond)
40	WP2213360 Whirlpool Refrigerator Cover
41	Rail Center (Not Serviced)
43	Insulation
44	WP2189475 Whirlpool Refrigerator Unit Cover
