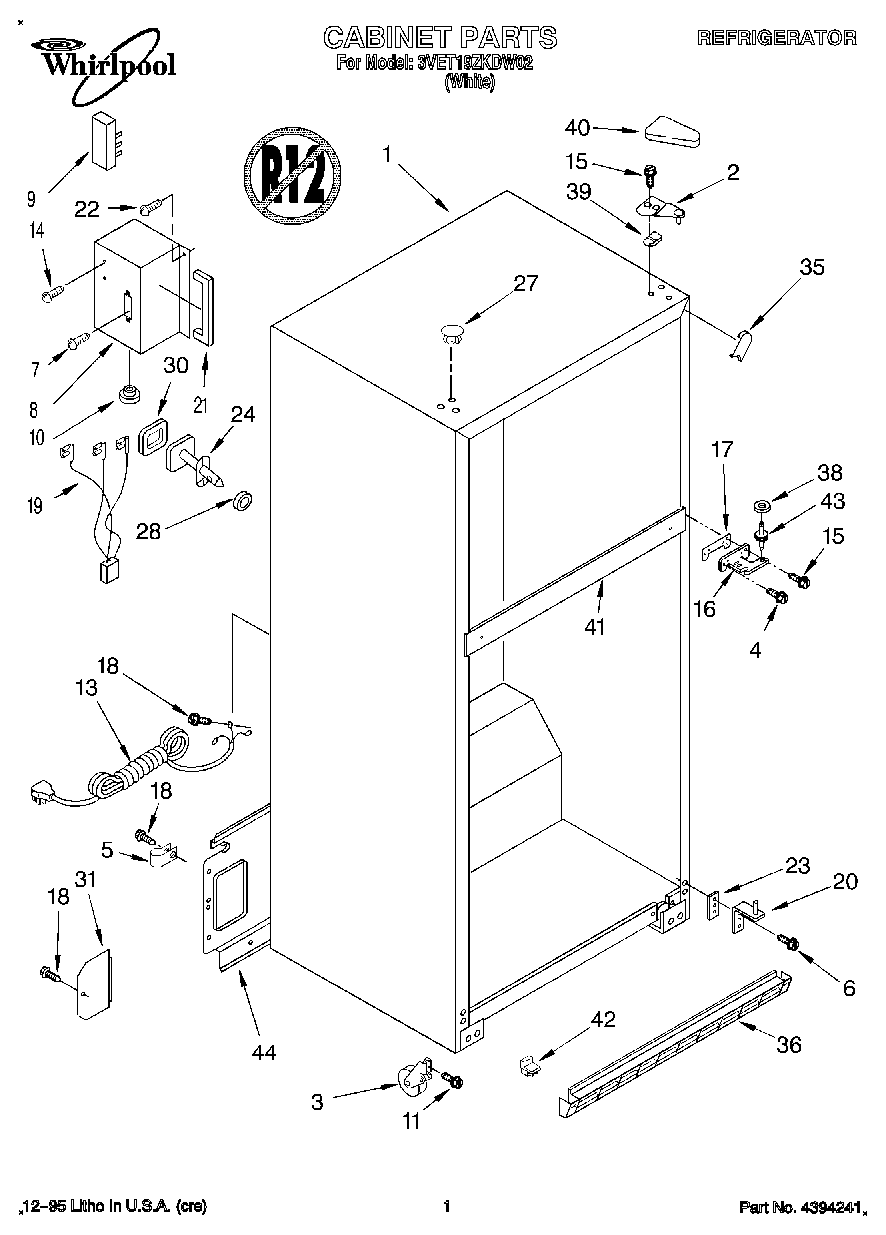

3VET19ZKDW02 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	WP2189412 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	Screw
5	WP488366 Whirlpool Refrigerator Clamp
6	Screw
7	WPW10272364 Whirlpool Refrigerator Screw
8	Enclosure, Term.
9	Terminal Block
10	Bushing
11	Screw
13	Service Cord
14	Screw
15	WP999367 Whirlpool Refrigerator Screw
17	Shim, Hinge Center
18	WP489463 Whirlpool Refrigerator Screw
19	Wire Assembly, Terminal Box
20	Hinge, Butt
21	Gasket
22	WP250830 Whirlpool Refrigerator Screw
23	Shim, Bottom Hinge
24	Fitting, Water Tube (Not Serviced)
27	WP2151652 Whirlpool Refrigerator Button Plug
28	Seal, Front (Not Serviced)
30	Seal, Rear (Not Serviced)
31	Cover, Water Valve
35	WPW10283959 Whirlpool Refrigerator Filler
36	Grille
38	WP487576 Whirlpool Washer
39	Shim, Hinge Top
40	WP2213360 Whirlpool Refrigerator Cover
41	Rail Center (Not Serviced)
42	Corner Filler, Grille (White)
43	WP2254618 Whirlpool Center Door Hinge
44	Cover, Unit
