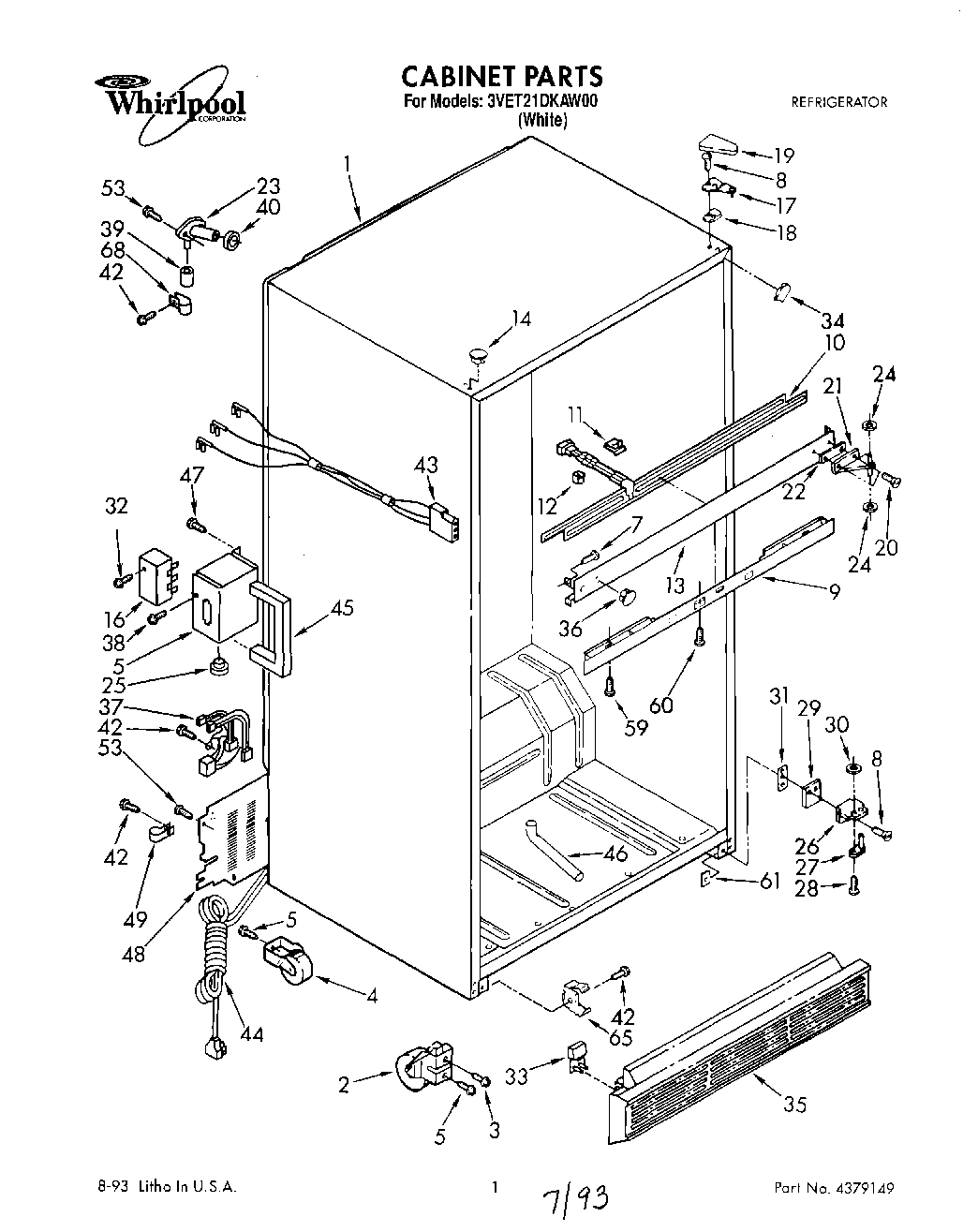

3VET21DKAW00 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Front Roller (2)
3	Screw, 5/16-24 x 1-1/4
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	Screw, 1/4-28 x 1/2 (2)
7	WP489464 Whirlpool Refrigerator Screw
9	Control, Front Cover
10	Heater, Mullion
11	Clip, Center Rail (4)
12	Spacer (3)
13	Center Rail (White)
14	WP2151652 Whirlpool Refrigerator Button Plug
15	Enclosure, Term.
16	Terminal Block
17	WP2189412 Whirlpool Refrigerator Door Hinge
18	Shim, Hinge Top
19	WP2213360 Whirlpool Refrigerator Cover
20	WP999367 Whirlpool Refrigerator Screw
21	Hinge, Center
22	Shim, Hinge Center
23	WP2196157 Whirlpool Fill Tube
24	WP487802 Whirlpool Refrigerator Washer
25	Bushing
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw 10-32 x 5/16
29	Shim, Bottom
31	Spacer
32	WPW10272364 Whirlpool Refrigerator Screw
33	Corner Filler, Grille (White)
34	Filler, Wrapper Corner (2) (White)
35	Grille (White)
36	Hole Plug (4) (White)
37	Wiring Assy. Intermediate
38	Screw
39	WP487996 Whirlpool Refrigerator Cap Tube
40	WP1106508 Whirlpool Refrigerator Gasket
42	WP489478 Whirlpool Refrigerator Screw
43	Wiring Assembly, Terminal Block
44	Service Cord
45	Gasket
46	Drain Extension
47	WP250830 Whirlpool Refrigerator Screw
48	Cover, Unit
49	489348 Whirlpool Refrigerator Tube Clamp
59	WP488163 Whirlpool Refrigerator Screw
60	WP489174 Whirlpool Refrigerator Screw
61	Tap Plate (2)
65	WP2155013 Whirlpool Refrigerator Clip
68	WP488366 Whirlpool Refrigerator Clamp
