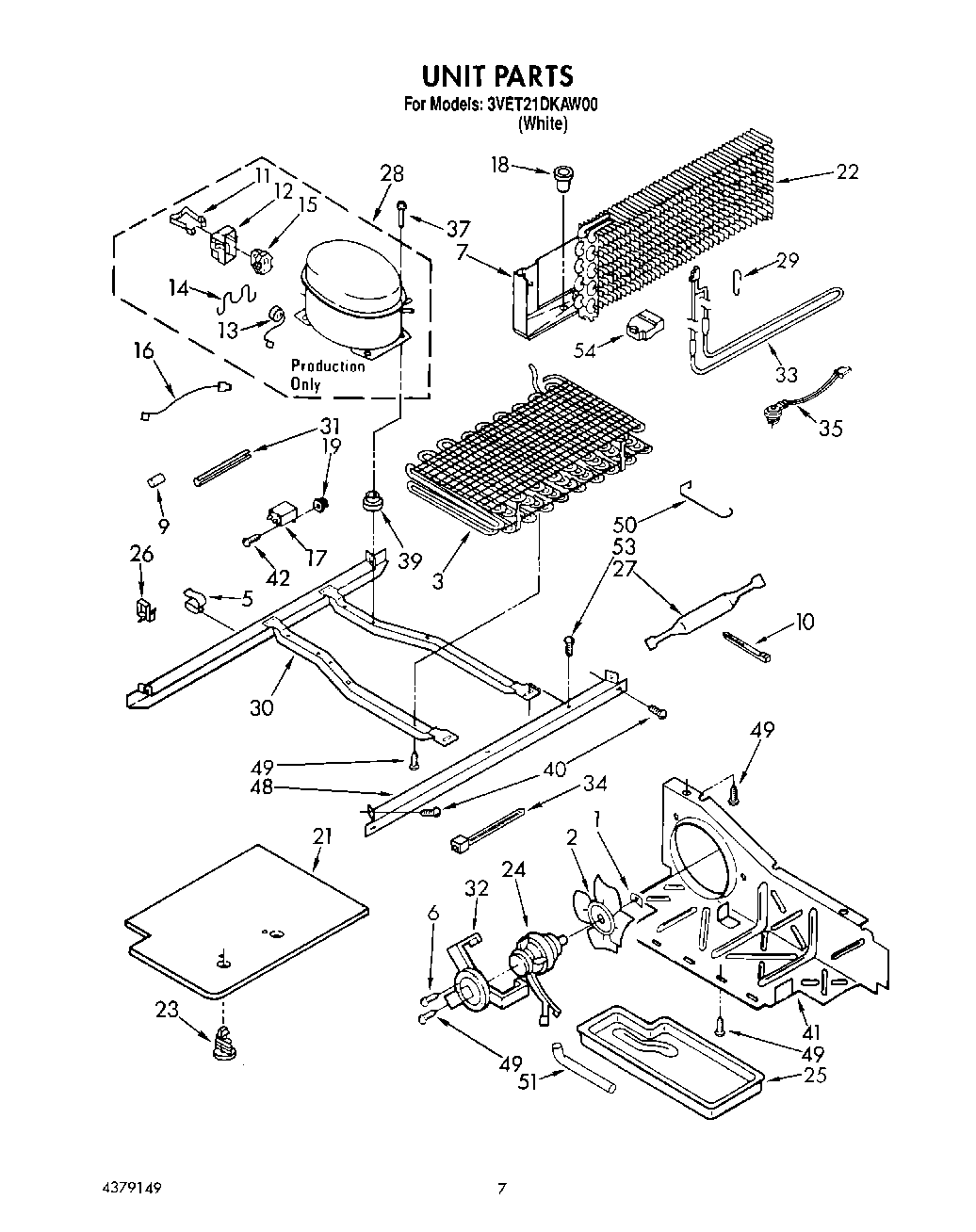

3VET21DKAW00 05 – UNIT

Products

PositionProduct
1WP486692 Whirlpool Refrigerator Nut
2Fan, Blade
3Condenser Assembly
5Clip, Wire (2)
6681390 Whirlpool Refrigerator Screw
7Drain Pan/ Heat Shield
9WP2158826 Whirlpool Refrigerator Dampener
10WPW10339879 Whirlpool Wire Tie
11Strap
12Cover
13Overload
14Spring, Overload
15Relay
16Wire, Assembly Overload
17Capacitor
18Drain Fitting
19Screw Grommet
21Cover-Unit Btm.
22Evaporator
23489396 Whirlpool Refrigerator Clip
248201703 Whirlpool Refrigerator Condenser Motor
25WPW10614158 Whirlpool Refrigerator Evaporator Tray
26W10169512 Whirlpool Clip
27W10843121 Whirlpool Refrigerator Tube
28876765 Whirlpool Primary Mounting Kit Refrigerator
28Compressor (Includes Items 11, (Also Order)
29Support, Heater
30Unit Mounting Frame
31SLEEVE
32Fan, Motor Bracket
33Heater, Defrost
35WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
37Screw
39Grommet (Production)
40489340 Whirlpool Refrigerator Screw
41Air, Baffle
42W11693756 Whirlpool Screw Assembly
48Unit Mounting Rail
49WP489464 Whirlpool Refrigerator Screw
501105612 Whirlpool Fan Guard
51Drain Extension
53Screw, 1/4-28 x 1/2 (2)
54876764 Whirlpool Refrigerator Primary Valve
54VALVE, ACCESS (5/8“)
54978026 Whirlpool Refrigerator Primary Valve
54978027 Whirlpool Refrigerator Primary Valve
54Support-Evaporator (L.S.)
54978030 Whirlpool Refrigerator Valve
54Support (R.S.)
54VALVE, ACCESS (1/2“)
54WP978025 Whirlpool Refrigerator Valve
