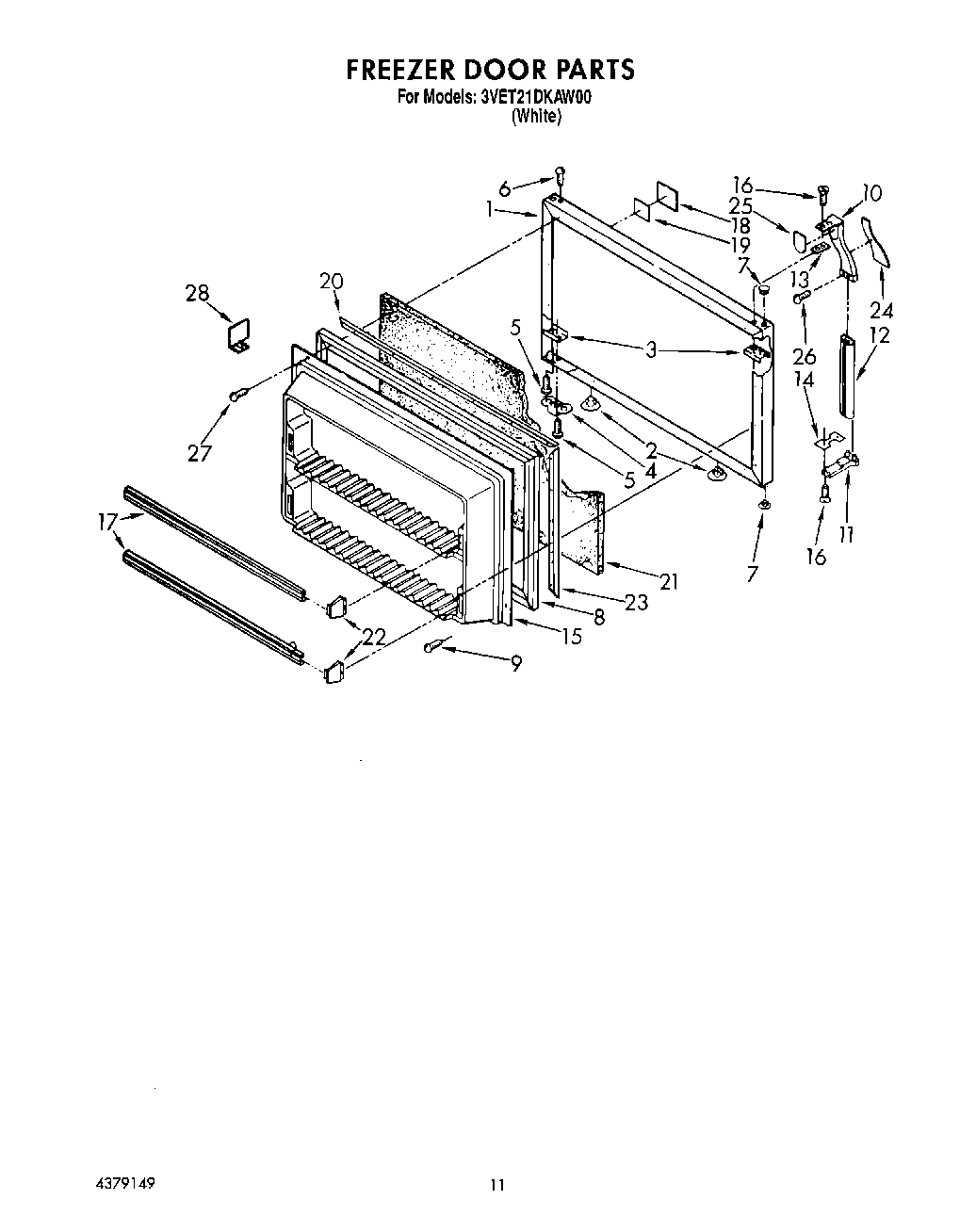

3VET21DKAW00 07 – FREEZER DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2158676
	Torx Key
	WPL LIT2170034
1	Panel, Freezer Door (Also Order Item 21) (White)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
8	2188460A Whirlpool Refrigerator Door Gasket
9	WP489069 Whirlpool Compactor Screw
10	Handle End, Top
11	Handle End
12	Handle, Center (White)
13	Shim, Handle
14	Spa
15	Interior Door Panel
16	WP488920 Whirlpool Refrigerator Screw
17	Trim, Door Shelf (2)
18	Nameplate
19	Tape Strip
20	Gasket Retainer, Top & Bottom
22	4386917 Whirlpool Endcap Kit
23	Retainer, Gasket
24	Insert, Handle
25	Shim, EndCap (Top)
26	Screw
27	WP488729 Whirlpool Refrigerator Door Screw
28	WP542638 Whirlpool Refrigerator Grease
28	WP505587 Whirlpool Refrigerator Sealer
28	Divider-Door
28	876370 Whirlpool Refrigerator Insulation
28	833938 Whirlpool Refrigerator Terminal
28	Almond (Uncut)
28	WP503695 Whirlpool Refrigerator Sealer
28	606755 Whirlpool Refrigerator Bag
28	511873 Whirlpool Refrigerator Paint
28	350930 Whirlpool White Spray Paint
28	72017 Whirlpool Appliance Touch-Up Paint White
28	212643 Whirlpool Refrigerator Permagum Sealer
28	350942 Whirlpool Spray Paint
28	Golden Harvest (Uncut)
28	WPL 876029
28	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
28	285006 Whirlpool Spray
28	72032 Whirlpool Touch Up Paint Black
28	WPL 799833
28	CEMENT, ALUMILASTIC (1 1/4 OZ.)
28	Leveler (Thinner)
28	WP72107 Whirlpool Touchup
28	799344 Whirlpool Refrigerator Paint
28	TAPE, VINYL (3/4 X 108``)
28	350956 Whirlpool Spray Assembly
