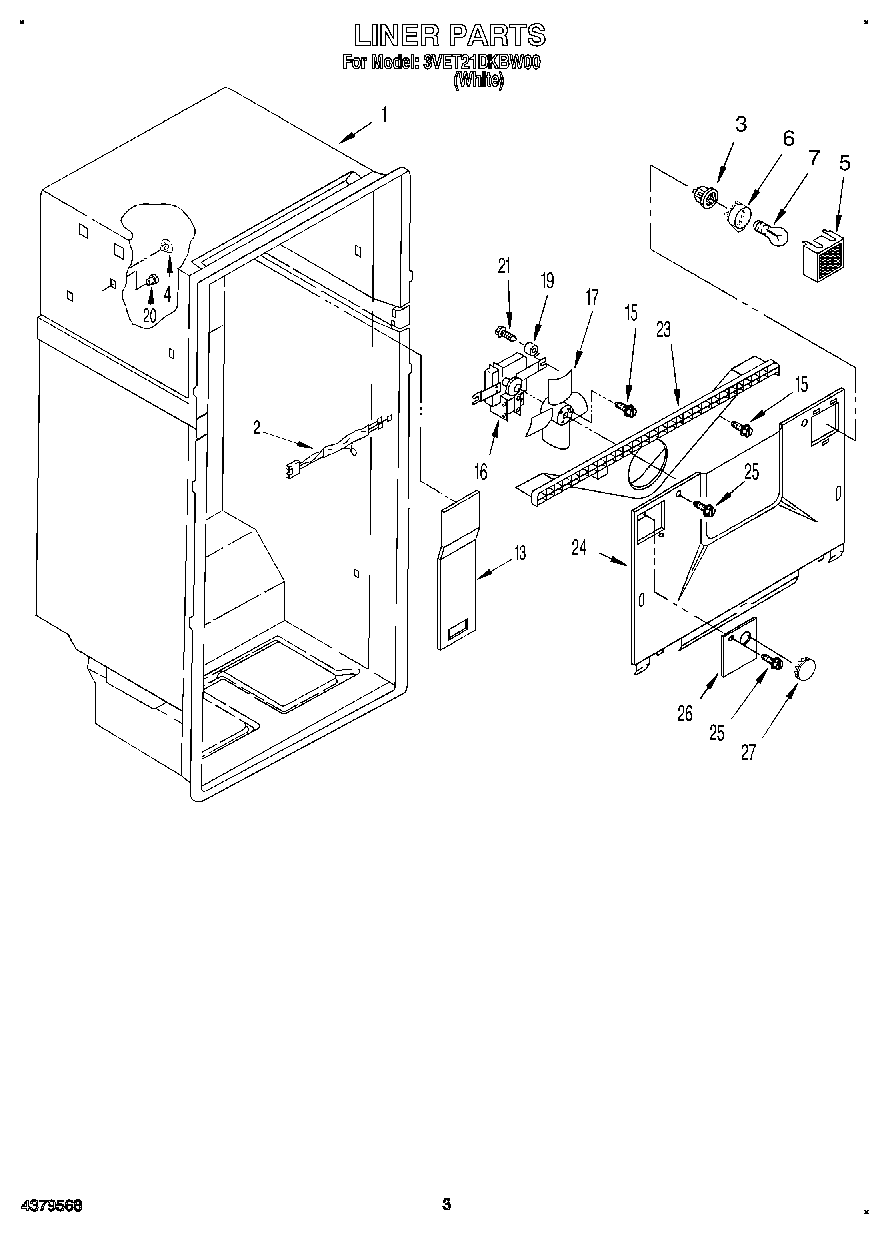

3VET21DKBW00 02 – LINER

3VET21DKBW00 02 – LINER

Written by

in

3VET21DKBW00 02 – LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Wiring, Fan Motor
3SOCKET
4WP941839 Whirlpool Refrigerator Button Plug
5Light Lens
6Shroud, Light
7WP67002552 Whirlpool Refrigerator Light Bulb
13Cover, Air Duct
15WP489478 Whirlpool Refrigerator Screw
16Motor, Fan
17WP1100938 Whirlpool Refrigerator Fan Blade
19Grommet
20Grommet (8)
21Screw (2)
23Scroll, Fan
24Evaporator Cover
25WP488729 Whirlpool Refrigerator Door Screw
26WP2217784 Whirlpool Refrigerator Cover
27Hole Plug
