3VET21DKBW00 06 – REFRIGERATOR DOOR

3VET21DKBW00 06 – REFRIGERATOR DOOR

Written by

in

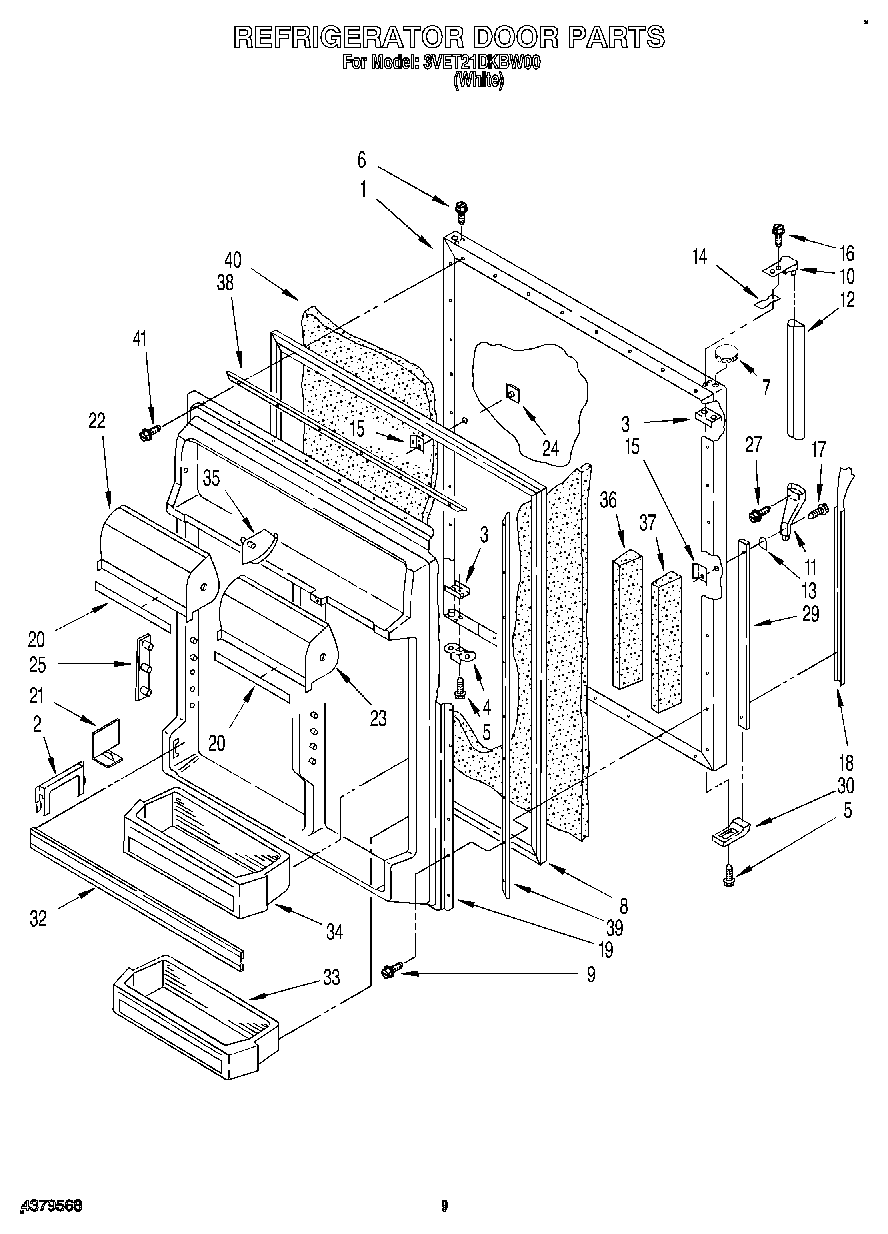

3VET21DKBW00 06 – REFRIGERATOR DOOR

Products

PositionProduct
1Panel, Refrigerator Door (Also Order Item 27) (White)
2Retainer, Bottle
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6WP8281206 Whirlpool Refrigerator Screw
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82188450A Whirlpool Refrigerator Door Gasket
9WP489069 Whirlpool Compactor Screw
10Handle End
11Handle End, Side
12Handle, Center
13Shim
14Spa
15WP939101 Whirlpool Refrigerator Plate
16WP488920 Whirlpool Refrigerator Screw
17WP488729 Whirlpool Refrigerator Door Screw
18Insert, Handle (White)
19Interior Door Panel
20Trim, Door Compartment
21Divider (3)
22Compartment Door,
23Compartment Door
24WP2189000 Whirlpool Refrigerator Handle Plug
25Pin Plate (8)
27Screw
29Retainer, Insert
30WPL 1105804
32WPL 2162831
33WPL 2162894
34WPL 2162895
35WP1118001 Whirlpool Hinge Pin
36WPL 1122711
37WPL 1122709
38Gasket Retainer, Top & Bottom
39Gasket, Retainer
40WPL 876029
