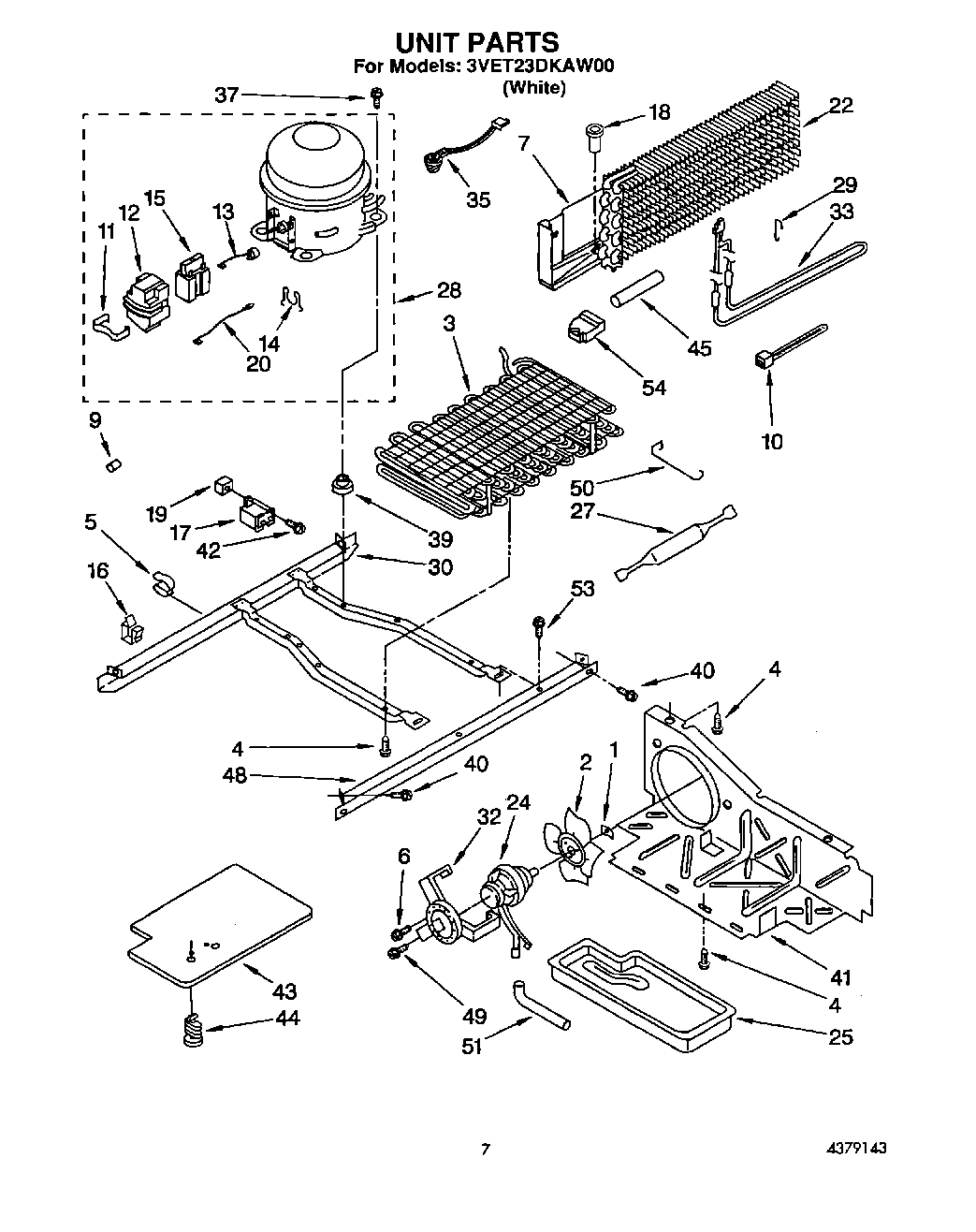

3VET23DKAW00 05 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
3	Condenser Assembly
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire (2)
6	681390 Whirlpool Refrigerator Screw
7	Drain Pan/ Heat Shield
9	WP2158826 Whirlpool Refrigerator Dampener
10	WPW10339879 Whirlpool Wire Tie
11	Strap
12	Cover
13	Overload
14	Spring, Overload
15	Relay
16	W10169512 Whirlpool Clip
17	Capacitor
18	Drain Fitting
19	Screw Grommet
20	Wire, Assembly Overload
22	Evaporator
24	8201703 Whirlpool Refrigerator Condenser Motor
25	Tray, Evaporator
27	W10843121 Whirlpool Refrigerator Tube
28	Compressor (Includes Items 11, (Also Order)
28	876765 Whirlpool Primary Mounting Kit Refrigerator
29	Support, Heater
30	2304903 Whirlpool Refrigerator Frame
32	Fan, Motor Bracket
33	Heater, Defrost
35	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
37	Screw
39	Grommet (Production)
40	489340 Whirlpool Refrigerator Screw
41	Air Baffle
42	W11693756 Whirlpool Screw Assembly
43	Cover-Unit Btm.
44	489396 Whirlpool Refrigerator Clip
45	SLEEVE
48	Unit Mounting Rail
50	1105612 Whirlpool Fan Guard
51	Drain Extension
53	WP489427 Whirlpool Refrigerator Screw
54	VALVE, ACCESS (1/2“)
54	VALVE, ACCESS (5/8“)
54	Support-Evaporator (L.S.)
54	978026 Whirlpool Refrigerator Primary Valve
54	978027 Whirlpool Refrigerator Primary Valve
54	978030 Whirlpool Refrigerator Valve
54	WP978025 Whirlpool Refrigerator Valve
54	876764 Whirlpool Refrigerator Primary Valve
54	Support (R.S.)
