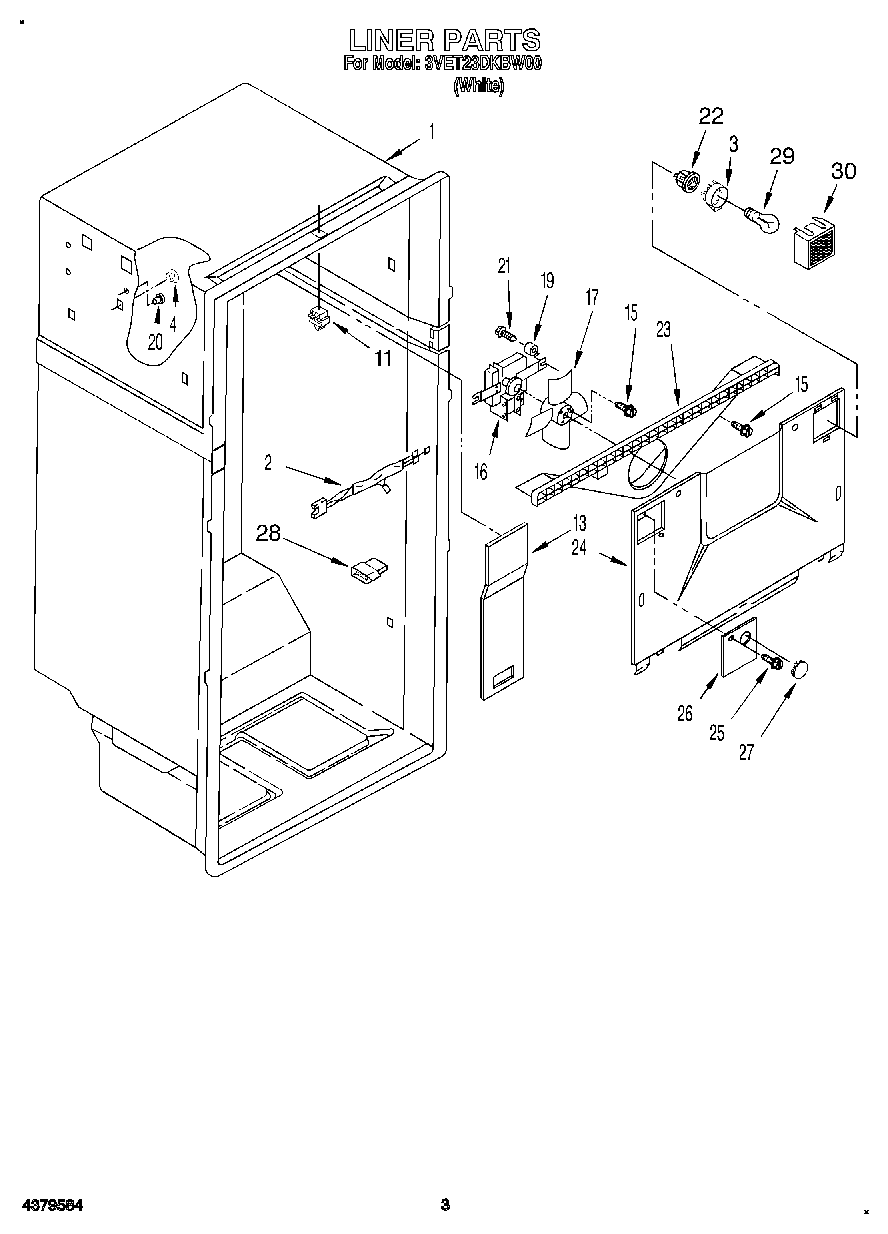

3VET23DKBW00 02 – LINER

3VET23DKBW00 02 – LINER

Written by

in

3VET23DKBW00 02 – LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Wiring, Fan Motor
3Shroud, Light
4WP941839 Whirlpool Refrigerator Button Plug
11W11384469 Whirlpool Door Switch
13Cover, Air Duct
15WP489478 Whirlpool Refrigerator Screw
16Motor, Fan
17WP1100938 Whirlpool Refrigerator Fan Blade
19Grommet
20Grommet (8)
21Screw (2)
22SOCKET
23Scroll, Fan
24Evaporator Cover
25WP488729 Whirlpool Refrigerator Door Screw
26WP2217784 Whirlpool Refrigerator Cover
27Hole Plug
28WP717253 Whirlpool Dishwasher Connector
29WP67002552 Whirlpool Refrigerator Light Bulb
30Light Lens
