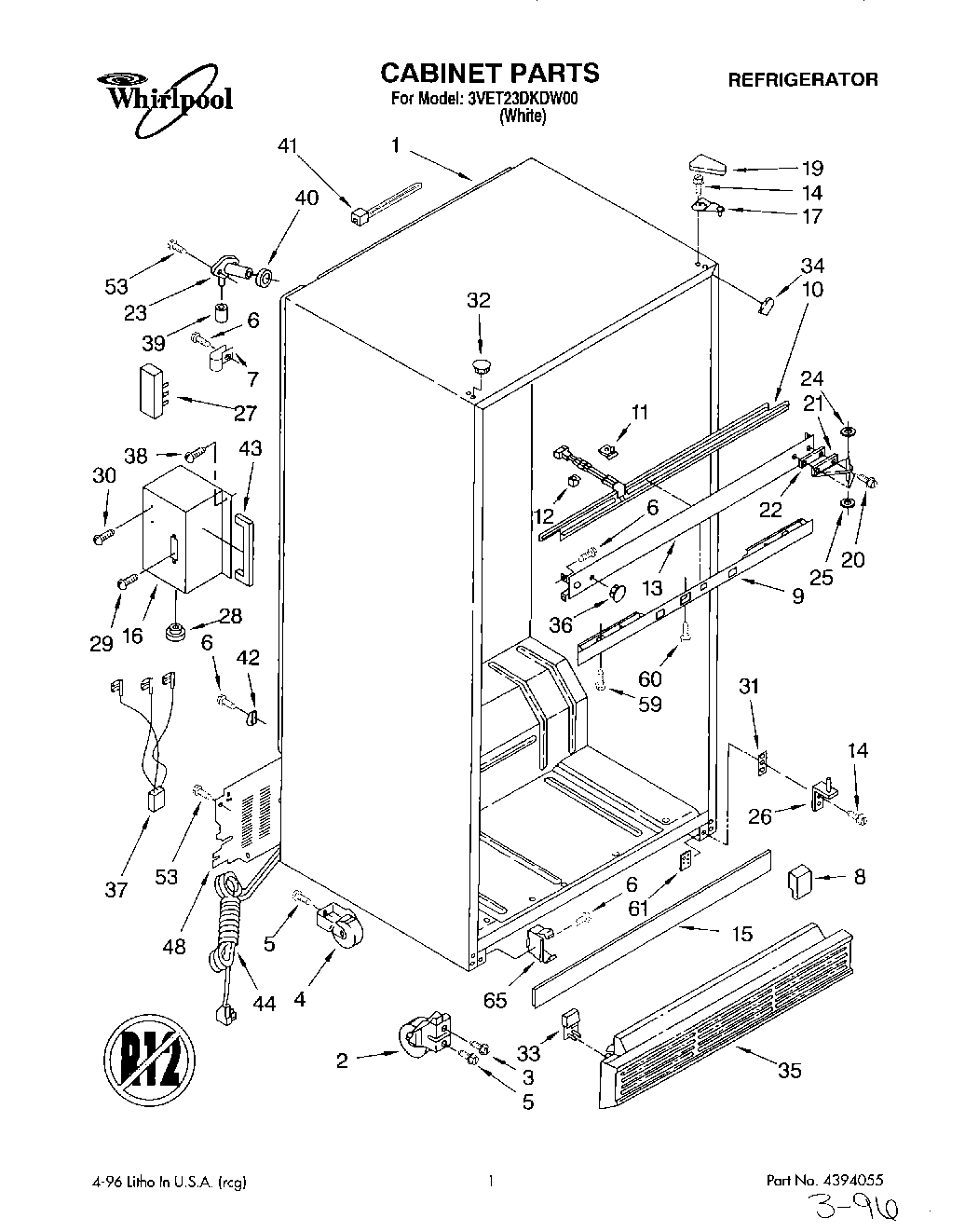

3VET23DKDW00 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP489478 Whirlpool Refrigerator Screw
7	WP488366 Whirlpool Refrigerator Clamp
8	Insert, Air Baffle
9	Control, Front Cover
10	Heater, Mullion
11	Clip, Center Rail (4)
12	Spacer (3)
13	Center Rail
15	Deck Rail Cover
16	Enclosure, Term.
17	WP2189412 Whirlpool Refrigerator Door Hinge
19	WP2213360 Whirlpool Refrigerator Cover
20	WP999367 Whirlpool Refrigerator Screw
21	Hinge, Center
22	Shim, Hinge Center
23	WP2196157 Whirlpool Fill Tube
24	WP487802 Whirlpool Refrigerator Washer
26	WP2254473 Whirlpool Refrigerator Door Hinge
27	Terminal Block
28	Bushing
29	WPW10272364 Whirlpool Refrigerator Screw
30	Screw
31	Spacer
32	WP2151652 Whirlpool Refrigerator Button Plug
33	Corner Filler, Grille (White)
34	Filler, Wrapper Corner (2) (White)
35	Grille (White)
36	Hole Plug (4) (White)
37	Wiring Assembly, Terminal Block
38	WP250830 Whirlpool Refrigerator Screw
39	WP487996 Whirlpool Refrigerator Cap Tube
40	WP1106508 Whirlpool Refrigerator Gasket
41	WPW10339879 Whirlpool Wire Tie
42	489348 Whirlpool Refrigerator Tube Clamp
43	Gasket
44	Service Cord
48	Cover, Unit
59	WP488163 Whirlpool Refrigerator Screw
60	WP489174 Whirlpool Refrigerator Screw
61	Tap-Plate, Bottom Hinge
65	WP2155013 Whirlpool Refrigerator Clip
