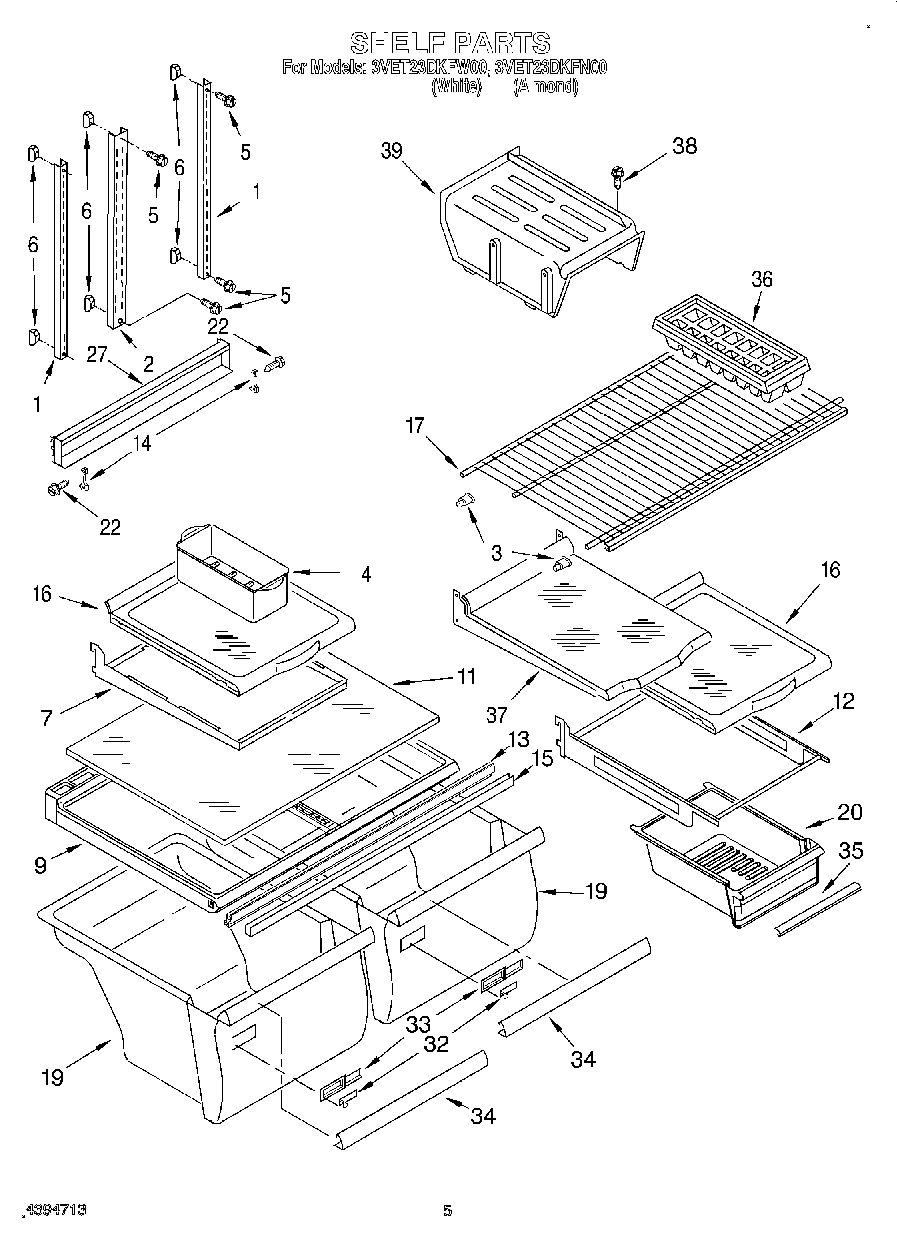

3VET23DKFN00 03 – SHELF

Products

Position	Product
1	Shelf, Ladder (2)
2	Shelf, Ladder Center
3	2163762 Whirlpool Refrigerator Cup Assembly
4	W10136387A Whirlpool Refrigerator Egg Container
5	W11544659 Whirlpool Refrigerator Screw
6	520965 Whirlpool Refrigerator Support
7	Frame Assembly, Shelf (2)
9	WP2314549 Whirlpool Refrigerator Cover
11	WP2176225 Whirlpool Glass Shelf
12	Frame Assembly, Meat Shelf
13	Gasket, Crisper Cover
14	Hook, Shelf
15	WP2172748 Whirlpool Drawer Support
16	WP999520 Whirlpool Refrigerator Glass Shelf
17	Shelf, Freezer
19	W10854037 Whirlpool Refrigerator Crisper Pan
20	WP2218132K Whirlpool Crisper Meat Pan
22	Screw
27	Track Assembly, Shelf
32	WP2176222 Whirlpool Refrigerator Slide
33	WP2212446 Whirlpool Refrigerator Control Body
34	WP2195341 Whirlpool Refrigerator Pan Trim
35	Trim, Meat Pan
36	WP841180A Whirlpool Microwave Glass Turntable Tray
37	Shelf Assembly, Spillguard
38	WP489478 Whirlpool Refrigerator Screw
39	Shelf
100	FeaturePak (Includes 4,12, 14,16,20,22,27, 37) Also See Ref. & Frz Door Pages.
