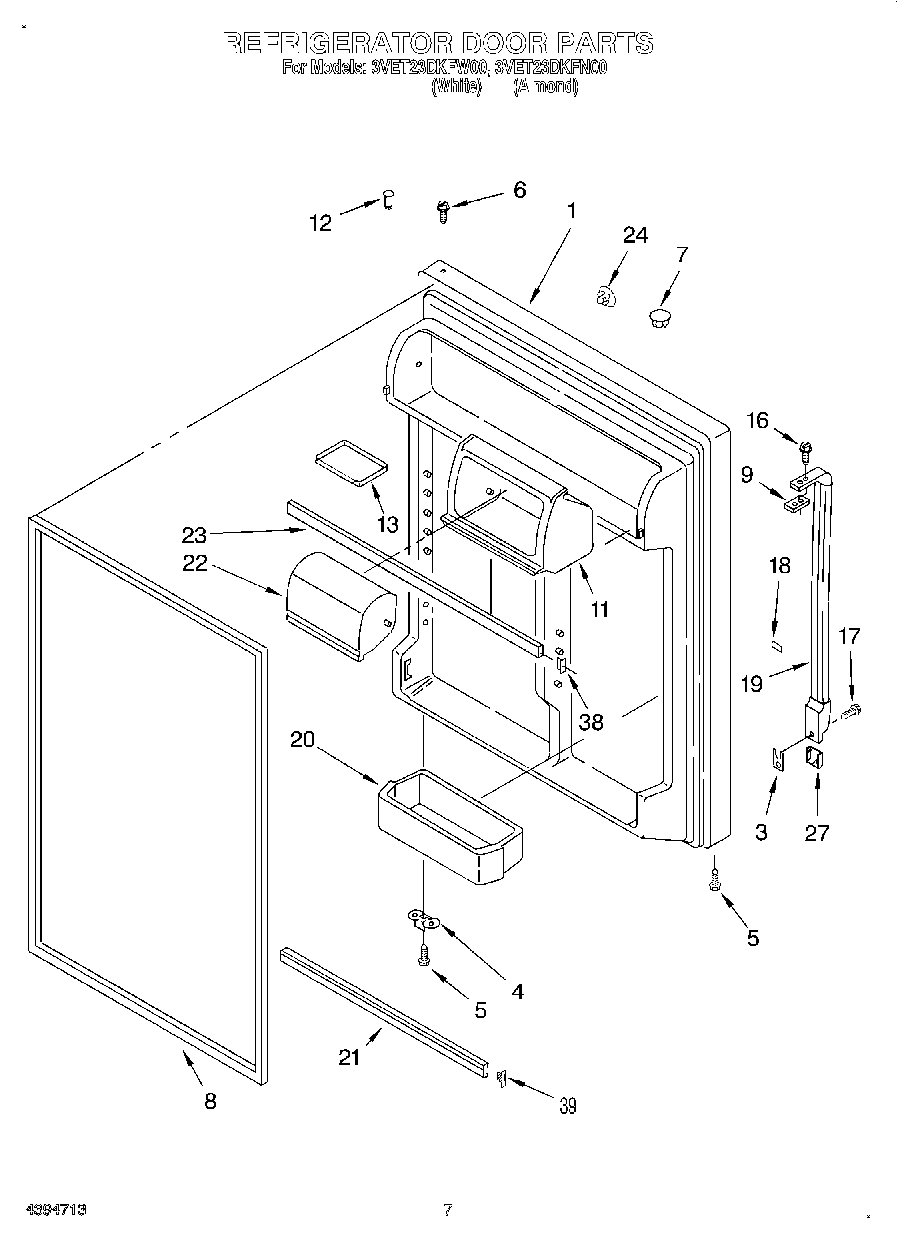

3VET23DKFN00 04 – REFRIGERATOR DOORadmin2025-04-26T12:24:57+00:003VET23DKFN00 04 – REFRIGERATOR DOOR
Products
| Position | Product |
|---|
| 1 | Refrigerator Door (Includes No.8 & No.12) (White) |
| 1 | Refrigerator Door (Includes No.8 & No.12) (Almond) |
| 3 | Shim, Handle |
| 4 | W11745278 Whirlpool Bracket |
| 5 | WP488921 Whirlpool Refrigerator Screw |
| 6 | WP8281206 Whirlpool Refrigerator Screw |
| 7 | WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug |
| 7 | Hole Plug (Almond) |
| 8 | 2159073 Whirlpool Refrigerator Door Gasket |
| 9 | Shim, Bottom |
| 11 | Housing Compartment |
| 12 | WP2183003 Whirlpool Thimble |
| 13 | Tray, Door |
| 16 | WP488920 Whirlpool Refrigerator Screw |
| 17 | WP488729 Whirlpool Refrigerator Door Screw |
| 18 | Shim |
| 19 | Handle (Almond) |
| 19 | Handle (White) |
| 20 | BIN-CNTLVR |
| 21 | WPW10421486 Whirlpool Refrigerator Door Trim |
| 22 | DOOR-COMP |
| 23 | Trim, Door Shelf |
| 24 | WP2189000 Whirlpool Refrigerator Handle Plug |
| 24 | Hole Plug (Almond) |
| 27 | Cover, End Cap (Almond) |
| 27 | Cover, Endcap (White) |
| 38 | Endcap, Door Trim |
| 39 | WP2156006 Whirlpool Refrigerator Shelf Trim Endcap |
| 100 | FeaturePak (Includes 4,12, 14,16,20,22,27, 37) Also See Ref. & Frz Door Pages. |
