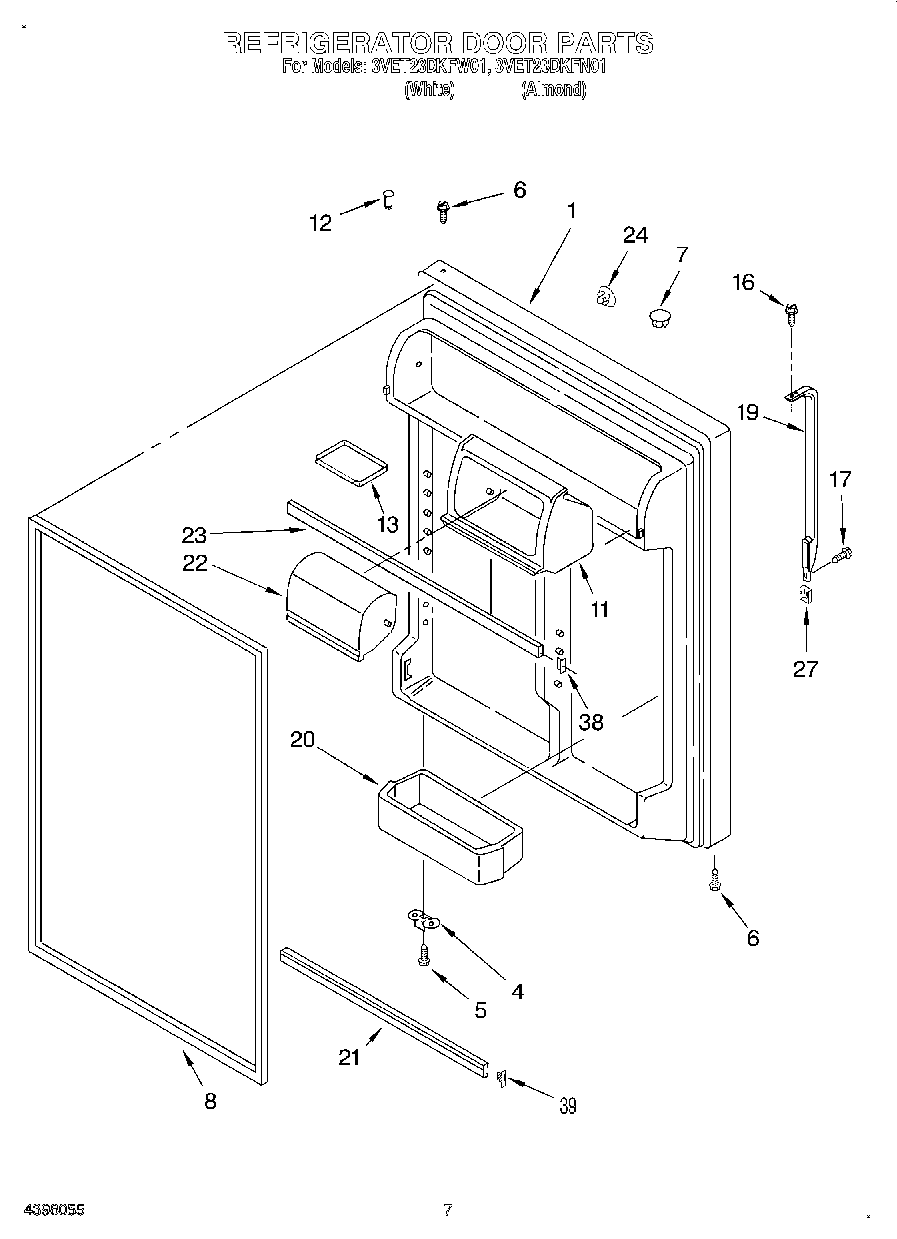

3VET23DKFN01 04 – REFRIGERATOR DOORadmin2025-04-26T12:26:04+00:003VET23DKFN01 04 – REFRIGERATOR DOOR
Products
| Position | Product |
|---|
| 1 | Refrigerator Door (Includes No.8 & No.12) (Almond) |
| 1 | Refrigerator Door (Includes No.8 & No.12) (White) |
| 4 | W11745278 Whirlpool Bracket |
| 5 | WP488921 Whirlpool Refrigerator Screw |
| 6 | WP8281206 Whirlpool Refrigerator Screw |
| 7 | Hole Plug (Almond) |
| 7 | WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug |
| 8 | 2159061 Whirlpool Refrigerator Door Gasket |
| 11 | Housing Compartment |
| 12 | WP2183003 Whirlpool Thimble |
| 13 | Tray, Door |
| 16 | WP489357 Whirlpool Recessed Screw |
| 17 | WP488729 Whirlpool Refrigerator Door Screw |
| 19 | Handle Center (Almond) |
| 19 | 4388947 Whirlpool Refrigerator Door Handle Kit, Set of 2, White |
| 20 | BIN-CNTLVR |
| 21 | WPW10421486 Whirlpool Refrigerator Door Trim |
| 22 | DOOR-COMP |
| 23 | Trim, Door Shelf |
| 24 | WP2189000 Whirlpool Refrigerator Handle Plug |
| 24 | Hole Plug (Almond) |
| 27 | Endcap, Handle (2) (Almond) |
| 27 | WP2193353W Whirlpool Refrigerator Trim Handle |
| 38 | Endcap, Door Trim |
| 39 | WP2156006 Whirlpool Refrigerator Shelf Trim Endcap |
| 100 | FeaturePak (Includes 11,13, 20,21,22,23,38, 39) Also See Frz. Dr. & Shelf Pgs. |
