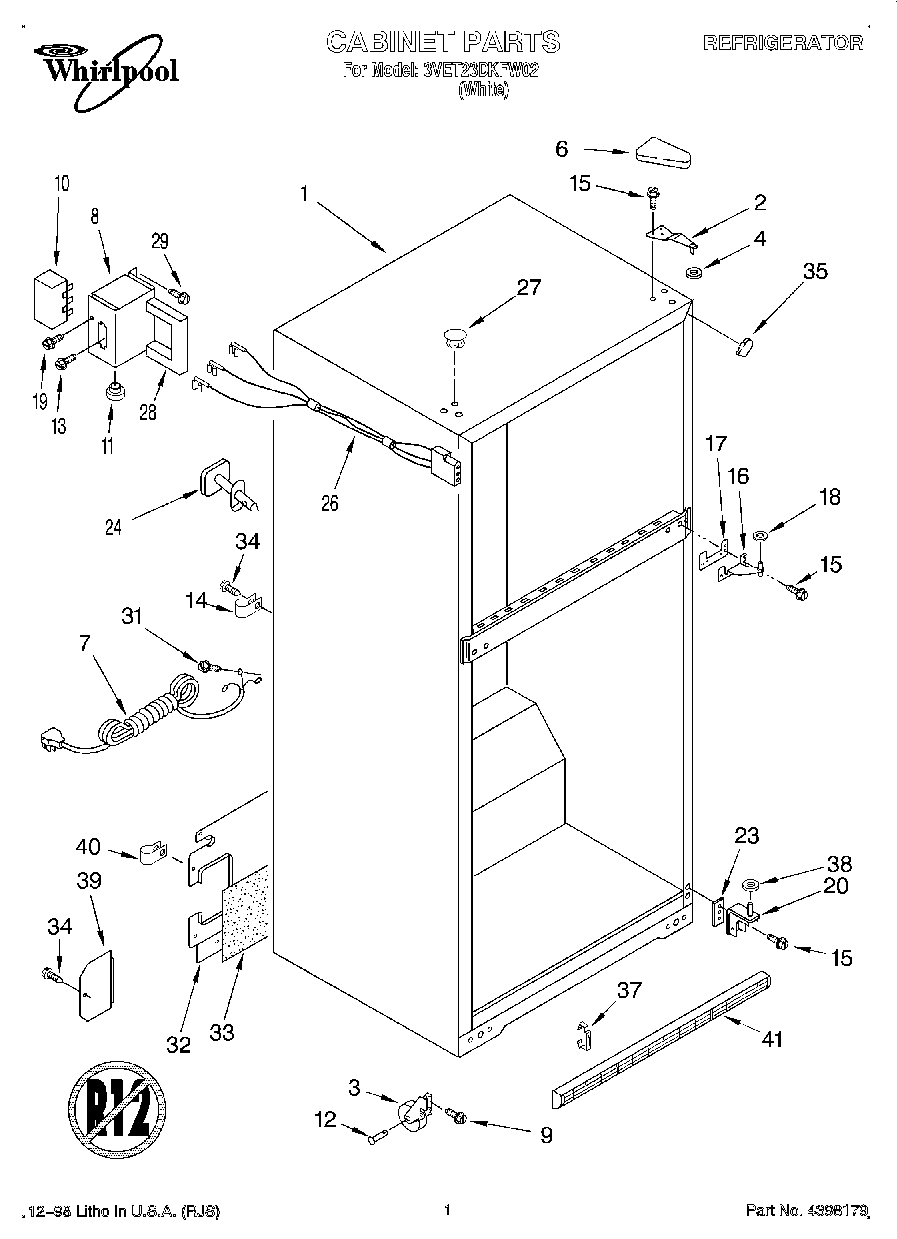

3VET23DKFW02 01 – CABINETadmin2025-04-26T12:24:13+00:003VET23DKFW02 01 – CABINET ProductsPositionProduct1Cabinet (Not A Serviceable Part)2WP2261963 Whirlpool Refrigerator Door Hinge3WP2166108 Whirlpool Refrigerator Cabinet Roller6WP2213360 Whirlpool Refrigerator Cover7Service Cord8Enclosure, Terminal Block9Screw10Terminal Block11Bushing12W11594405 Whirlpool Axle13WPW10272364 Whirlpool Refrigerator Screw14489348 Whirlpool Refrigerator Tube Clamp15WP489497 Whirlpool Screw16WP2254618 Whirlpool Center Door Hinge17WP2183854 Whirlpool Refrigerator Shim18WP489467 Whirlpool Hinge Shim19WP489399 Whirlpool Refrigerator Screw20WP2254473 Whirlpool Refrigerator Door Hinge23Shim, Bottom Hinge24Fitting, Water Tube (Not Serviced)26Wire Assembly27WP2151652 Whirlpool Refrigerator Button Plug28Gasket29WP250830 Whirlpool Refrigerator Screw31WP489442 Whirlpool Refrigerator Screw32Cover, Unit33Insulation34WP489464 Whirlpool Refrigerator Screw35WPW10283959 Whirlpool Refrigerator Filler37CLIP, GRILLE38WP487576 Whirlpool Washer39Cover, Water Valve40WP488366 Whirlpool Refrigerator Clamp41Grille (White)
