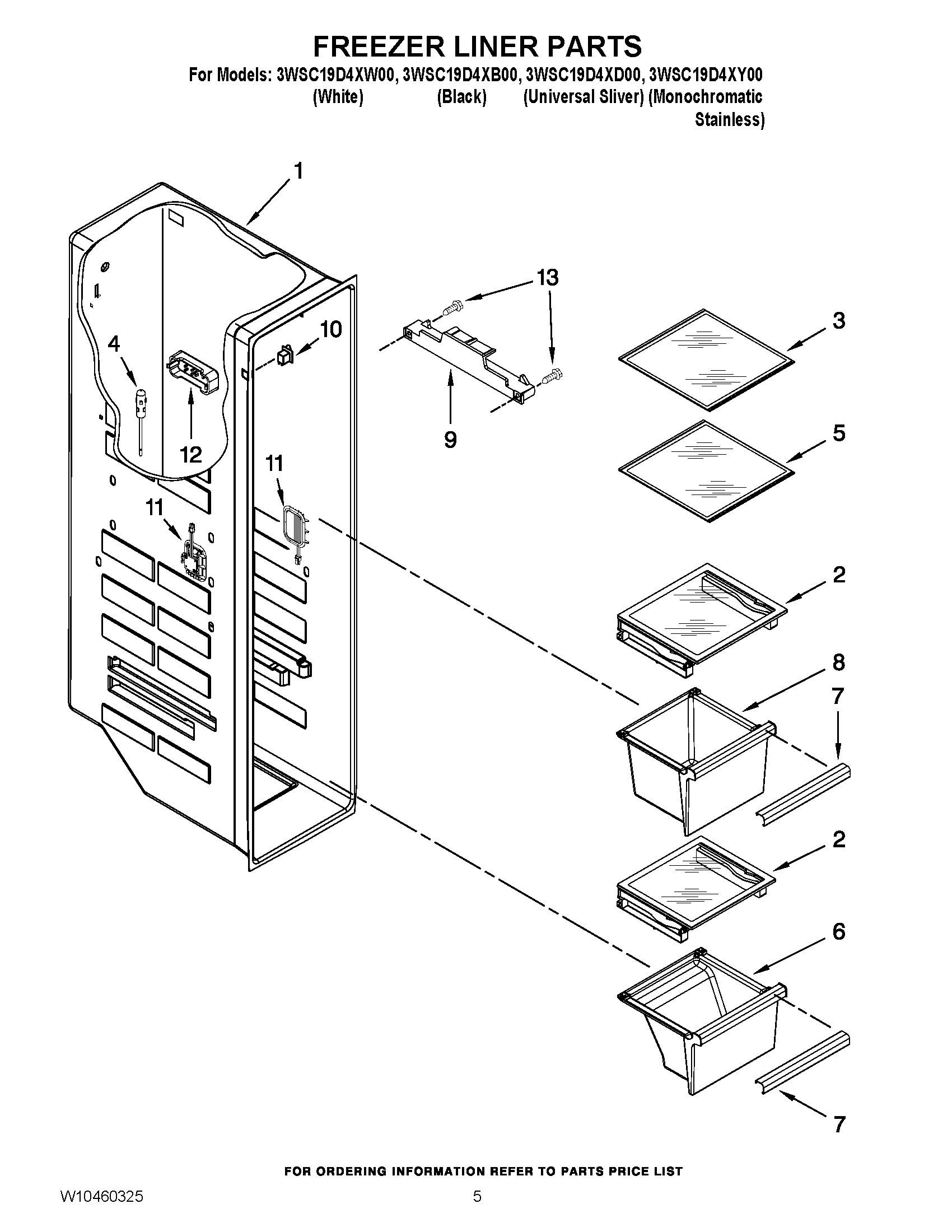

3WSC19D4XB00 04 – FREEZER LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	COVER ASSY
3	WPW10269160 Whirlpool Glass Shelf
4	THERMISTOR
5	WPW10269161 Whirlpool Refrigerator Glass Shelf
6	PAN, FREEZER LOWER (ALSO ORDER 11)
7	TRIM, HANDLE
8	PAN, FREEZER UPPER (ALSO ORDER 9)
9	SLIDE, CONTAINER
10	W11457217 Whirlpool Refrigerator Rocker Switch Combination
11	MODULE
12	W10425253 Whirlpool Refrigerator Cover
13	718257 Whirlpool Dishwasher Screw
